HMMWV 200 AMP Alternator, M996, M996A1, M997, M997A1, M997A2, M1025A2, M1035A2, M1043A2, M1045A2, M1097, M1097A1, M1097A2, and M1123 (NIEHOFF) TM 9-2320-280-24P · Fig. 40

Every part in figure 40 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0601 Generator: Alternator: 53 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

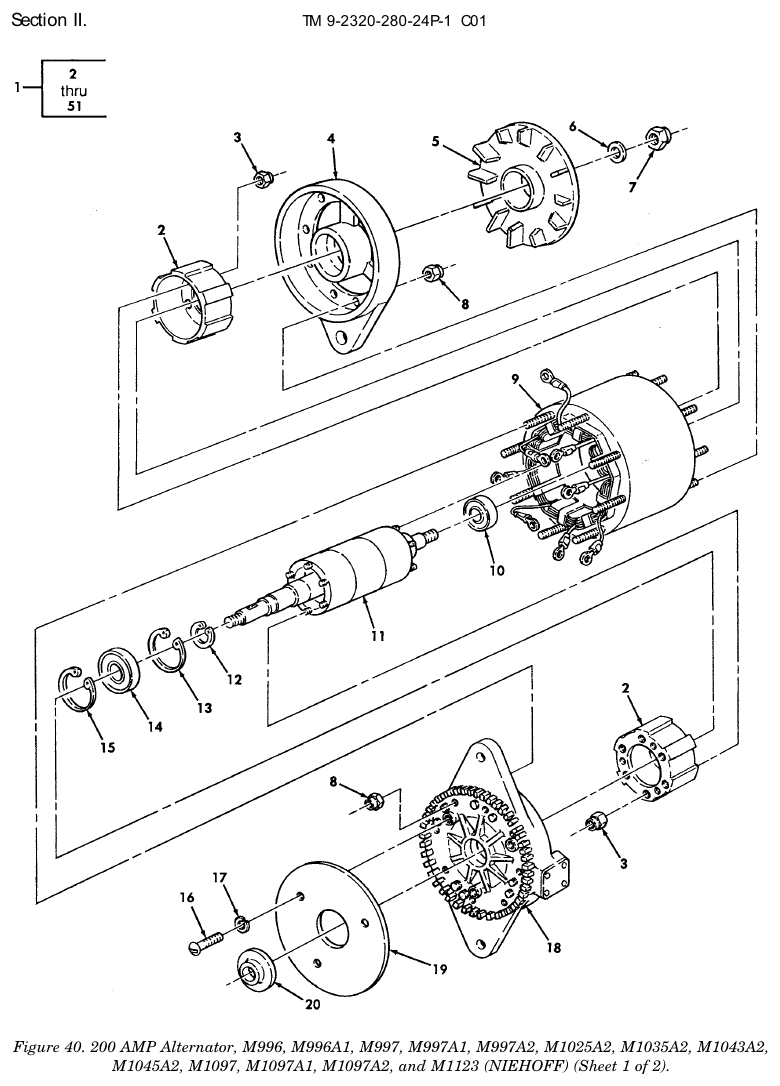

TM 9-2320-280-24P figure 40, 200 AMP Alternator, M996, M996A1, M997, M997A1, M997A2, M1025A2, M1035A2, M1043A2, M1045A2, M1097, M1097A1, M1097A2, and M1123 (NIEHOFF), sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Engine Accessory Generator NSN 2920-01-420-9968 · P/N 12447109 GENERATOR,ENGINE AC Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	80 in stock $1,850.00our price Buy online ↗
2	Rotor Assembly NSN 2920-01-363-5173 · P/N N7312 ROTOR ASSEMBLY Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	2	2 in stock $107.38 per eachgov't list price
3	Nut NSN 5310-01-225-0701 · P/N N9098 NUT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	9	We can source it
4	Housing Assembly P/N N9452 HOUSING ASSEMBLY Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	Ask us
5	Fan Centrifugal Impeller NSN 4140-01-349-5320 · P/N N7309 IMPELLER,FAN,CENTRI Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it $55–$95 eachtypical
6	Flat Washer NSN 5310-01-050-6565 · P/N N9063 WASHER,FLAT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
7	Self-Locking Hexagon Nut NSN 5310-00-044-3340 · P/N 8712289 NUT,SELF-LOCKING,HE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
8	Self-Locking Extended Washer Nut NSN 5310-01-165-1312 · P/N TLNF-0832-S NUT,SELF-LOCKING,EX Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	18	We can source it
9	Shell and Stator P/N N7346 SHELL AND STATOR Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	Ask us
10	Ball Annular Bearing NSN 3110-01-348-4867 · P/N N9385 BEARING,BALL,ANNULA Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it $30–$65 eachtypical
11	Core and Shaft P/N N7347 CORE AND SHAFT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	Ask us
12	Retaining Ring NSN 5325-01-136-7662 · P/N N9260 RING,RETAINING Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
13	Retaining Ring NSN 5325-01-032-4222 · P/N N9008 RING,RETAINING Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	9 in stock
14	Ball Annular Bearing NSN 3110-01-037-4661 · P/N N9010 BEARING,BALL,ANNULA Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it $30–$65 eachtypical
15	Retaining Ring NSN 5325-01-034-2757 · P/N N9009 RING,RETAINING Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
16	Machine Screw NSN 5305-01-032-4165 · P/N N9005 SCREW,MACHINE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	3	We can source it
17	Lock Washer NSN 5310-01-136-4888 · P/N N9265 WASHER,LOCK Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	3	We can source it
18	Housing Assembly Front P/N N7348 HOUSING ASSEMBLY FRONT Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	Ask us
18	Housing Assembly P/N N7434 HOUSING ASSEMBLY Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	Ask us
19	Electrical Shield Plate NSN 5999-01-348-0302 · P/N N9318 PLATE,ELECTRICAL SH Fits: M996, M996A1, M997, M997A1, M1097, M1097A1	1	1,955 in stock $34.29our price Buy online ↗
19	Electrical Generator Cover NSN 2920-01-475-3180 · P/N N9502 COVER,ELECTRICAL GE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it $25–$55 eachtypical
20	Sleeve Bushing NSN 3120-01-348-3364 · P/N N9417 BUSHING,SLEEVE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it $25–$60 eachtypical
21	Dust and Moisture Seal Boot NSN 5340-01-350-1987 · P/N N9464 BOOT,DUST AND MOIST Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	2	79 in stock
22	Plain Cap Nut NSN 5310-01-350-4257 · P/N N9467 NUT,PLAIN,CAP Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
23	Flat Washer NSN 5310-01-350-8549 · P/N N9465 WASHER,FLAT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
24	Machine Bolt NSN 5306-01-348-8310 · P/N N9457 BOLT,MACHINE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
25	Lock Washer NSN 5310-01-348-8393 · P/N N9459 WASHER,LOCK Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
26	Plug Dummy Connector NSN 5935-00-214-0904 · P/N 7982907 DUMMY CONNECTOR,PLU Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	123 in stock
27	Cable Nipple NSN 5975-01-358-0021 · P/N N9500 CABLE NIPPLE,ELECTR Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
28	Plain Hexagon Nut NSN 5310-01-348-8314 · P/N N9453 NUT,PLAIN,HEXAGON Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
29	Lock Washer NSN 5310-01-348-8392 · P/N N9461 WASHER,LOCK Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	923 in stock
30	Flat Washer NSN 5310-01-232-1361 · P/N N9331 WASHER,FLAT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
31	Washer Insulator NSN 5940-01-350-5646 · P/N N9420 INSULATOR,WASHER Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	17 in stock $25–$40 eachtypical
32	Electrical Fuse Link NSN 5920-01-348-0303 · P/N N9414 FUSE LINK,ELECTRICA Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it $25–$40 eachtypical
33	Flat Washer NSN 5310-01-348-8386 · P/N N9408 WASHER,FLAT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
34	Sleeve Spacer NSN 5365-01-348-6971 · P/N N9460 SPACER,SLEEVE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
35	Sleeve Spacer NSN 5365-01-225-0844 · P/N N9269 SPACER,SLEEVE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	3	We can source it
36	Flat Washer NSN 5310-01-348-8385 · P/N N9455 WASHER,FLAT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
37	Lock Washer NSN 5310-01-046-0186 · P/N N9015 WASHER,LOCK Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
38	Plain Hexagon Nut NSN 5310-01-348-8313 · P/N N9426 NUT,PLAIN,HEXAGON Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
39	Machine Bolt NSN 5306-01-223-4345 · P/N N9077 BOLT,SELF-LOCKING Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	3	We can source it
40	Fan Impeller Guard NSN 4140-01-350-0839 · P/N N9338 WASHER,FLAT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	3	221 in stock $61.25our price Buy online ↗
41	Fan Impeller Guard NSN 4140-01-350-0839 · P/N N7370 GUARD,FAN IMPELLER Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	221 in stock $61.25our price Buy online ↗
42	Sleeve Bushing NSN 3120-01-413-6106 · P/N 12342711 BUSHING,SLEEVE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it $25–$40 eachtypical
43	Flat Washer NSN 5310-01-348-8384 · P/N N9393 WASHER,FLAT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
44	Self-Locking Hexagon Nut NSN 5310-01-348-8360 · P/N N9416 NUT,SELF-LOCKING,HE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	3 in stock
45	Woodruff Key NSN 5315-01-348-6880 · P/N N9451 KEY,WOODRUFF Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
46	Engine Generator Regulator NSN 2920-01-483-2291 · P/N N3135 REGULATOR,ENGINE GE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	10 in stock $818.29our price Buy online ↗
47	Flat Washer NSN 5310-01-032-4169 · P/N N9016 WASHER,FLAT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	2	We can source it
48	Spring Tension Washer NSN 5310-01-032-4827 · P/N N9018 WASHER,SPRING TENSI Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	2	We can source it
49	Machine Screw NSN 5305-00-442-7347 · P/N NAS1635-3-12P SCREW,MACHINE Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	2	We can source it
50	Flat Washer NSN 5310-01-042-8391 · P/N 500-1114-003 WASHER,FLAT Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it
51	Plain Octagon Nut NSN 5310-01-348-8398 · P/N N9410 NUT,PLAIN,OCTAGON Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1097, M1097A1 and 1 more	1	We can source it

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
