HMMWV Wiring Harness Channel and Hardware TM 9-2320-280-24P · Fig. 396

Every part in figure 396 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 14 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

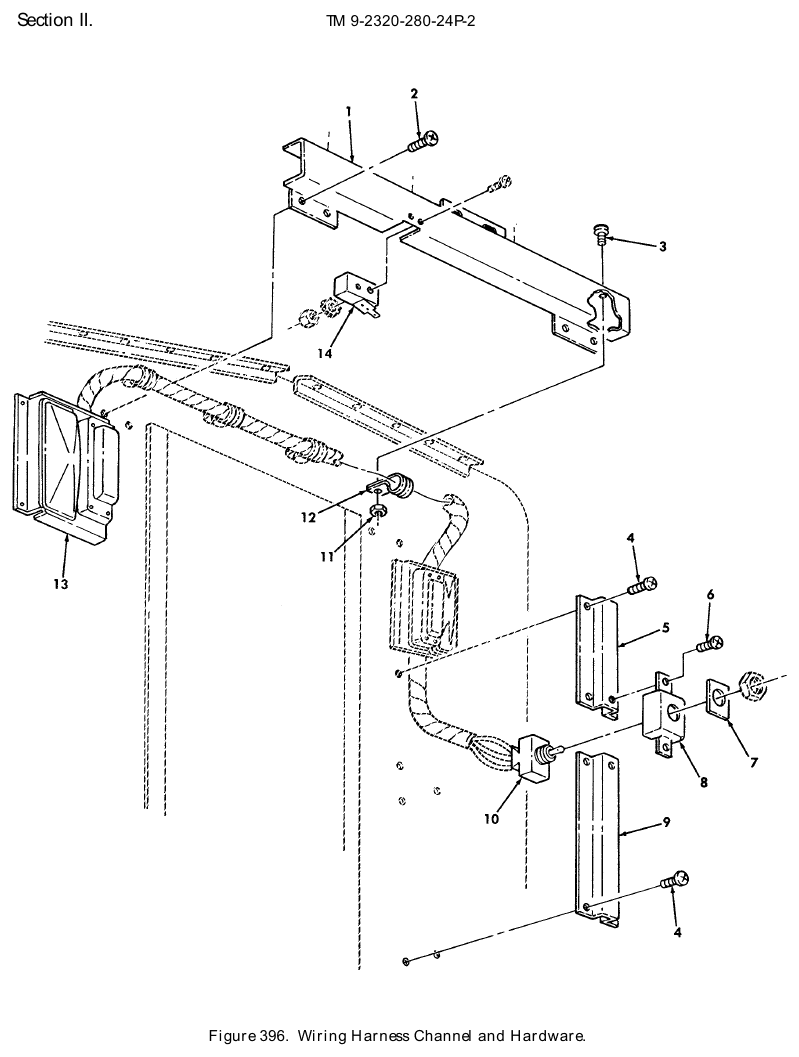

TM 9-2320-280-24P figure 396, Wiring Harness Channel and Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Body Channel NSN 2510-01-317-8258 · P/N 12342214 CHANNEL,BODY PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $172.96 per eachgov't list price
2	Tapping Screw NSN 5305-00-432-4253 · P/N MS51861-67 SCREW,TAPPING 1/4-14 X .75,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	6	100 in stock
3	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE #10-32 X .50,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	We can source it
4	Wood Screw NSN 5305-00-056-7879 · P/N MS35493-74 SCREW,WOOD #10 X .50,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	14	We can source it
5	Lift Vehicle Window Glas Channel NSN 2540-01-317-3350 · P/N 12342199 CHANNEL,LIFT,VEHICL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $55–$95 eachtypical
6	Machine Screw NSN 5305-00-990-6444 · P/N MS35207-261 SCREW,MACHINE #10-32 X .375,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	307 in stock
7	Instruction Plate NSN 9905-01-324-0886 · P/N 12342194 PLATE,INSTRUCTION PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
8	Junction Box NSN 5975-01-322-6373 · P/N 12342198 JUNCTION BOX PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $104.52 per eachgov't list price
9	Lift Vehicle Window Glas Channel NSN 2540-01-316-2697 · P/N 12342200 CHANNEL,LIFT,VEHICL PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $292.31 per eachgov't list price
10	Toggle Switch NSN 5930-00-681-4727 · P/N MS24523-21 SWITCH,TOGGLE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $30–$65 eachtypical
11	Self-Locking Hexagon Nut NSN 5310-00-877-5797 · P/N MS21044N3 NUT,SELF-LOCKING,HE #10-32,PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	364 in stock
12	Loop Clamp NSN 5340-00-764-7051 · P/N MS21333-69 CLAMP,LOOP PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	4	We can source it
13	Vehicular Stop Light-Taillight NSN 6220-01-323-0431 · P/N 12342403 STOP LIGHT-TAILLIGH PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	2	17 in stock $468.03 per eachgov't list price
14	Sensitive Switch NSN 5930-01-266-3919 · P/N 5598011 SWITCH,SENSITIVE PART OF KIT P/N 5705611 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
