Catalog › Parts manuals › TM 9-2320-280-24P › Deep Water Fording Kits › Fig. 400

HMMWV Deep Water Fording Kit, Hydro-Boost Vent Line, Engine and Transmission Dipstick, and Tube Assemblies TM 9-2320-280-24P · Fig. 400

Every part in figure 400 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3305 Deep Water Fording Kits: 15 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

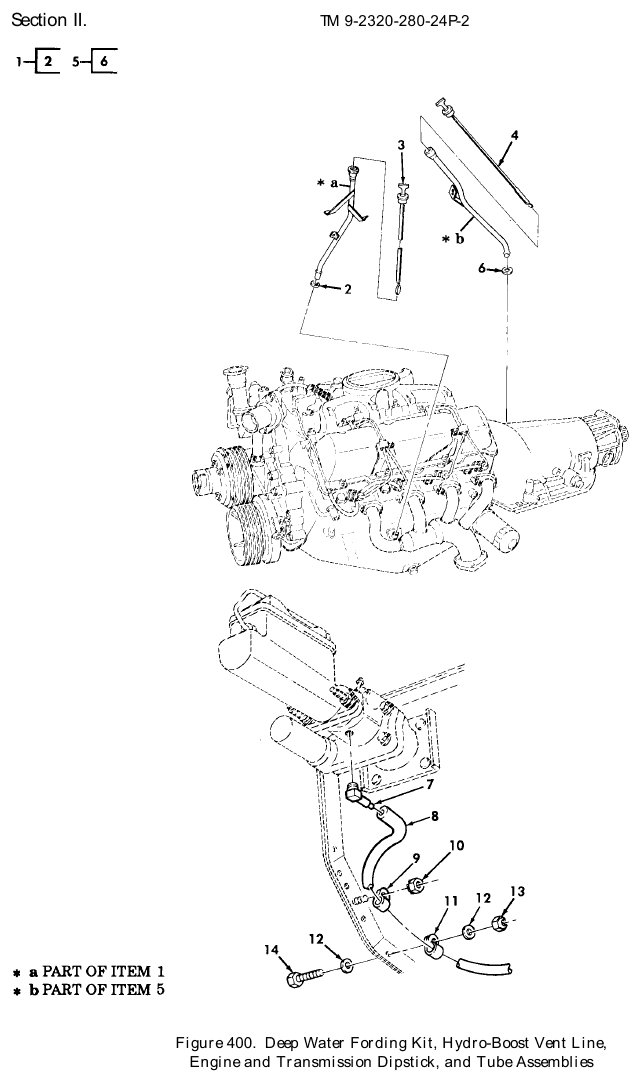

TM 9-2320-280-24P figure 400, Deep Water Fording Kit, Hydro-Boost Vent Line, Engine and Transmission Dipstick, and Tube Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Metal Tube Assembly NSN 4710-01-202-8245 · P/N 12339844 TUBE ASSEMBLY,METAL PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	66 in stock $60–$105 per assemblytypical
2	O-Ring NSN 5331-00-935-9136 · P/N 274244 O-RING Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	64 in stock
3	Liquid Level Gage Rod-Cap NSN 6680-01-185-3202 · P/N 12339846 GAGE ROD-CAP,LIQUID PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	1,514 in stock $35–$70 eachtypical
4	Liquid Level Gage Rod-Cap NSN 6680-01-466-7238 · P/N 12460314 GAGE ROD-CAP,LIQUID Fits: All A2 models except M997A2, plus M1123	1	1 in stock $25–$40 eachtypical
4	Liquid Level Gage Rod-Cap NSN 6680-01-179-4349 · P/N 5582843 GAGE ROD-CAP,LIQUID PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1, plus M1121	1	2 in stock $90–$155 eachtypical
5	Bent Metallic Tube NSN 4710-01-179-4346 · P/N 12339147-2 TUBE,BENT,METALLIC PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	71 in stock $170.32 per assemblygov't list price
6	Preformed Packing NSN 5330-01-184-6492 · P/N 2-113N497-70 PACKING,PREFORMED Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	We can source it
7	Pipe to Hose Elbow NSN 4730-01-195-3803 · P/N 1069X4X1 ELBOW,PIPE TO HOSE PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	340 in stock
8	Tube Make From Tube P/N 5582644 TUBE MAKE FROM TUBE, P/N CPR104420- 1, 20 INCHES LONG PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	Ask us
9	Loop Clamp NSN 5340-00-079-7837 · P/N MS21333-67 CLAMP,LOOP PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	We can source it
10	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	474 in stock
11	Loop Clamp NSN 5340-00-809-1490 · P/N MS21333-98 CLAMP,LOOP PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	514 in stock
12	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	2	351 in stock
13	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 5705693 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	626 in stock
14	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 PART OF KIT P/N 5705693 ADAPTER,STRAIGHT,PI( 1) 399-4 ADAPTER,STRAIGHT,PI( 1) 399-9 BRACKET,MOUNTING ( 1) 398-5 BRACKET,PIPE ( 1) 398-18 BUSHING,NONMETALLIC( 2) 398-20 CAP,FILLER OPENING ( 1) 399-11 CAP,PROTECTIVE,DUST( 1) 398-28 CLAMP,HOSE ( 2) 398-31 CLAMP,HOSE ( 4) 399-16 Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	471 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
