HMMWV A2 Alternator 12 and 24 Volt Positive Battery Cables and Ground Straps TM 9-2320-280-24P · Fig. 41

Every part in figure 41 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0601 Generator: Alternator: 26 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

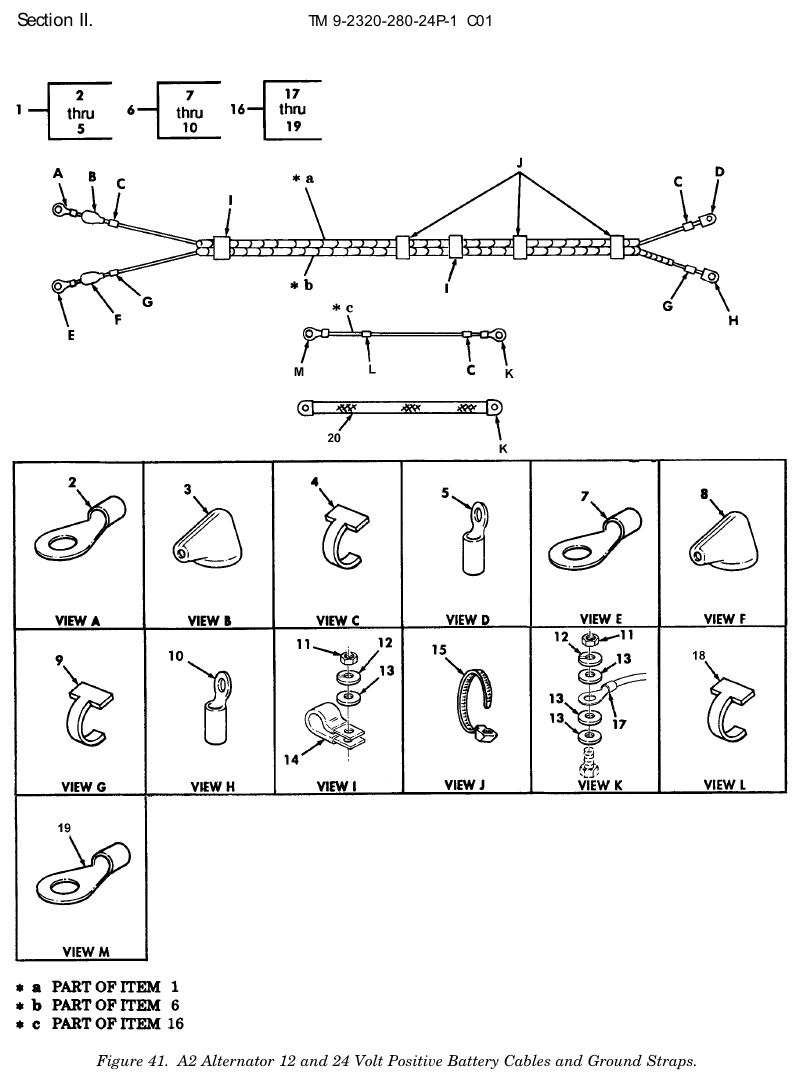

TM 9-2320-280-24P figure 41, A2 Alternator 12 and 24 Volt Positive Battery Cables and Ground Straps: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cable and Conduit a P/N 12446821-5 CABLE AND CONDUIT A 12 VOLT POSITIVE MAKE FROM WIRE,P/N M13486/1-9,102 INCHES LONG Fits: All A2 models, plus M1123	1	Ask us
2	Lug Terminal NSN 5940-00-115-2674 · P/N MS20659-108 TERMINAL,LUG Fits: All A2 models, plus M1123	1	We can source it
3	Dust and Moisture Seal Boot NSN 5340-01-474-2315 · P/N 224N2V14 BOOT,DUST AND MOIST Fits: All A2 models, plus M1123	1	9 in stock
4	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER Fits: All A2 models, plus M1123	2	1 in stock $20.58our price Buy online ↗
5	Lug Terminal NSN 5940-00-114-1314 · P/N MS20659-129 TERMINAL,LUG Fits: All A2 models, plus M1123	1	We can source it
6	Cable and Conduit a P/N 12446821-2 CABLE AND CONDUIT A 24 VOLT POSITIVE 100 AMP,MAKE FROM WIRE,P/N M13486/1- 11,103 INCHES LONG,SERIAL NUMBER 196900 AND BELOW Fits: All A2 models except M997A2, M1097A2	1	Ask us
6	Electrical Lead NSN 3465-00-416-7899 · P/N 11246825 LEAD,ELECTRICAL 24 VOLT POSITIVE 200 AMP Fits: All A2 models, plus M1123	1	We can source it quote only
7	Lug Terminal NSN 5940-00-115-2678 · P/N MS20659-111 TERMINAL,LUG 100 AMP,SERIAL NUMBER 196900 AND BELOW Fits: All A2 models except M997A2, M1097A2	1	We can source it
7	Lug Terminal NSN 5940-00-705-6732 · P/N 3M9449 TERMINAL,LUG 200 AMP Fits: All A2 models, plus M1123	1	18 in stock
8	Dust and Moisture Seal Boot NSN 5340-01-449-6854 · P/N 96909A383-002 BOOT,DUST AND MOIST 100 AMP,SERIAL NUMBER 196900 AND BELOW Fits: All A2 models except M997A2, M1097A2	1	We can source it
8	Cable Nipple NSN 5975-01-208-9619 · P/N 5582481 CABLE NIPPLE,ELECTR 200 AMP Fits: All A2 models, plus M1123	1	We can source it quote only
9	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER Fits: All A2 models, plus M1123	2	1 in stock $20.58our price Buy online ↗
10	Lug Terminal NSN 5940-01-170-4956 · P/N 8689221 TERMINAL,LUG 100 AMP,SERIAL NUMBER 196900 AND BELOW Fits: All A2 models except M997A2, M1097A2	1	We can source it
10	Lug Terminal NSN 5940-00-735-5520 · P/N TG33 TERMINAL,LUG 200 AMP Fits: All A2 models, plus M1123	1	We can source it
11	Plain Hexagon Nut NSN 5310-01-395-8747 · P/N B18241B100F NUT,PLAIN,HEXAGON M10-1.5 Fits: All A2 models, plus M1123	3	98 in stock
12	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK M10 Fits: All A2 models, plus M1123	3	1 in stock
13	Flat Washer NSN 5310-00-080-6004 · P/N D21059-16 WASHER,FLAT M10 Fits: All A2 models, plus M1123	5	1,146 in stock $7.83our price Buy online ↗
14	Loop Clamp NSN 5340-00-702-2848 · P/N MS21333-128 CLAMP,LOOP 100 AMP,SERIAL NUMBER 196900 AND BELOW Fits: All A2 models except M997A2, M1097A2	2	178 in stock
14	Loop Clamp NSN 5340-00-151-9651 · P/N MS21333-129 CLAMP,LOOP 200 AMP Fits: All A2 models, plus M1123	2	We can source it
15	Tie Down Electrical Compon Strap NSN 5975-00-570-9598 · P/N MS3367-7-9 STRAP,TIEDOWN,ELECT 100 AMP,SERIAL NUMBER 196900 AND BELOW Fits: All A2 models except M997A2, M1097A2	3	We can source it
15	Tie Down Electrical Compon Strap NSN 5975-00-570-9598 · P/N MS3367-7-9 STRAP,TIEDOWN,ELECT 200 AMP Fits: All A2 models, plus M1123	2	We can source it
16	Cable Assembly P/N 12446821-1 CABLE ASSEMBLY 100 AMP GROUND,MAKE FROM WIRE,P/N M13486/1-11,11.75 INCHES LONG,SERIAL NUMBER AND 196900 AND BELOW Fits: All A2 models except M997A2, M1097A2	1	Ask us
17	Lug Terminal NSN 5940-00-503-6184 · P/N 8689220 TERMINAL,LUG SERIAL NUMBER 196900 AND BELOW Fits: All A2 models except M997A2, M1097A2	1	We can source it $25–$60 eachtypical
18	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER SERIAL NUMBER 196900 AND BELOW Fits: All A2 models except M997A2, M1097A2	2	1 in stock $20.58our price Buy online ↗
19	Lug Terminal NSN 5940-01-170-4956 · P/N 8689221 TERMINAL,LUG SERIAL NUMBER 196900 AND BELOW Fits: All A2 models except M997A2, M1097A2	1	We can source it
20	Electrical Grounding Strip NSN 5999-01-372-5601 · P/N 12341151 STRIP,ELECTRICAL GR 200 AMP GROUND Fits: All A2 models, plus M1123	1	We can source it
