HMMWV Supplemental Deep Water Fording Kit TM 9-2320-280-24P · Fig. 401

Every part in figure 401 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3305 Deep Water Fording Kits: 19 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

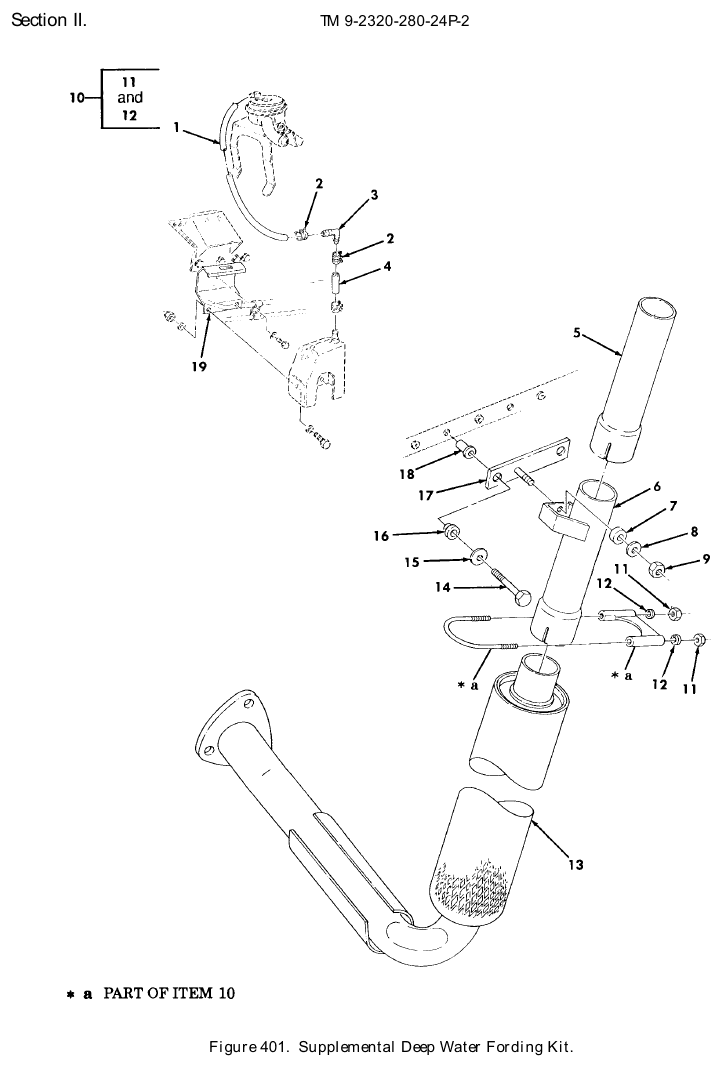

TM 9-2320-280-24P figure 401, Supplemental Deep Water Fording Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Make From Hose Hose P/N 12339981-5 HOSE,NONMETALLIC MAKE FROM HOSE, P/N 4219-3681, 42 INCHES LONG PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	1	Ask us
2	Hose Clamp NSN 4730-00-267-8945 · P/N WW-C-440B TYPE E CLAMP,HOSE PART OF KIT P/N 5705703 1/2 UOC:A15,B15,H15 Fits: All models	2	82 in stock
3	Hose Elbow NSN 4730-01-298-4363 · P/N P4EUB-4 ELBOW,HOSE PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	1	We can source it
4	Nonmetallic Make From Hose Hose P/N 12339981-6 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 4219-3681, 2 INCHES LONG PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	1	Ask us
5	Exhaust Pipe NSN 2990-01-385-8988 · P/N 12342567-2 PIPE,EXHAUST PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	1	18 in stock $127.23 per eachgov't list price
6	Exhaust Pipe NSN 2990-01-382-8796 · P/N 12342566 PIPE,EXHAUST PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	1	We can source it $641.39 per eachgov't list price
7	Sleeve Spacer NSN 5365-01-381-1783 · P/N 12342569 SPACER,SLEEVE PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	1	We can source it $25–$40 eachtypical
8	Flat Washer NSN 5310-00-087-7493 · P/N 330 2000 WASHER,FLAT 5/16 PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	1	We can source it
9	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	1	354 in stock
10	Loop Clamp NSN 5340-01-383-2397 · P/N 12338343-3 CLAMP,LOOP PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	2	We can source it $40–$75 eachtypical
11	Plain Hexagon Nut NSN 5310-00-732-0558 · P/N MS51967-8 NUT,PLAIN,HEXAGON 3/8-16 Fits: M997, M997A1, M997A2	2	398 in stock
12	Lock Washer NSN 5310-00-637-9541 · P/N H2525M WASHER,LOCK 3/8 Fits: M997, M997A1, M997A2	2	1,162 in stock
13	Exhaust Pipe NSN 2990-01-299-8820 · P/N 12342565 PIPE,EXHAUST PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	1	We can source it
14	Cap Hexagon Head Screw NSN 5305-00-071-2236 · P/N MS90725-15 SCREW,CAP,HEXAGON H 1/4-20 X 2.25 PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	2	4 in stock
15	Flat Washer NSN 5310-00-167-0893 · P/N AN8013-2 WASHER,FLAT PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	2	300 in stock
16	Engine Exhaust System Hanger NSN 2990-01-383-5689 · P/N 12341027 HANGER,ENGINE EXHAU PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	2	94 in stock $29.39our price Buy online ↗
17	Mounting Bracket NSN 5340-01-381-2045 · P/N 12342795 BRACKET,MOUNTING PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	1	We can source it $55–$105 eachtypical
18	Plusnut NSN 4931-01-202-8692 · P/N 12339998-13 PLUSNUT PART OF KIT P/N 5705703 Fits: M997, M997A1, M997A2	2	We can source it
19	Retaining Strap NSN 5340-01-381-1266 · P/N 12341641 STRAP,RETAINING PART OF KIT P/N 5705703 Fits: All models	1	We can source it $45–$90 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
