HMMWV Kit, 60, 100, and 200 AMP Alternator Mounting Hardware TM 9-2320-280-24P · Fig. 42

Every part in figure 42 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0601 Generator: Alternator: 15 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

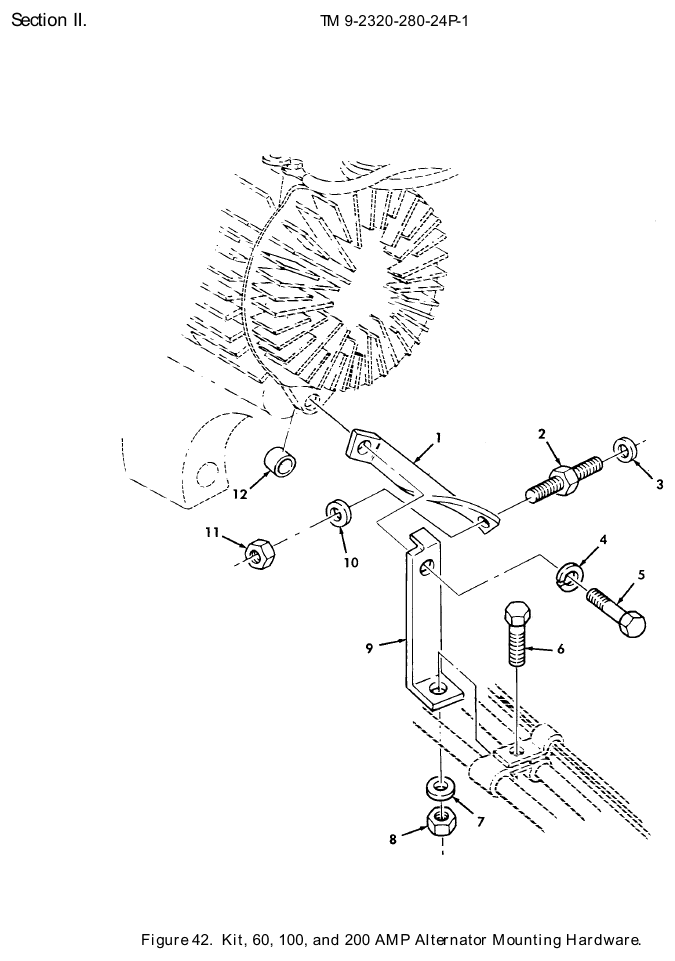

TM 9-2320-280-24P figure 42, Kit, 60, 100, and 200 AMP Alternator Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mounting Bracket NSN 5340-01-293-0125 · P/N 5935091 BRACKET,MOUNTING PART OF KIT P/N 57K0109 Fits: All A0 models except M996, M997, M1097, plus M1121	1	9 in stock $25–$40 eachtypical
1	Mounting Bracket NSN 5340-01-292-8404 · P/N 5935092 BRACKET,MOUNTING PART OF KIT P/N 5742041 Fits: M996, M997	1	We can source it quote only $25–$55 eachtypical
2	Shouldered Stud NSN 5307-01-315-3597 · P/N 12339406-3 STUD,SHOULDERED PART OF KIT P/N 57K0109 PART OF KIT P/N 5742041 Fits: All A0 models except M1097, plus M1121	1	298 in stock $25–$55 eachtypical
3	Flat Washer NSN 5310-01-251-0747 · P/N 5593260 WASHER,FLAT 10 MM PART OF KIT P/N 57K0109 PART OF KIT P/N 5742041 Fits: All A0 models except M1097, plus M1121	1	We can source it
4	Lock Washer NSN 5310-00-209-0965 · P/N MS35338-47 WASHER,LOCK 7/16 PART OF KIT P/N 57K0109 PART OF KIT P/N 5742041 Fits: All A0 models except M1097, plus M1121	1	2,764 in stock
5	Cap Hexagon Head Screw NSN 5305-00-071-2059 · P/N B1821BH044C250N SCREW,CAP,HEXAGON H 7/16-14 X 2.50 PART OF KIT P/N 5742041 Fits: M996, M997	1	100 in stock
5	Cap Hexagon Head Screw NSN 5305-00-071-2057 · P/N B1821BH044C200N SCREW,CAP,HEXAGON H 7/16-14 X 2.00 PART OF KIT P/N 57K0109 Fits: All A0 models except M996, M997, M1097, plus M1121	1	We can source it
6	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 PART OF KIT P/N 57K0109 PART OF KIT P/N 5742041 Fits: All A0 models except M1097, plus M1121	1	559 in stock
7	Flat Washer NSN 5310-00-809-4058 · P/N A22506-4 WASHER,FLAT 1/4 PART OF KIT P/N 57K0109 PART OF KIT P/N 5742041 Fits: All A0 models except M1097, plus M1121	1	2,325 in stock
8	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 57K0109 PART OF KIT P/N 5742041 Fits: All A0 models except M1097, plus M1121	1	626 in stock
9	Double Angle Bracket NSN 5340-01-292-5402 · P/N 5935093 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K0109 PART OF KIT P/N 5742041 Fits: All A0 models except M1097, plus M1121	1	6 in stock
10	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK 10 MM PART OF KIT P/N 57K0109 PART OF KIT P/N 5742041 Fits: All A0 models except M1097, plus M1121	1	1 in stock
11	Plain Hexagon Nut NSN 5310-01-366-3539 · P/N B18241B100F NUT,PLAIN,HEXAGON 10MM X 1.5 PART OF KIT P/N 57K0109 PART OF KIT P/N 5742041 Fits: All A0 models except M1097, plus M1121	1	We can source it
12	Flat Washer NSN 5310-01-292-5354 · P/N 12338186-20 WASHER,FLAT PART OF KIT P/N 57K0109 Fits: All A0 models except M996, M997, M1097, plus M1121	1	We can source it
12	Flat Washer NSN 5310-01-337-7034 · P/N 12338186-62 WASHER,FLAT PART OF KIT P/N 5742041 Fits: M996, M997	1	23 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
