HMMWV Communications Kit, Radio Cables, AN/VRC-49 and (2) TSEC/KY-57 Assemblies TM 9-2320-280-24P · Fig. 416

Every part in figure 416 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 30 lines, 27 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

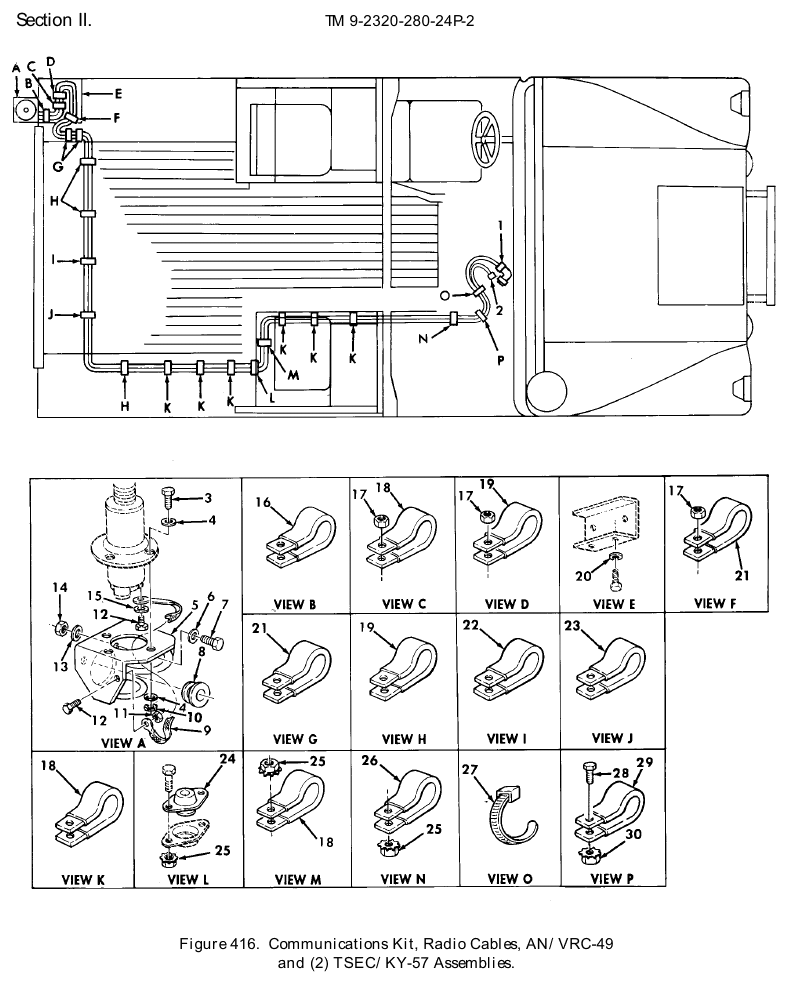

TM 9-2320-280-24P figure 416, Communications Kit, Radio Cables, AN/VRC-49 and (2) TSEC/KY-57 Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Special Purpose E Cable Assembly NSN 5995-01-251-6785 · P/N 12338089-4 CABLE ASSEMBLY,SPEC PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	9 in stock quote only $427.49 per eachgov't list price
2	Radio Frequency Cable Assembly NSN 5995-01-251-9316 · P/N 12338086-4 CABLE ASSEMBLT,RADI PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $101.29 per eachgov't list price
3	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 3/8-16 X 2.00, PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	471 in stock
4	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8,PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	8	6 in stock
5	Mounting Bracket NSN 5340-01-197-5470 · P/N 12340364 BRACKET,ANTENNA PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	1,264 in stock $60.00our price Buy online ↗
6	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16,PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	3	471 in stock
7	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00,PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	3	276 in stock
8	Nonmetallic Grommet NSN 5325-01-208-5424 · P/N 12338098 GROMMET,NONMETALLIC PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	15 in stock
9	Electrical Lead NSN 6150-01-207-8120 · P/N 12338099-1 LEAD,ELECTRICAL PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	1 in stock
10	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16,PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	219 in stock
11	Lock Nut NSN 5310-00-251-4503 · P/N 9411893 NUT,SELF-LOCKING,HE #10-32,PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	40 in stock
12	Machine Screw NSN 5305-00-059-3659 · P/N MS51958-63 SCREW,MACHINE #10-32 X .50,PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	169 in stock
13	Flat Washer NSN 5310-01-208-7576 · P/N 12338095 WASHER,FLAT 5/16,PART OF KIT P/M PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	3	1 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18,PART OF KIT P/N PPL-10323 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	3	354 in stock
15	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10,PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	709 in stock
16	Loop Clamp NSN 5340-00-854-6730 · P/N MS21333-124 CLAMP,LOOP PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	800 in stock
17	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,SELF-LOCKING,HE PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	3	474 in stock
18	Loop Clamp NSN 5340-00-057-2906 · P/N MS21333-73 CLAMP,LOOP PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	8	35 in stock
19	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	12 in stock
20	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4,PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	4,285 in stock
21	Loop Clamp NSN 5340-00-724-7038 · P/N MS21333-76 CLAMP,LOOP PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	3	We can source it
22	Loop Clamp NSN 5340-00-958-8457 · P/N MS21333-78 CLAMP,LOOP PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	13 in stock
23	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP PART OF KIT P/N PPL10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	787 in stock
24	Nonmetallic Grommet NSN 5325-01-255-5063 · P/N 12340631 GROMMET,NONMETALLIC PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	2 in stock
25	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 5592818 NUT,SELF-LOCKING,HE 1/4-20,PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	570 in stock
26	Loop Clamp NSN 5340-00-088-1254 · P/N MS21333-104 CLAMP,LOOP PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	40 in stock
27	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N PPL-10324 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	198 in stock
28	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it
29	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	787 in stock
30	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED ASSEMBLY,AN/VRC-49 RADIO AND TSCE/ KY-57 ASSEMBLIES BOLT,MACHINE ( 10) 415-1 BOLT,MACHINE ( 4) 415-5 BOLT,MACHINE ( 4) 415-6 BOLT,MACHINE ( 3) 416-7 BOLT,SELF-LOCKING ( 2) 415-10 BRACKET,ANGLE ( 1) 415-8 BRACKET,ANTENNA ( 1) 416-5 BRACKET,HEAD PHONE ( 1) 415-17 BRACKE Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	474 in stock
