HMMWV Generator Assembly (60 AMP) TM 9-2320-280-24P · Fig. 43

Every part in figure 43 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0601 Generator: Alternator: 60 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

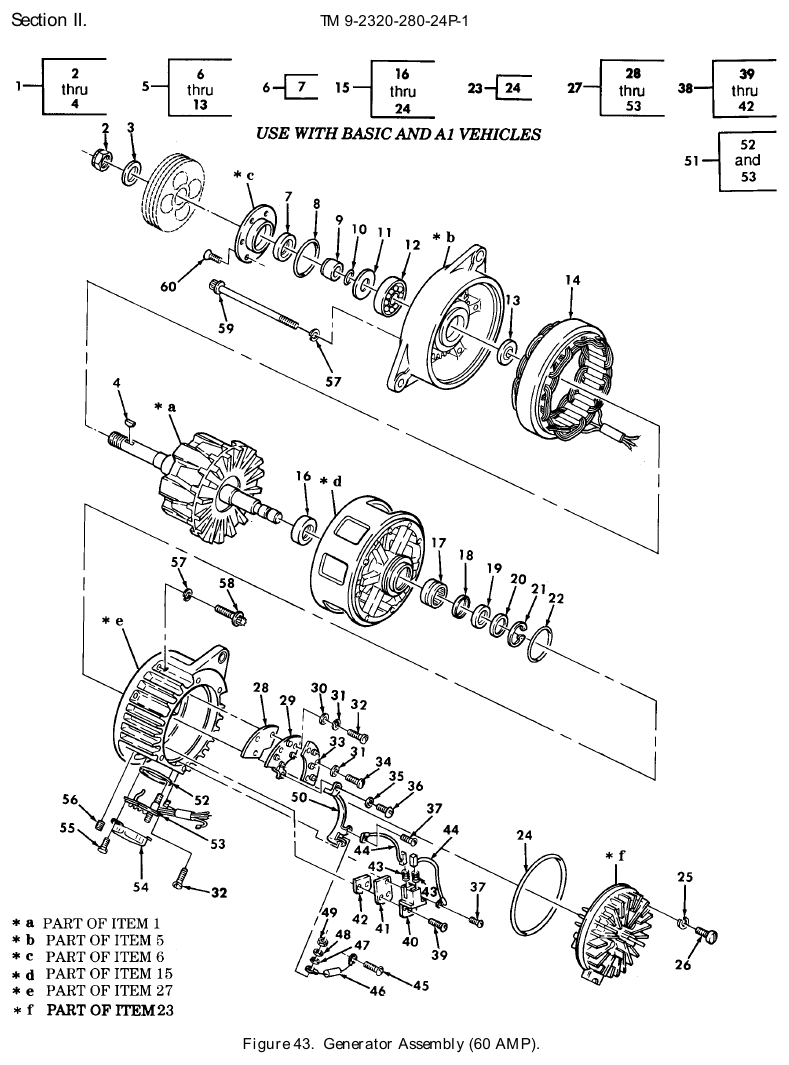

TM 9-2320-280-24P figure 43, Generator Assembly (60 AMP): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Generator Rotor NSN 2920-01-244-4993 · P/N 8MA-3010AS ROTOR,GENERATOR Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	989 in stock $232.93 per eachgov't list price
2	Nut P/N AMA-75 NUT 5/8 X 12 PART OF KIT P/N 90- 2188 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
3	Flat Washer P/N AMA-74 WASHER,FLAT PART OF KIT P/N 90-2188 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
4	Woodruff Key NSN 5315-00-616-5514 · P/N MS35756-6 KEY,WOODRUFF PART OF KIT P/N 90- 2188 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1,992 in stock
5	Electrical Rotating Equ End Bell NSN 2920-01-248-2509 · P/N 14-273 END BELL,ELECTRICAL Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	24 in stock $298.26 per eachgov't list price
6	Retainer Assembly P/N AMA-1014A RETAINER ASSEMBLY PART OF KIT P/N 90-2531 Fits: All A0 models except M996, M997, M1097; all A1 models except M1044A1, M1046A1, M1097A1, plus M1121	1	Ask us
7	Seal Kit P/N XA-1316 SEAL KIT PART OF KIT P/N 90-2531 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
8	Spring Seal Bearing P/N XA-744AV SPRING SEAL BEARING PART OF KIT P/N 90-2531 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
9	Spacer P/N AMA-66A SPACER PART OF KIT P/N 90-2531 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
10	O-Ring P/N XA-744AY O-RING .726 O.D. PART OF KIT P/N 90-2531 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
11	Washer P/N AMA-90 WASHER PART OF KIT P/N 90-2531 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
12	Ball Bearing P/N X-4070 BEARING,BALL PART OF KIT P/N 90- 2531 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
13	Seal Kit P/N XA-1316 SEAL KIT PART OF KIT P/N 90-2531 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
14	Stator Assembly P/N AMA-3008 STATOR ASSEMBLY Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
15	End Head P/N AMA-5AS END HEAD PART OF KIT P/N 90-2531 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
16	Seal P/N XA-1317 SEAL PART OF KIT P/N 90-2532 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
17	Outer Bearing P/N X-4071 BEARING,OUTER PART OF KIT P/N 90- 2532 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
18	Felt Retainer P/N AMA-50 RETAINER,FELT PART OF KIT P/N 90- 2532 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
19	Felt Washer P/N X-4059 WASHER,FELT PART OF KIT P/N 90-2532 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
20	Felt Retainer P/N AMA-49 RETAINER,FELT PART OF KIT P/N 90- 2532 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
21	Bearing Retainer P/N X-4328 RETAINER,BEARING PART OF KIT P/N 90 -2532 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
22	O-Ring P/N XA-744AV O-RING PART OF KIT P/N 90-2532 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
23	Engine Generator Regul Parts Kit NSN 2920-01-180-8666 · P/N AMA2004AS PARTS KIT,ENGINE GE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	58 in stock $244.10 per kitgov't list price
24	Ring Seal Bearing P/N XA-744AW RING SEAL BEARING PART OF KIT P/N 90-2532 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
25	Lock Washer P/N 12X-195 WASHER,LOCK #8 PART OF KIT P/N 90- 2187 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	6	Ask us
26	Tapping Screw NSN 5305-01-429-9137 · P/N 20X-4383 SCREW,TAPPING #8-32 X 1/2 PART OF KIT P/N 90-2187 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	6	We can source it
27	Generator Parts Kit NSN 2920-01-168-4131 · P/N 12-333 PARTS KIT,GENERATOR Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	13 in stock $196.71 per kitgov't list price
28	Plate Insulator NSN 5970-01-238-0146 · P/N AMA-0045 INSULATOR,PLATE PART OF KIT P/N AMA -1046AS Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
29	Rectifier P/N AMA-1046A RECTIFIER,HEAT POSITIVE PART OF KIT P/N AMA-1046AS Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
30	Flat Washer NSN 5310-01-214-7785 · P/N VSF-16 WASHER,FLAT #6 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	3	We can source it
31	Flat Washer NSN 5310-01-303-4701 · P/N MS51412-1 WASHER,FLAT #6 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	6	We can source it
32	Assembled Washer Screw NSN 5305-01-215-3985 · P/N 9419836 SCREW,ASSEMBLED WAS #6-32 X 3/8 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	7	We can source it
33	Engine Generator Parts Kit NSN 2920-01-168-4132 · P/N AMA-1042AS PARTS KIT,ENGINE GE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	42 in stock $25–$55 per kittypical
34	Machine Screw NSN 5305-00-889-3000 · P/N MS35206-230 SCREW,MACHINE #6-32 X 1/2 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	3	259 in stock
35	Lock Washer P/N 12X-196 WASHER,LOCK #10 PART OF KIT P/N 90 -2187 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
36	Machine Screw NSN 5305-00-990-6444 · P/N MS35207-261 SCREW,MACHINE #10-32 X 3/8 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	307 in stock
37	Machine Screw NSN 5305-00-993-0190 · P/N MS35206-214 SCREW,MACHINE #4-40 X 5/16 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	700 in stock
38	Engine Generator Parts Kit NSN 2920-01-205-8653 · P/N AMA-1015AS PARTS KIT,ENGINE GE Fits: All A0 models except M996, M997, M1097, plus M966A1, M998A1, M1025A1, M1026A1, M1035A1, M1038A1 and 4 more	2	20 in stock $35–$70 eachtypical
39	Machine Screw NSN 5305-00-889-3001 · P/N MS35206-231 SCREW,MACHINE #6-32 X 5/8 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	800 in stock
40	Holder P/N AMA-1015SS HOLDER,ELECTRICAL C PART OF KIT P/N 90-2187 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
41	Plate Insulator NSN 5970-01-217-4566 · P/N AMA-48 INSULATOR,PLATE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $186.12 per eachgov't list price
42	Plate Insulator NSN 5970-01-214-7806 · P/N AMA-1026AS INSULATOR,PLATE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	90 in stock $80–$140 eachtypical
43	Spring P/N AMA-19 SPRING PART OF KIT P/N AMA-19S Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	Ask us
44	Brush P/N AMA-12 BRUSH PART OF KIT P/N 01-05479 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	Ask us
45	Tapping Screw NSN 5305-01-076-6308 · P/N MS51863-22 SCREW,TAPPING #6-32 X 3/8 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
46	Fixed Plastic Dielectr Capacitor NSN 5910-01-218-1675 · P/N AMA1096 CAPACITOR,FIXED,PLA Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $25–$55 eachtypical
47	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	351 in stock
48	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 1/4 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1,162 in stock
49	Plain Hexagon Nut NSN 5310-00-768-0319 · P/N MS51968-2 NUT,PLAIN,HEXAGON 1/4-28 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	508 in stock
50	Output Generator Strap NSN 2920-01-212-5816 · P/N AMA-95 STRAP,OUTPUT,GENERA Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	33 in stock
51	Plate P/N AMA-2028BS PLATE,WIRING HARNES Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
52	Preformed Packing NSN 5330-01-215-5124 · P/N AMA-2028B5 PACKING,PREFORMED Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
53	Wiring Harness Plate NSN 2920-01-212-5817 · P/N AMA-2028BS PLATE,WIRING HARNES Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	284 in stock $31.85our price Buy online ↗
54	Generator Parts Kit NSN 2920-01-168-4127 · P/N 35-762 PARTS KIT,GENERATOR Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	167 in stock
55	Assembled Washer Screw NSN 5305-00-638-0714 · P/N 6-32 1-4 SCREW,ASSEMBLED WAS #6-32 X 1/4 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	125 in stock
56	Plug Yoke Adjusting P/N 20X-4222 PLUG YOKE ADJUSTING PART OF KIT P/N 90-2187 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
57	Lock Washer P/N 12X-196 WASHER,LOCK PART OF KIT P/N 90-2187 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	12	Ask us
58	Torx Screw P/N 20X-4063 SCREW,TORX #10-24 X 1.00 PART OF KIT P/N 90-2187 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	6	Ask us
59	Thru Torx Bolt P/N AMA-20 BOLT,THRU,TORX PART OF KIT P/N 90- 2187 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	6	Ask us
60	Flat Head Screw P/N 20X-4061 SCREW,FLAT HEAD PART OF KIT P/N 90- 2187 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	6	Ask us

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
