HMMWV Communications Kit, Radio Cable, Main Power TM 9-2320-280-24P · Fig. 424

Every part in figure 424 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 7 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

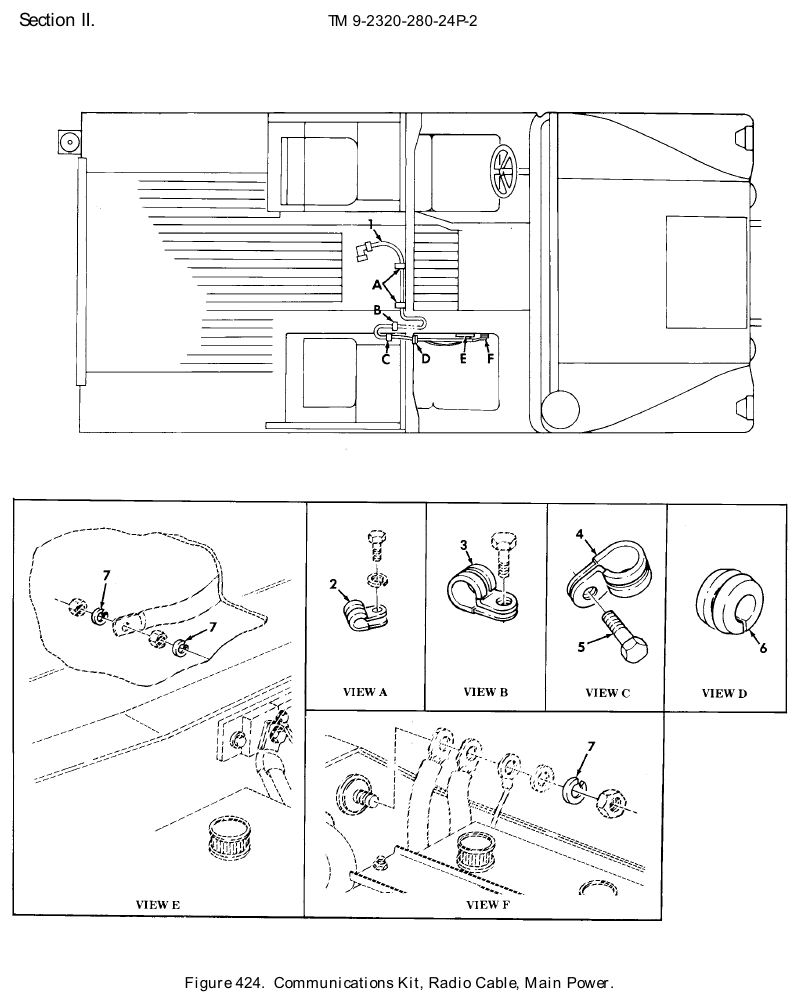

TM 9-2320-280-24P figure 424, Communications Kit, Radio Cable, Main Power: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Power Electrical Cable Assembly NSN 6150-01-289-4761 · P/N 5597136-C CABLE ASSEMBLY,POWE PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it $287.34 per eachgov't list price
2	Loop Clamp NSN 5340-00-057-3043 · P/N MS21333-112 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	6,753 in stock
3	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	787 in stock
4	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	19 in stock
5	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X 3/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	1,205 in stock
6	Nonmetallic Grommet NSN 5325-00-285-8363 · P/N MS35489-45 GROMMET,NONMETALLIC PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
7	Lock Washer NSN 5310-00-584-5272 · P/N MS35338-48 WASHER,LOCK 1/2 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	833 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
