HMMWV Alternator, 100 AMP (PRESTOLITE) TM 9-2320-280-24P · Fig. 43A

Every part in figure 43A of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0601 Generator: Alternator: 35 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

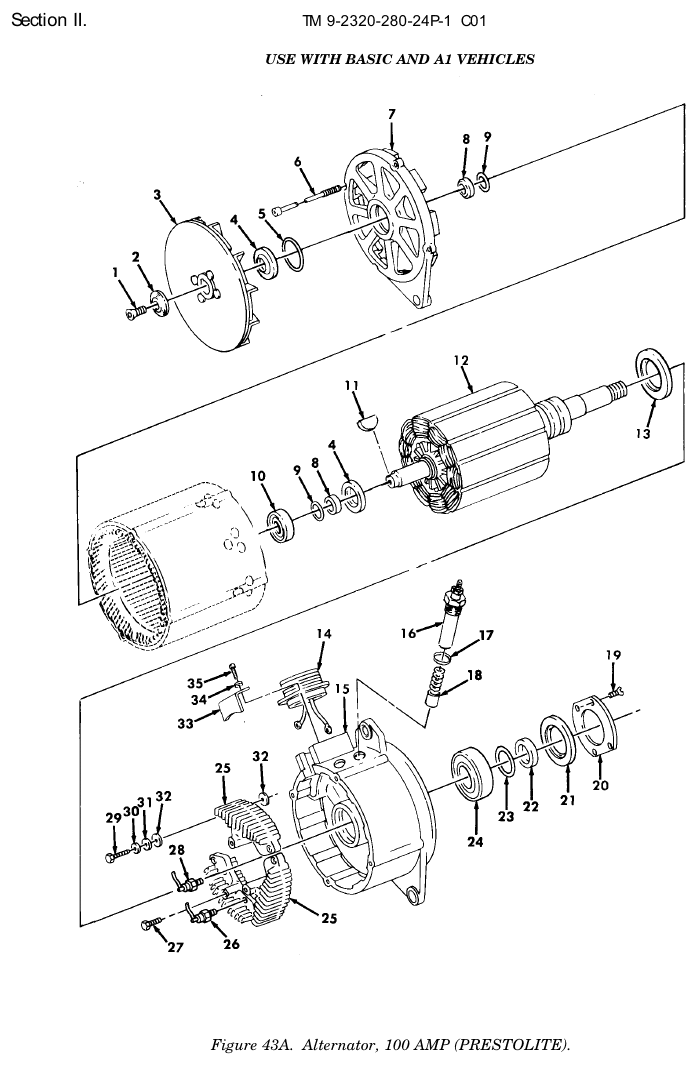

TM 9-2320-280-24P figure 43A, Alternator, 100 AMP (PRESTOLITE): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Socket Head Screw NSN 5305-00-434-4811 · P/N 60253 SCREW,CAP,SOCKET HE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $114.67 per eachgov't list price
2	Washer NSN 5310-01-081-0469 · P/N 71122 WASHER Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $75–$125 eachtypical
3	Alternator Fan and Hub Assembly NSN 2920-00-114-2942 · P/N A041071121 FAN AND HUB ASSEMBL Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	2 in stock $50–$85 eachtypical
4	Single Lip Seal P/N 11646898 SEAL,SINGLE LIP PART OF KIT P/N 5703776-1 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	Ask us
5	O-Ring NSN 5331-00-052-5267 · P/N MS9068-030 PACKING,PREFORMED PART OF KIT P/N 5703776-1 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
6	Cap Socket Head Screw NSN 5305-01-080-9109 · P/N Z1110-74821 SCREW,CAP,SOCKET HE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	4	We can source it $30–$65 eachtypical
7	Electrical Rotating Equ End Bell NSN 2920-00-228-3402 · P/N 71117 END BELL,ELECTRICAL Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	68 in stock $163.82 per eachgov't list price
8	Sleeve Spacer NSN 5365-00-143-9854 · P/N 71125 SPACER,SLEEVE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	We can source it $25–$50 eachtypical
9	Preformed Packing P/N 11646803 PACKING,PREFORMED PART OF KIT P/N 5703776-1 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	Ask us
10	Ball Annular Bearing NSN 3110-00-343-4474 · P/N 11646902 BEARING,BALL,ANNULA Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	3 in stock $25–$55 eachtypical
11	Machine Key NSN 5315-00-069-8996 · P/N 60249 KEY,MACHINE 5/32-1/4 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
12	Generator Rotor NSN 2920-00-160-9346 · P/N 71127 ROTOR,GENERATOR 43A-1 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	8 in stock $831.86 per eachgov't list price
13	Single Lip Seal P/N 11646896 SEAL,SINGLE LIP PART OF KIT P/N 5703776-1 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
14	Alterna Connector NSN 2920-01-251-5488 · P/N 95962 CONNECTOR,ALTERNA Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1 in stock $40–$75 eachtypical
15	End Bell P/N 75824 END BELL,ELECTRICAL Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
16	Brush a Holder and Stud Assembly NSN 2920-00-900-8163 · P/N 71116 HOLDER AND STUD ASS PART OF KIT P/N 5703776-1 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	1,032 in stock
17	Preformed Packing NSN 5330-00-823-4881 · P/N 60198 PACKING,PREFORMED Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	We can source it
18	Electrical Contact Brush NSN 5977-01-082-3613 · P/N 11646900 BRUSH,ELECTRICAL CO PART OF KIT P/N 5703776-1 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	1 in stock $55–$90 eachtypical
19	Machine Screw NSN 5305-00-601-7729 · P/N 4465 SCREW,MACHINE #10-32 X 1/2 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	4	We can source it $25–$55 eachtypical
20	Retaining Bearing Plate NSN 3110-00-451-1534 · P/N 59234 PLATE,RETAINING,BEA Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $30–$65 eachtypical
21	Single Lip Seal P/N 11646899 SEAL,SINGLE LIP PART OF KIT P/N 5703776-1 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
22	Ring Spacer NSN 5365-00-165-7862 · P/N 71126 SPACER,RING Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	33 in stock
23	Preformed Packing P/N 11646804 PACKING,PREFORMED PART OF KIT P/N 5703776-1 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
24	Ball Annular Bearing NSN 3110-00-343-4477 · P/N 11646897 BEARING,BALL,ANNULA 43A-2 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	4 in stock $50–$95 eachtypical
25	Semiconductor Device Rectifier NSN 5961-01-260-5135 · P/N A051074806 RECTIFIER,SEMICONDU Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	3	We can source it $143.85 per eachgov't list price
26	Alte Rectifier and Lead Assembly NSN 2920-00-114-2945 · P/N 11646901 RECTIFIER AND LEAD PART OF KIT P/N 5703776 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	3	76 in stock $25–$50 eachtypical
27	Assembled Washer Bolt NSN 5306-01-152-4849 · P/N 075884 BOLT,ASSEMBLED WASH 1/4-28 X 1/2 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	3	We can source it
28	Alte Rectifier and Lead Assembly NSN 2920-00-114-3370 · P/N 74808 RECTIFIER AND LEAD PART OF KIT P/N 5703776 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	3	5 in stock $35–$65 eachtypical
29	Cap Socket Head Screw NSN 5305-01-254-2511 · P/N 96470 SCREW,CAP,SOCKET HE #10-32 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	6	We can source it $25–$45 eachtypical
30	Flat Washer NSN 5310-00-482-1999 · P/N 36900 WASHER,LOCK Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	6	We can source it
31	Lock Washer NSN 5310-01-162-9661 · P/N 36896 WASHER,LOCK #10 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	6	We can source it
32	Washer Insulator NSN 5970-01-253-5134 · P/N 96471 INSULATOR,WASHER Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	12	18 in stock $25–$45 eachtypical
33	Terminal Cover NSN 2920-00-653-9025 · P/N 36196 COVER,TERMINAL Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	10 in stock
34	Lock Washer NSN 5310-00-045-3299 · P/N MS35338-42 WASHER,LOCK Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	4	84 in stock
35	Machine Screw NSN 5305-01-078-8929 · P/N 2295 SCREW,MACHINE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	4	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
