HMMWV Cargo Barrier Extension Kit TM 9-2320-280-24P · Fig. 433

Every part in figure 433 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 11 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

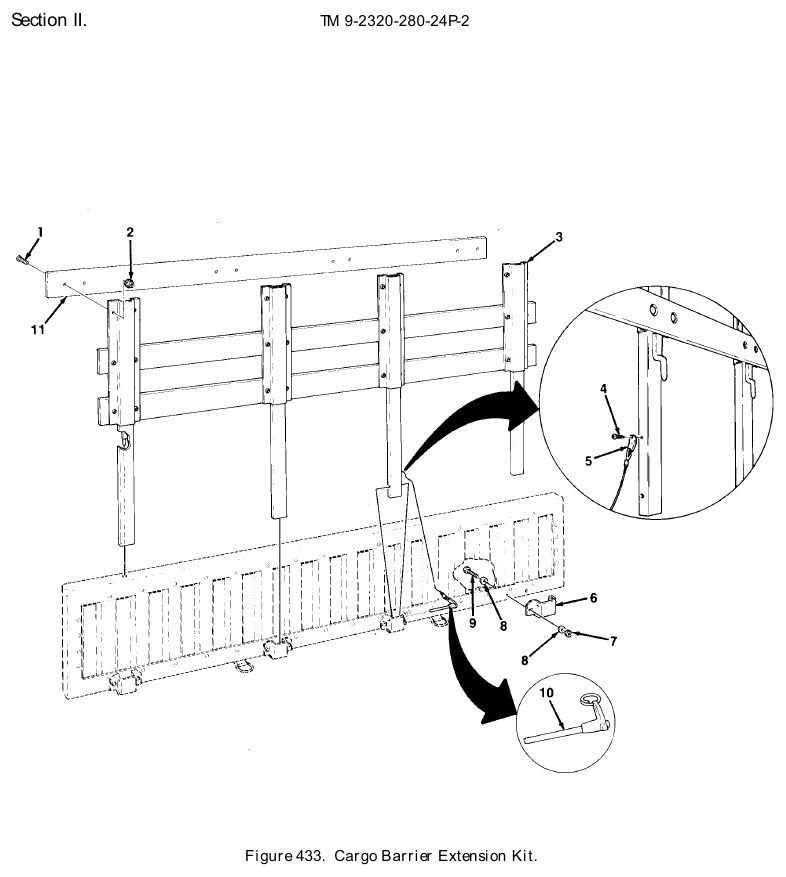

TM 9-2320-280-24P figure 433, Cargo Barrier Extension Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Square Neck Bolt NSN 5306-00-911-5005 · P/N MS35751-42 BOLT,SQUARE NECK 5/16-18 X 1.25 PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	24	85 in stock
2	Plain Assembled Washer Nut NSN 5310-00-933-4310 · P/N 271184 NUT,PLAIN,ASSEMBLED 5/16-18 PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	24	1 in stock
3	Mounting Bracket NSN 5340-01-318-3366 · P/N 12342284 BRACKET,MOUNTING GREEN(PAINT TAN OR WHITE IF REQUIRED)PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	We can source it $186.10 per eachgov't list price
4	Tapping Screw NSN 5305-00-432-4170 · P/N MS51861-35 SCREW,TAPPING #8-18 X .50 PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it
5	Single Leg Wire Rope Assembly NSN 4010-01-072-1167 · P/N LT1504-C6-08 WIRE ROPE ASSEMBLY, PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $25–$40 eachtypical
6	Retaining Strap NSN 5340-01-325-2891 · P/N 12342281 STRAP,RETAINING GREEN(PAINT TAN OR WHITE IF REQUIRED)PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	We can source it $30–$60 eachtypical
7	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24 PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	8	904 in stock
8	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	16	1,368 in stock
9	Machine Bolt NSN 5306-00-050-1238 · P/N B1821BH031F075N BOLT,MACHINE 5/16-24 X 3/4 PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	8	2,438 in stock
10	Quick Release Pin NSN 5315-00-376-9034 · P/N MS17986-C423 PIN,QUICK RELEASE PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $55–$105 eachtypical
11	Mounting Bracket NSN 5340-01-318-0212 · P/N 12342285 BRACKET,MOUNTING GREEN(PAINT TAN OR WHITE IF REQUIRED)PART OF KIT P/N 57K0218 PART OF KIT P/N 57K0222 PART OF KIT P/N 5705613 EXTENSION,GREEN Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	3	We can source it $188.53 per eachgov't list price

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
