HMMWV Slave Receptacle Kit TM 9-2320-280-24P · Fig. 434

Every part in figure 434 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 5 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

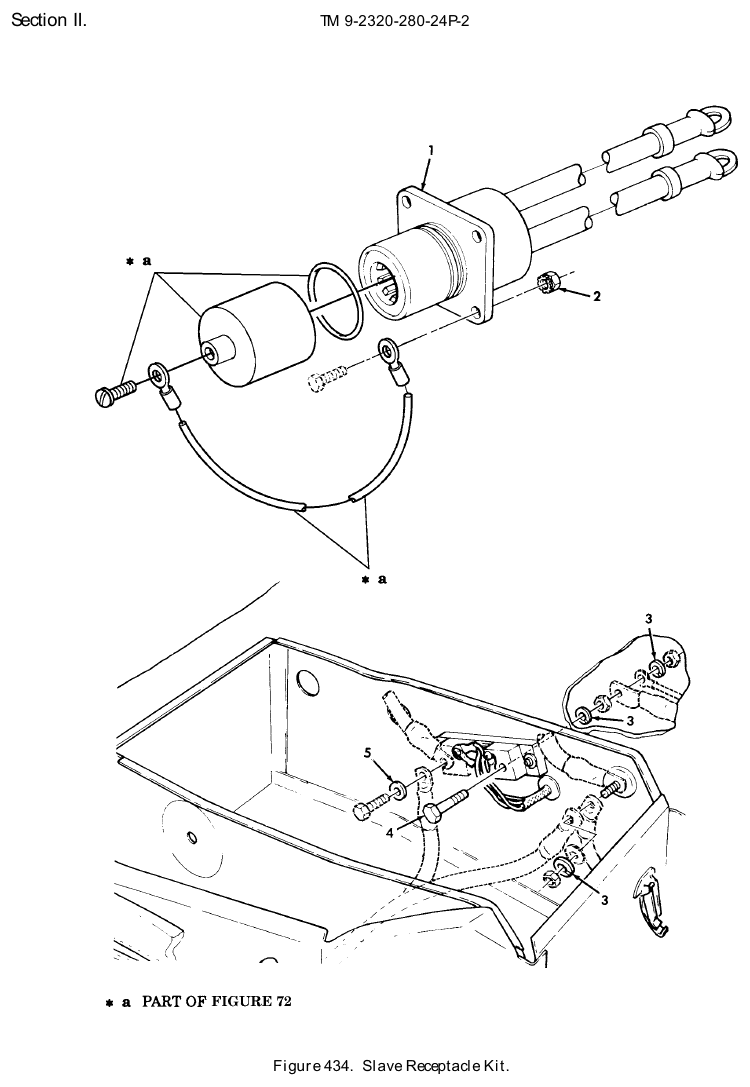

TM 9-2320-280-24P figure 434, Slave Receptacle Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cable Assembly NSN 6150-01-317-5853 · P/N 12342303 CABLE ASSEMBLY,POWE USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705623 Fits: M996, M997, M998, M1025, M1026, M1035 and 5 more	1	We can source it quote only
2	Plain Assembled Washer Nut NSN 5310-01-204-1039 · P/N 272474 NUT,PLAIN,ASSEMBLED PART OF KIT P/N 5705623 Fits: M996, M997, M998, M1025, M1026, M1035 and 5 more	4	4 in stock
3	Lock Washer NSN 5310-00-584-5272 · P/N 10332B WASHER,LOCK PART OF KIT P/N 5705623 Fits: M996, M997, M998, M1025, M1026, M1035 and 5 more	3	833 in stock
4	Cap Hexagon Head Screw NSN 5305-01-315-8649 · P/N 12342338 SCREW,CAP,HEXAGON H 1/2-13 X 3.00, USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705623 Fits: M996, M997, M998, M1025, M1026, M1035 and 5 more	1	We can source it
5	Lock Washer NSN 5310-00-184-8971 · P/N MS35338-103 WASHER,LOCK USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705623 THRU 99,999 CABLE ASSEMBLY,POWE( 1) 434-1 NUT,PLAIN,ASSEMBLED( 4) 434-2 SCREW,CAP,HEXAGON H( 1) 434-4 WASHER,LOCK ( 3) 434-3 WASHER,LOCK ( 1) 434-5 Fits: M996, M997, M998, M1025, M1026, M1035 and 5 more	1	1 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
