HMMWV Slave Receptacle with Power Cable Assembly Kit TM 9-2320-280-24P · Fig. 435

Every part in figure 435 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 10 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

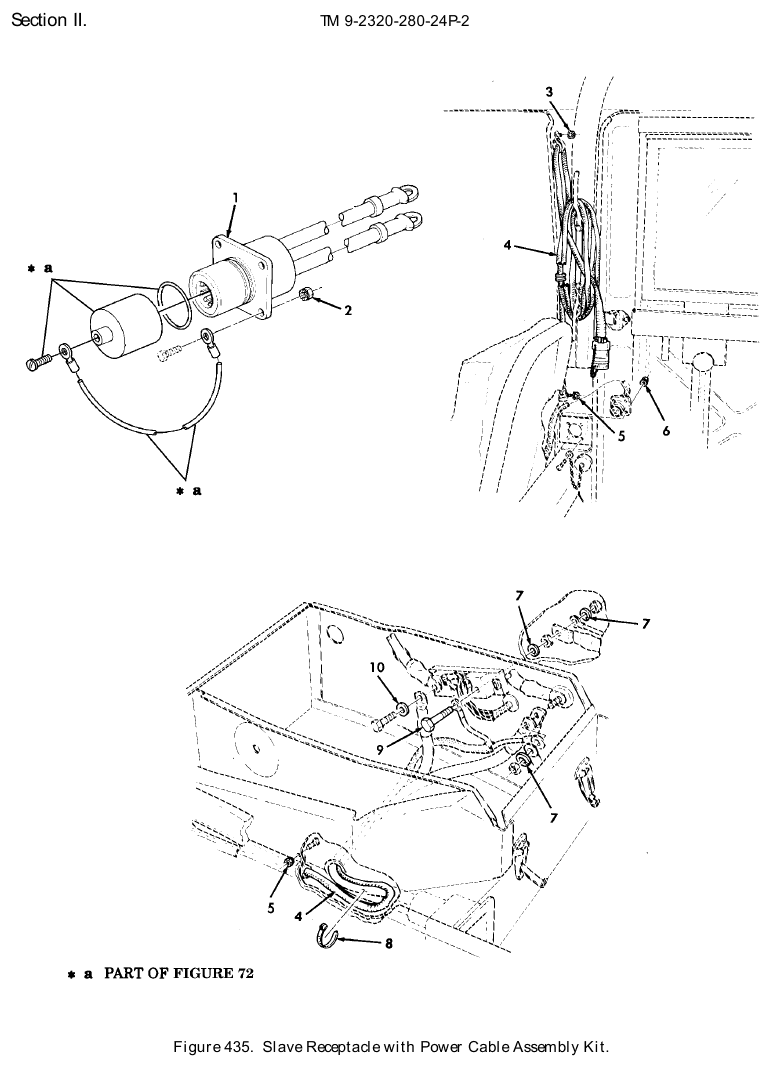

TM 9-2320-280-24P figure 435, Slave Receptacle with Power Cable Assembly Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cable Assembly NSN 6150-01-317-5853 · P/N 12342303 CABLE ASSEMBLY,POWE USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705624 Fits: M966, M1045, M1046, M1121	1	We can source it quote only
2	Plain Assembled Washer Nut NSN 5310-01-204-1039 · P/N 272474 NUT,PLAIN,ASSEMBLED 7/16-24,USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705624 Fits: M966, M1045, M1046, M1121	4	4 in stock
3	Plain Assembled Washer Nut NSN 5310-00-933-4310 · P/N 271184 NUT,PLAIN,ASSEMBLED 5/16-18,USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705624 Fits: M966, M1045, M1046, M1121	4	1 in stock
4	Branched Wiring Harness NSN 5995-01-339-0190 · P/N 12340655-1 WIRING HARNESS,BRAN USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705624 Fits: M966, M1045, M1046, M1121	1	1 in stock $711.89 per eachgov't list price
5	Plain Assembled Washer Nut NSN 5310-01-069-5243 · P/N 271163 NUT,PLAIN,ASSEMBLED 8-32,USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705624 Fits: M966, M1045, M1046, M1121	4	39 in stock
6	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN ,ASSEMBLED #10-32,USBL EFF 1 THRU 99,999,PART OF KIT P/N 5705624 Fits: M966, M1045, M1046, M1121	4	474 in stock
7	Lock Washer NSN 5310-00-584-5272 · P/N 10332B WASHER,LOCK 1/2,USBL EFF 1 THRU 99, 999 PART OF KIT P/N 5705624 Fits: M966, M1045, M1046, M1121	3	833 in stock
8	Tie Down Electrical Compon Strap NSN 5975-00-451-5001 · P/N MS3367-3-9 STRAP,TIEDOWN,ELECT USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705624 Fits: M966, M1045, M1046, M1121	1	We can source it
9	Cap Hexagon Head Screw NSN 5305-01-315-8649 · P/N 12342338 SCREW,CAP,HEXAGON H 1/2-13 X 3.00, USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705624 Fits: M966, M1045, M1046, M1121	1	We can source it
10	Lock Washer NSN 5310-00-184-8971 · P/N MS35338-103 WASHER,LOCK 3/8,USBL EFF 1 THRU 99, 999 PART OF KIT P/N 5705624 RECEPTACLE WITH POWER CABLE ASSEMBLY,USBL EFF 1 THRU 99,999 CABLE ASSEMBLY,POWE( 1) 435-1 NUT,PLAIN,ASSEMBLED( 4) 435-2 NUT,PLAIN,ASSEMBLED( 4) 435-3 NUT,PLAIN,ASSEMBLED( 4) 435-5 NUT,PLAIN,ASSEMBLED( 4) 435-6 SCREW,CAP,HEXAGON H( 1) 435-9 STRAP,TIEDOWN,ELECT( 1) 435-8 WA Fits: M966, M1045, M1046, M1121	1	1 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
