HMMWV Power Steering Oil Cooler Kit TM 9-2320-280-24P · Fig. 436

Every part in figure 436 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 11 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

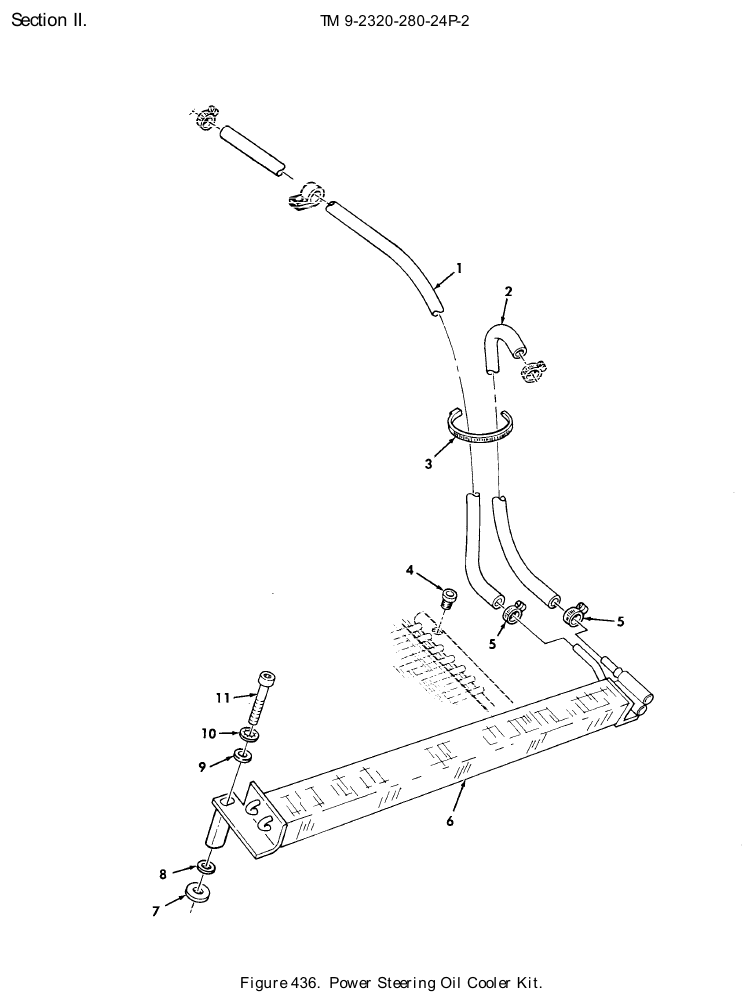

TM 9-2320-280-24P figure 436, Power Steering Oil Cooler Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Make From Hose Hose P/N 12338330-6 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 6490610019,29 INCHES LONG,USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	1	Ask us
2	Nonmetallic Make From Hose Hose P/N 12338330-7 HOSE,NONMETALLIC MAKE FROM HOSE,P/ N 6490610019,45 INCHES LONG,USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	1	Ask us
3	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	1	269 in stock
4	Pipe Plug NSN 4730-00-954-1281 · P/N WW-P-471ACABCB PLUG,PIPE USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	1	98 in stock
5	Hose Clamp NSN 4730-00-877-6298 · P/N L-3604-13 CLAMP,HOSE USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	2	We can source it
6	Fluid Transmission Cooler NSN 2520-01-316-2630 · P/N 12342142 COOLER,FLUID,TRANSM USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	1	95 in stock $206.00our price Buy online ↗
7	Flat Washer NSN 5310-01-185-7214 · P/N 12339052 WASHER,FLAT 5/16,USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	2	27 in stock
8	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 5/16,USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	2	We can source it
9	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16,USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	2	1,368 in stock
10	Lock Washer NSN 5310-00-167-0721 · P/N MS35333-41 WASHER,LOCK 5/16,USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	2	We can source it
11	Cap Screw NSN 5310-00-922-6143 · P/N MS16995-72 SCREW,CAP,SOCKET HE 5/16-18 X 2-1/ 2,USBL EFF 1 THRU 99,999 PART OF KIT P/N 5705612 Fits: All A0 models except M1097, plus M1121	2	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
