HMMWV Brushguard Kit (Basic and A1 Series) TM 9-2320-280-24P · Fig. 437

Every part in figure 437 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 13 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

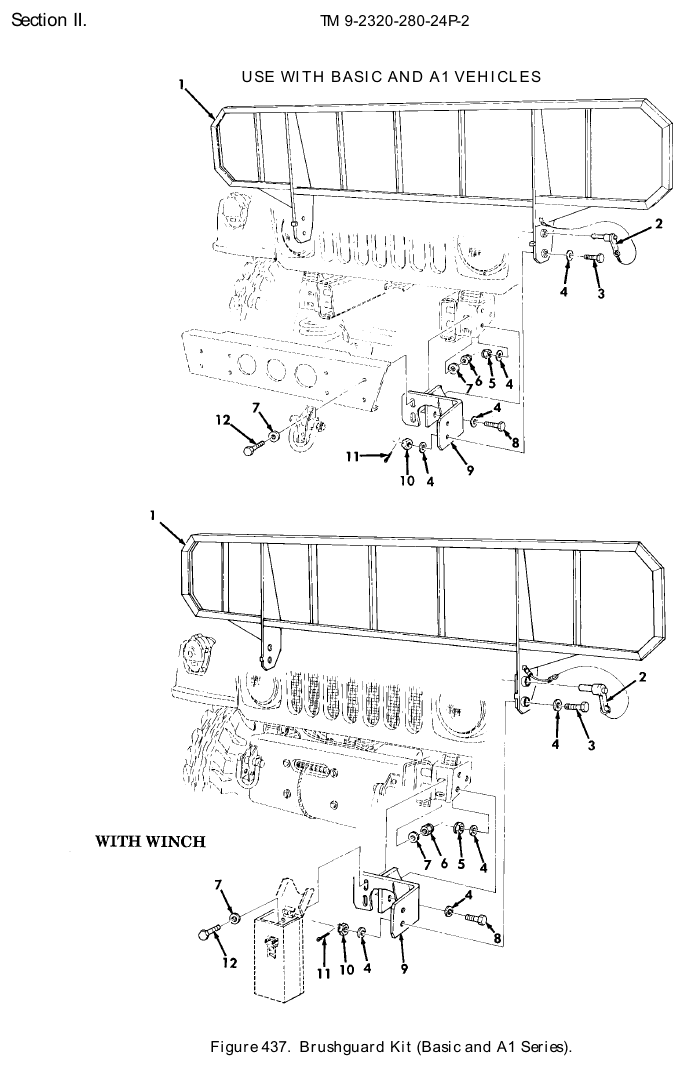

TM 9-2320-280-24P figure 437, Brushguard Kit (Basic and A1 Series): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Brushguard Assembly P/N 12342412 BRUSHGUARD ASSEMBLY PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	1	Ask us
2	Quick Release Pin NSN 5315-01-249-0555 · P/N MS17986-C1013 PIN,QUICK RELEASE PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	2	3 in stock $30–$60 eachtypical
3	Cap Hexagon Head Screw NSN 5305-01-331-6284 · P/N MS51108-139 SCREW,CAP,HEXAGON H 5/8-18 X 2.00 PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	2	2 in stock
4	Flat Washer NSN 5310-00-823-8803 · P/N MS27183-21 WASHER,FLAT 5/8 PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	12	347 in stock
5	Self-Locking Hexagon Nut NSN 5310-00-198-6691 · P/N 9422306 NUT,SELF-LOCKING,HE 5/8-18 PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	4	21 in stock
6	Plain Hexagon Nut NSN 5310-00-010-3028 · P/N MS35690-824 NUT,PLAIN,HEXAGON 1/2-20 PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	4	We can source it
7	Flat Washer NSN 5310-01-121-1703 · P/N 2310-0143-001 WASHER,FLAT 1/2 PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	8	2,218 in stock
8	Cap Hexagon Head Screw NSN 5305-00-727-2283 · P/N MS90726-162 SCREW,CAP,HEXAGON H 5/8-18 X 1 3/4 PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	4	28 in stock
9	Mounting Bracket NSN 5340-01-332-7516 · P/N 12342418 BRACKET,MOUNTING PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	1	12 in stock $90–$155 eachtypical
10	Plain Slotted Hexagon Nut NSN 5310-00-850-7004 · P/N MS35692-54 NUT,PLAIN,SLOTTED,H 5/8-18 PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	2	8,940 in stock
11	Cotter Pin NSN 5315-00-298-1481 · P/N MS24665-357 PIN,COTTER 5/64 X 2.00 PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	2	2,329 in stock
12	Cap Hexagon Head Screw NSN 5305-00-719-5235 · P/N 9423995 SCREW,CAP,HEXAGON H 1/2-20 X 1 3/4, WITH WINCH PART OF KIT P/N 57K0106 Fits: All A0 and A1 models, plus M1121	4	4,420 in stock
12	Cap Hexagon Head Screw NSN 5305-00-719-5239 · P/N MS90727-116 SCREW,CAP,HEXAGON H 1/2-20 X 2 1/4, WITHOUT WINCH PART OF KIT P/N 57K0106 BRACKET,MOUNTING ( 1) 437-9 BRUSHGUARD ASSEMBLY( 1) 437-1 NUT,PLAIN,HEXAGON ( 4) 437-6 NUT,PLAIN,SLOTTED ( 2) 437-10 NUT,SELF-LOCKING,HE( 4) 437-5 PIN,COTTER ( 2) 437-11 PIN,QUICK RELEASE ( 2) 437-2 SCREW,CAP,HEXAGON H( 2) 437-3 SCREW,CAP,HEXAGON H( 4) Fits: All A0 and A1 models, plus M1121	4	40 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
