HMMWV Kit, S250 Shelter Mounting Components TM 9-2320-280-24P · Fig. 438

Every part in figure 438 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 23 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

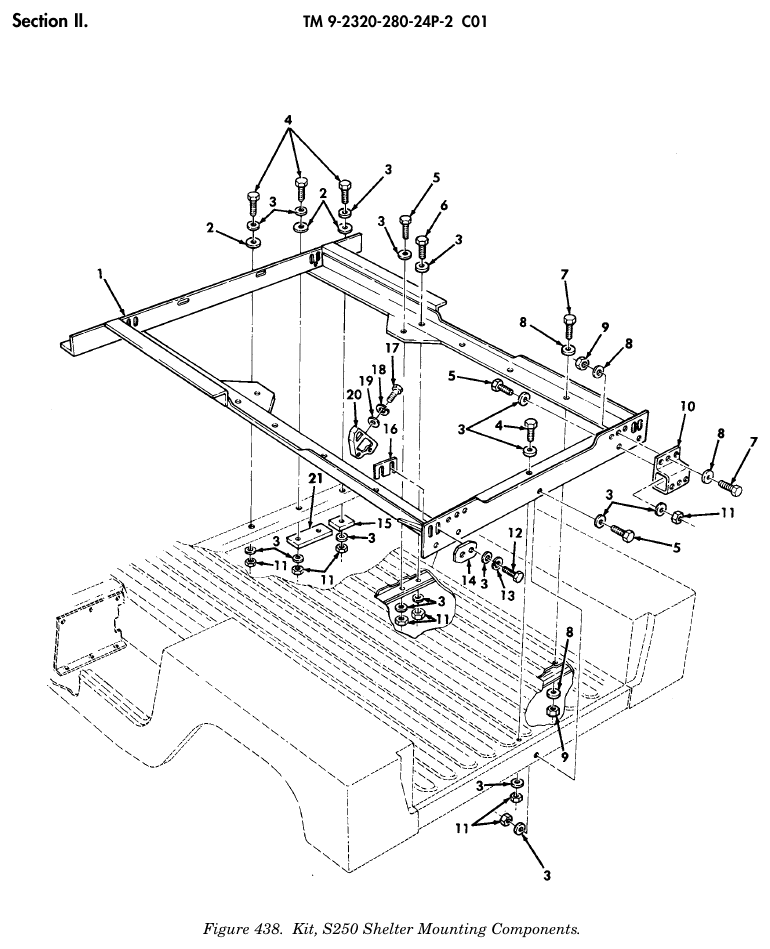

TM 9-2320-280-24P figure 438, Kit, S250 Shelter Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mounting Support Assembly NSN 2540-01-213-8057 · P/N 12339875 SUPPORT ASSEMBLY,MO PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	1	1 in stock $2,199.78 per assemblygov't list price
2	Flat Washer NSN 5310-01-211-0698 · P/N 12339862-2 WASHER,FLAT PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	8	8 in stock
3	Flat Washer NSN 5310-01-121-1703 · P/N 2310-0143-001 WASHER,FLAT 1/2,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	44	2,218 in stock
4	Machine Bolt NSN 5306-01-360-0926 · P/N 17C836R BOLT,MACHINE 1/2-13 X 1.50,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	9	We can source it
5	Machine Bolt NSN 5306-00-844-0036 · P/N 427566 BOLT,MACHINE 1/2-13 X 2.25,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	9	4 in stock $25–$40 eachtypical
6	Cap Hexagon Head Screw NSN 5305-00-071-2070 · P/N B1821BH050C175N SCREW,CAP,HEXAGON 1/2-13 X 1.75 PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	5	4,200 in stock $52.99our price Buy online ↗
7	Cap Hexagon Head Screw NSN 5305-00-688-2111 · P/N B1821BH038C138N SCREW,CAP,HEXAGON H 3/8-16 X 1.375,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	10	296 in stock
8	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	20	6 in stock
9	Self-Locking Hexagon Nut NSN 5310-01-361-1152 · P/N 9413266 NUT,SELF-LOCKING,HE 3/8-16,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	16	We can source it
10	Mounting Bracket NSN 5340-01-214-4675 · P/N 12338972 BRACKET,MOUNTING PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	2	2 in stock $70–$120 eachtypical
11	Self-Locking Hexagon Nut NSN 5310-00-020-0358 · P/N 21NE083 NUT,SELF-LOCKING,HE 1/2-13,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	17	17 in stock $25–$40 eachtypical
12	Machine Bolt NSN 5306-01-276-1621 · P/N 5597349 BOLT,SELF-LOCKING 1/2-13 X 2.50, PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	8	8 in stock $25–$40 eachtypical
13	Lock Washer NSN 5310-00-834-7606 · P/N MS35340-48 WASHER,LOCK 1/2,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	8	52 in stock
14	Plate Spacer NSN 5365-01-277-2387 · P/N 12341968 SPACER,PLATE PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	4	3 in stock $25–$55 eachtypical
15	Reinforcement Beam Plate NSN 2590-01-213-1629 · P/N 12339857 PLATE,REINFORCEMENT PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	2	6 in stock $25–$40 eachtypical
16	Plate Spacer NSN 5365-01-265-8937 · P/N 12341967-1 SPACER,PLATE 0.09,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	2	4 in stock
16	Plate Spacer NSN 5365-01-265-8938 · P/N 12341967-2 SPACER,PLATE 0.12,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	2	2 in stock
16	Plate Spacer NSN 5365-01-265-8939 · P/N 12341967-3 SPACER,PLATE 0.03,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	2	14 in stock
17	Machine Bolt NSN 5306-01-360-1123 · P/N 9423557 BOLT,MACHINE 7/16-14 X 2.50,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	4	4 in stock
18	Lock Washer NSN 5310-00-655-9370 · P/N MS35340-47 WASHER,LOCK 29/64,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	4	We can source it
19	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	4	170 in stock
20	Mounting Bracket NSN 5340-01-265-8905 · P/N 12341969 BRACKET,MOUNTING PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	4	21 in stock $63.99our price Buy online ↗
21	Reinforcement Beam Plate NSN 2590-01-213-1628 · P/N 12339856 PLATE,REINFORCEMENT B-BEAM,PART OF KIT P/N 57K3542 Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	2	4 in stock $25–$40 eachtypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
