HMMWV Kit, S250 Shelter Tailgate Mounting Components TM 9-2320-280-24P · Fig. 439

Every part in figure 439 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 12 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

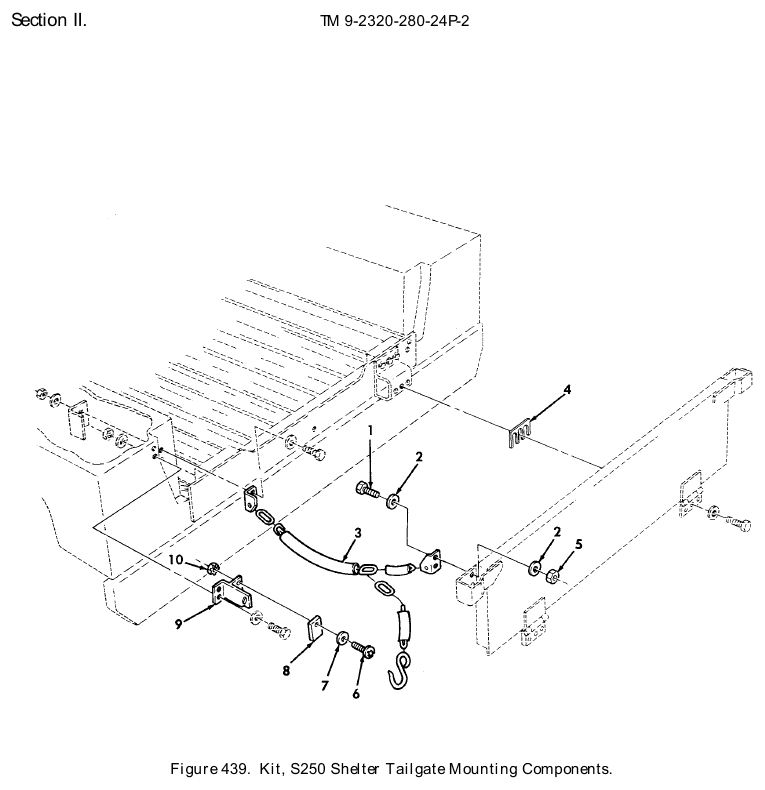

TM 9-2320-280-24P figure 439, Kit, S250 Shelter Tailgate Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.13,PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	4	84,127 in stock
2	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16,PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	8	471 in stock
3	Single Leg Chain Assembly NSN 4010-01-217-7086 · P/N 12339229-1 CHAIN ASSEMBLY,SING L.H.,PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	1	5 in stock $83.29our price Buy online ↗
3	Single Leg Chain Assembly NSN 4010-01-215-7466 · P/N 12339229-2 CHAIN ASSEMBLY,SING R.H.,PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	1	3 in stock $50–$85 per assemblytypical
4	Plate Spacer NSN 5365-01-271-2491 · P/N 12340045 SPACER,PLATE PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	2	47 in stock
5	Self-Locking Cone Seat Hexag Nut NSN 5310-01-119-3668 · P/N 9422295 NUT,SELF-LOCKING,HE 5/16-18,PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	4	15 in stock
6	Machine Screw NSN 5305-00-984-6212 · P/N MS35206-265 SCREW,MACHINE #10-24 X 0.75,PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	4	177 in stock
7	Flat Washer NSN 5310-01-361-1163 · P/N 9417373 WASHER,FLAT #10,PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	4	We can source it
8	Resilient Weapon System Mount NSN 5342-01-214-7809 · P/N 12338976 MOUNTING,RESILIENT PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	2	2 in stock
9	Door Vehicular Latch NSN 2540-01-314-1121 · P/N 5590669 LATCH,DOOR,VEHICULA L.H.,PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	1	17 in stock $25–$55 eachtypical
9	Door Vehicular Latch NSN 2540-01-209-6875 · P/N 12338978-2 LATCH,DOOR,VEHICULA R.H.,PART OF KIT P/N 57K3542 Fits: M1097, M1097A1, M1097A2, M1123	1	2 in stock $30–$65 eachtypical
10	Plain Assembled Washer Nut NSN 5310-01-211-0691 · P/N 9422771 NUT,PLAIN,ASSEMBLED #10-24,PART OF KIT P/N 57K3542 MOUNTING BOLT,MACHINE ( 9) 438-4 BOLT,MACHINE ( 9) 438-5 BOLT,MACHINE ( 4) 439-1 BOLT,MACHINE ( 4) 438-17 BOLT,SELF-LOCKING ( 8) 438-12 BRACKET,MOUNTING ( 2) 438-10 BRACKET,MOUNTING ( 4) 438-20 CHAIN ASSEMBLY,SING( 1) 439-3 CHAIN ASSEMBLY,SING( 1) 439-3 Fits: M1097, M1097A1, M1097A2, M1123	4	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
