HMMWV Kit, Camouflage Rack and Stowage Rack Assembly TM 9-2320-280-24P · Fig. 440

Every part in figure 440 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 23 lines, 18 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

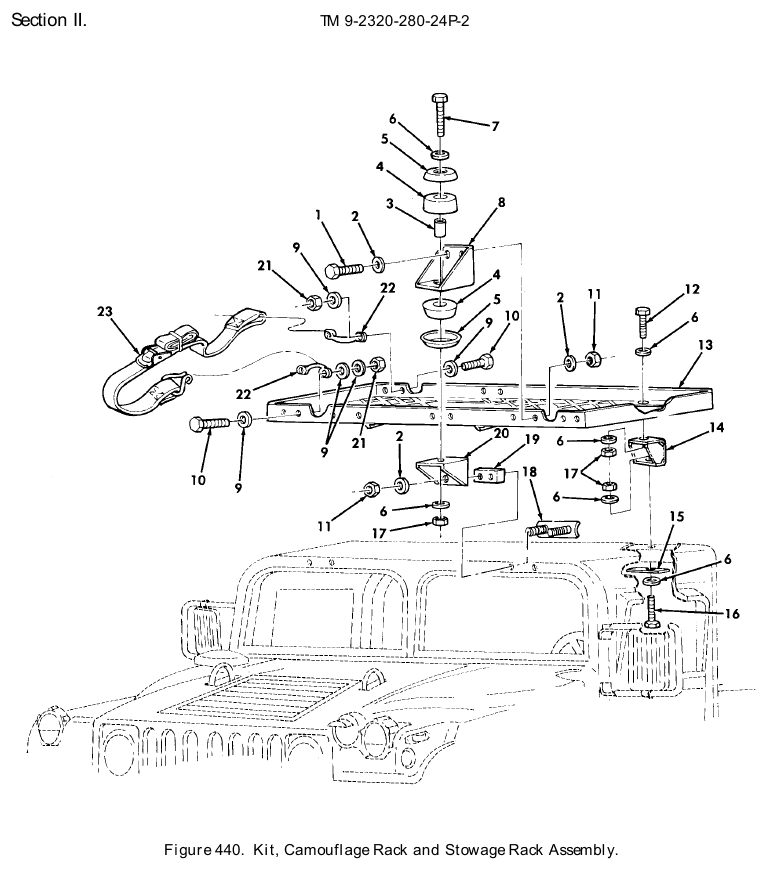

TM 9-2320-280-24P figure 440, Kit, Camouflage Rack and Stowage Rack Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5306-00-226-4825 · P/N 25228R1 BOLT,MACHINE 5/16-18 X .75,PART OF KIT P/N 57K1641 Fits: M1097	4	761 in stock
2	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16,PART OF KIT P/N 57K1641 Fits: M1097	12	471 in stock
3	Sleeve Spacer NSN 5365-01-216-0364 · P/N 12338186-52 SPACER,SLEEVE PART OF KIT P/N 57K1641 Fits: M1097	2	12 in stock
4	Resilient Utility Mount NSN 5340-01-211-0838 · P/N 5584891 MOUNT,RESILIENT UPPER AND LOWER, PART OF KIT P/N 57K1641 Fits: M1097	4	500 in stock $25.00our price Buy online ↗
5	Snubber Vehicular Plate NSN 2540-01-192-5949 · P/N 12339561 PLATE,SNUBBER,VEHIC PART OF KIT P/N 57K1641 Fits: M1097	4	12,211 in stock
6	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8,PART OF KIT P/N 57K1641 Fits: M1097	12	1,146 in stock $7.83our price Buy online ↗
7	Machine Bolt NSN 5305-01-360-1129 · P/N 427583 BOLT,MACHINE 3/8-16 X 3.25,PART OF KIT P/N 57K1641 Fits: M1097	2	6 in stock
8	Angle Bracket NSN 5340-01-359-9474 · P/N 12342559 BRACKET,MOUNTING UPPER FRONT,PART OF KIT P/N 57K1641 Fits: M1097	2	4 in stock $30–$65 eachtypical
9	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4,PART OF KIT P/N 57K1641 Fits: M1097	30	351 in stock
10	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X .75, PART OF KIT P/N 57K1641 Fits: M1097	12	471 in stock
11	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18,PART OF KIT P/N 57K1641 Fits: M1097	8	354 in stock
12	Cap Hexagon Head Screw NSN 5305-00-989-0830 · P/N 186678 SCREW,CAP,HEXAGON H 3/8-16 X 1.00, PART OF KIT P/N 57K1641 Fits: M1097	2	We can source it
13	Vehicular Assembly Rack NSN 2540-01-387-5578 · P/N 12342558 RACK ASSEMBLY PART OF KIT P/N 57K1641 Fits: M1097	1	1 in stock $453.71 per eachgov't list price
14	Double Angle Bracket NSN 5340-01-360-2053 · P/N 12342561 BRACKET,MOUNTING REAR,PART OF KIT P/N 57K1641 Fits: M1097	2	We can source it
15	Mounting Plate NSN 5340-01-360-2021 · P/N 12342666 PLATE,MOUNTING PART OF KIT P/N 57K1641 Fits: M1097	2	6 in stock
16	Machine Bolt NSN 5306-01-360-1130 · P/N 456958 BOLT,MACHINE 3/8-16 X 4.00,PART OF KIT P/N 57K1641 Fits: M1097	2	We can source it
17	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16,PART OF KIT P/N 57K1641 Fits: M1097	6	219 in stock
18	Mounting Bracket NSN 5340-01-361-1212 · P/N 12342623 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K1641 Fits: M1097	2	1 in stock
19	Plate Spacer NSN 5365-01-359-9406 · P/N 12342557 SPACER,STRAIGHT PART OF KIT P/N 57K1641 Fits: M1097	2	4 in stock
20	Angle Bracket NSN 5340-01-359-8933 · P/N 12342560 BRACKET,ANGLE LOWER FRONT,PART OF KIT P/N 57K1641 Fits: M1097	2	1,322 in stock $25–$40 eachtypical
21	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20,PART OF KIT P/N 57K1641 Fits: M1097	12	626 in stock
22	Bow Handle NSN 5340-01-197-8674 · P/N 12338839-6 HANDLE,BOW PART OF KIT P/N 57K1641 Fits: M1097	6	We can source it
23	Webbing Strap NSN 5340-01-360-1886 · P/N 12342562 STRAP,RETAINING PART OF KIT P/N 57K1641 OF KIT P/N 57K1628 PART OF KIT P/N 57K0235 BOLT,MACHINE ( 4) 440-1 BOLT,MACHINE ( 2) 440-7 BOLT,MACHINE ( 2) 440-16 BRACKET,ANGLE ( 2) 440-20 BRACKET,DOUBLE ANGL( 2) 440-18 BRACKET,MOUNTING ( 2) 440-8 BRACKET,MOUNTING ( 2) 440-14 HANDLE,BOW ( 6) 440-22 MOUN Fits: M1097	3	We can source it $30–$65 eachtypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
