HMMWV Alternator, 100 AMP (NIEHOFF) TM 9-2320-280-24P · Fig. 43B

Every part in figure 43B of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0601 Generator: Alternator: 48 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

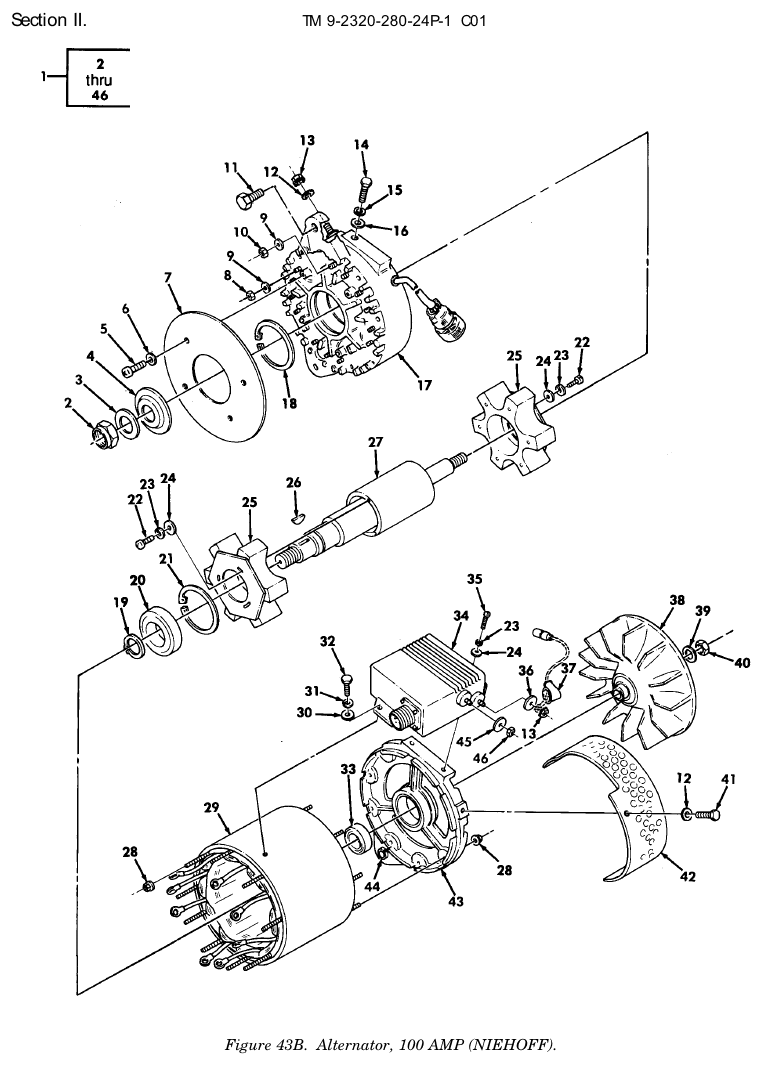

TM 9-2320-280-24P figure 43B, Alternator, 100 AMP (NIEHOFF): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Engine Accessory Generator NSN 2920-01-407-0532 · P/N 12447110 GENERATOR,ENGINE AC Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	1 in stock quote only $2,926.00 per eachgov't list price
2	Self-Locking Hexagon Nut NSN 5310-01-348-8360 · P/N N9416 NUT,SELF-LOCKING,HE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	3 in stock
3	Flat Washer NSN 5310-00-772-0442 · P/N 7720442 WASHER,FLAT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it
4	Sleeve Bearing NSN 3120-01-424-1525 · P/N N9492 BEARING,SLEEVE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it $35–$70 eachtypical
5	Machine Screw NSN 5305-01-032-4165 · P/N N9005 SCREW,MACHINE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	4	We can source it
6	Lock Washer NSN 5310-01-136-4888 · P/N N9265 WASHER,LOCK Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	4	We can source it
7	Access Cover NSN 5340-01-396-3950 · P/N N9493 COVER,ACCESS Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	2 in stock $30–$70 eachtypical
8	Plain Hexagon Nut NSN 5310-01-232-6617 · P/N N9343 NUT,PLAIN,HEXAGON Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	6	We can source it
9	Flat Washer NSN 5310-01-232-1363 · P/N N9062 WASHER,FLAT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	8	We can source it
10	Self-Locking Hexagon Nut NSN 5310-01-362-6171 · P/N N9406 NUT,SELF-LOCKING,HE 43B-1 H17,H18,H20,H21,H24,H25,H26,H27,H28, MMM Fits: All A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M966, M998, M1038	2	We can source it $25–$40 eachtypical
11	Screw Thread Insert NSN 5325-00-331-4774 · P/N MS122083 INSERT,SCREW THREAD Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it
12	Flat Washer NSN 5310-01-304-8733 · P/N MS15795-852 WASHER,FLAT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	4	10 in stock
13	Plain Octagon Nut NSN 5310-01-348-8398 · P/N N9410 NUT,PLAIN,OCTAGON Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	2	We can source it
14	Machine Bolt NSN 5306-00-226-4824 · P/N B1821BH031C063N BOLT,MACHINE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	2	4 in stock
15	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	2	2,036 in stock
16	Flat Washer NSN 5310-00-625-5756 · P/N MS15795-812 WASHER,FLAT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	2	1,427 in stock
17	Front Housing Assy P/N N7398 FRONT HOUSING ASSY Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
17	Front Housing Assy P/N N7433 FRONT HOUSING ASSY Fits: All A2 models except M997A2, M1097A2	1	Ask us
18	Retaining Ring NSN 5325-01-396-4320 · P/N N9494 RING,RETAINING Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it
19	Retaining Ring NSN 5325-01-136-7662 · P/N N9260 RING,RETAINING Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it
20	Ball Bearing Unit NSN 3130-01-396-8388 · P/N N9486 BEARING UNIT,BALL 43B-2 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it $45–$90 eachtypical
21	Retaining Ring NSN 5325-01-136-4880 · P/N N9256 RING,RETAINING Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it
22	Machine Screw NSN 5305-00-059-3659 · P/N 2003-0015-3 SCREW,MACHINE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	6	169 in stock
23	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	8	709 in stock
24	Flat Washer NSN 5310-00-615-1556 · P/N 2616950G001 WASHER,FLAT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	8	24 in stock
25	Rotor Assembly P/N N7402 ROTOR ASSEMBLY Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	2	Ask us
26	Woodruff Key NSN 5315-00-012-4553 · P/N MS35756-17 KEY,WOODRUFF Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	1,575 in stock
27	Core P/N N7400 CORE,SHAFT ASSEMBLY Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	Ask us
28	Self-Locking Extended Washer Nut NSN 5310-01-165-1312 · P/N N9099 NUT,SELF-LOCKING,EX Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	18	We can source it
29	Stator Field Shell P/N N7399 SHELL,STATOR,FIELD Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	Ask us
30	Flat Washer NSN 5310-01-304-8733 · P/N MS15795-852 WASHER,FLAT 1/4 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	2	10 in stock
31	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 1/4 43B-3 H17,H18,H20,H21,H24,H25,H26,H27,H28, MMM Fits: All A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M966, M998, M1038	2	1,162 in stock
32	Cap Hexagon Head Screw NSN 5305-00-267-8953 · P/N B1821BH025F063N SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	2	1,020 in stock
33	Ball Annular Bearing NSN 3110-01-348-4867 · P/N N9385 BEARING,BALL,ANNULA Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it $30–$65 eachtypical
34	Engine Generator Regulator NSN 2920-01-483-2291 · P/N N3135 REGULATOR,ENGINE GE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	10 in stock $818.29our price Buy online ↗
35	Machine Screw NSN 5305-00-616-4831 · P/N MS35266-65 SCREW,MACHINE 3/16-32 X .75 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	2	We can source it
36	Flat Washer NSN 5310-01-350-8549 · P/N N9465 WASHER,FLAT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it
37	Dust and Moisture Seal Boot NSN 5340-01-350-1987 · P/N N9464 BOOT,DUST AND MOIST Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	3	79 in stock
38	Fan Centrifugal Impeller NSN 4140-01-397-2228 · P/N N9491 IMPELLER,FAN,CENTRI Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	1 in stock $45–$90 eachtypical
39	Flat Washer NSN 5310-01-050-6565 · P/N N9063 WASHER,FLAT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it
40	Self-Locking Hexagon Nut NSN 5310-01-390-5105 · P/N N9092 NUT,SELF-LOCKING,HE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it
41	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 43B-4 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	3	248 in stock
42	Fan Impeller Guard NSN 4140-01-394-8583 · P/N 12342930 GUARD,FAN IMPELLER Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it $30–$70 eachtypical
43	Electrical Rotating Equ End Bell NSN 2920-01-399-0794 · P/N N7401 END BELL,ELECTRICAL Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	23 in stock $382.30 per eachgov't list price
44	Sleeve Bushing NSN 3120-01-413-6106 · P/N 12342711 BUSHING,SLEEVE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $25–$40 eachtypical
44	Sleeve Bushing NSN 3120-01-424-1028 · P/N N9545 BUSHING,SLEEVE Fits: All A2 models except M997A2, M1097A2	1	We can source it
45	Flat Washer NSN 5310-01-042-8391 · P/N 500-1114-003 WASHER,FLAT Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it
46	Plain Cap Nut NSN 5310-01-350-4257 · P/N N9467 NUT,PLAIN,CAP Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
