Catalog › Parts manuals › TM 9-2320-280-24P › Starting Motor › Fig. 44

HMMWV Starter Motor, Cable Assemblies, and Mounting Hardware TM 9-2320-280-24P · Fig. 44

Every part in figure 44 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0603 Starting Motor: 31 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

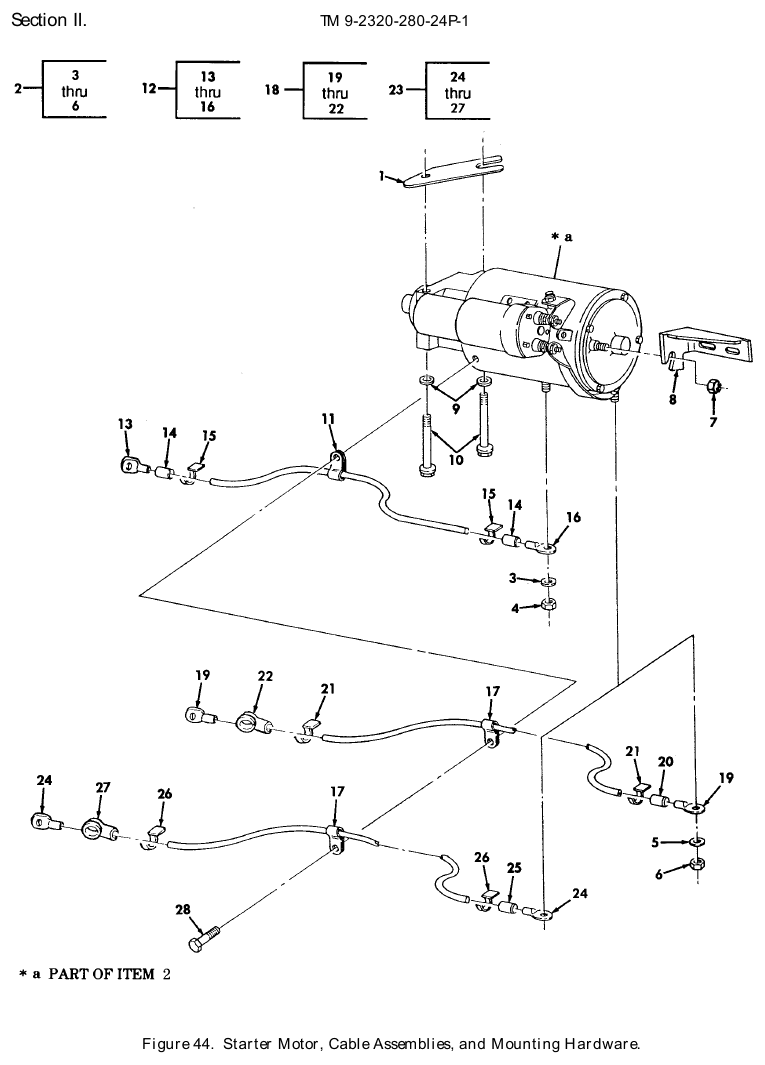

TM 9-2320-280-24P figure 44, Starter Motor, Cable Assemblies, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plate Spacer NSN 5365-01-210-4903 · P/N 5593694 SPACER,PLATE .080 Fits: All models	V	8 in stock
2	Engine Electrical Starter NSN 2920-01-168-7891 · P/N MFY-6701UT STARTER,ENGINE,ELEC 24 VOLT Fits: All models	1	67 in stock $665.00our price Buy online ↗
3	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All models	1	1,162 in stock
4	Plain Hexagon Nut NSN 5310-00-732-0558 · P/N MS51967-8 NUT,PLAIN,HEXAGON 3/8-16 Fits: All models	1	398 in stock
5	Lock Washer NSN 5310-01-216-7390 · P/N MS51415-9 WASHER,LOCK 1/2 Fits: All models	1	We can source it
6	Plain Hexagon Nut NSN 5310-00-834-8732 · P/N MS35691-33 NUT,PLAIN,HEXAGON 1/2-13 Fits: All models	1	191 in stock
7	Plain Assembled Washer Nut NSN 5310-00-355-5645 · P/N 31WLF3816 NUT,PLAIN,ASSEMBLED 3/8-16 Fits: All models	1	49 in stock
8	Angle Bracket NSN 5340-01-457-5734 · P/N EX4939 BRACKET,ANGLE Fits: All models	1	1 in stock $30–$65 eachtypical
9	Flat Washer NSN 5310-01-286-6077 · P/N 5598627 WASHER,FLAT Fits: All models	2	76 in stock
10	Cap Hexagon Head Screw NSN 5305-01-285-4923 · P/N 12339413 SCREW,CAP,HEXAGON H Fits: All models	2	We can source it
11	Loop Clamp NSN 5340-00-984-8541 · P/N MS21333-106 CLAMP,LOOP NEGATIVE Fits: All models	1	3 in stock
12	Cable Assembly Ground P/N 12340048 CABLE ASSEMBLY GROUND,MAKE FROM WIRE, P/N M13486/1-14,31 INCHES LONG Fits: All A0 models; all A1 models except M998A1, plus M1025A2, M1121	1	Ask us
12	Spec Negative Cable Assembly P/N 12446821-4 CABLE ASSEMBLY,SPEC NEGATIVE,MAKE FROM WIRE,P/N M13486/1-14,LENGTH AS Fits: All A2 models, plus M1123	1	Ask us
13	Lug Terminal NSN 5940-00-735-5520 · P/N TG33 TERMINAL,LUG Fits: All models	1	We can source it
14	Electrical Insulation Sleeving NSN 5970-00-827-6566 · P/N CRN1RED INSULATION SLEEVING Fits: All models	2	We can source it
15	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER RED Fits: All models	3	1 in stock $20.58our price Buy online ↗
16	Lug Terminal NSN 5940-00-115-5006 · P/N MS25036-133 TERMINAL,LUG Fits: All models	1	30 in stock
17	Loop Clamp NSN 5340-00-809-1494 · P/N MS21333-105 CLAMP,LOOP Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M1121	1	23 in stock
17	Loop Clamp NSN 5340-00-809-1494 · P/N MS21333-105 CLAMP,LOOP Fits: M996, M996A1, M997, M997A1, M997A2, M1097 and 3 more	2	23 in stock
18	Cable Assembly Positive P/N 12339316 CABLE ASSEMBLY POSITIVE,MAKE FROM WIRE,P/N M13486/1-14,31 INCHES LONG Fits: All A0 and A1 models, plus M1121	1	Ask us
18	Cable Assembly Positive P/N 12339316-1 CABLE ASSEMBLY POSITIVE,MAKE FROM WIRE,P/N M13486/1-14,31 INCHES LONG Fits: All A2 models, plus M1123	1	Ask us
19	Lug Terminal NSN 5940-00-735-5520 · P/N TG33 TERMINAL,LUG Fits: All models	2	We can source it
20	Electrical Insulation Sleeving NSN 5970-00-221-5301 · P/N RESINITEEP69C INSULATION SLEEVING Fits: All models	1	We can source it
21	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER Fits: All models	3	1 in stock $20.58our price Buy online ↗
22	Electrical Cable Nipple NSN 5975-01-208-9618 · P/N 5582481 CABLE NIPPLE,ELECTR Fits: All models	1	32 in stock
23	Electrical Lead P/N 12339317 LEAD,ELECTRICAL 200 AMP,MAKE FROM WIRE,P/N M13486/1-14,58 INCHES LONG USE WITH 200 AMP ALT Fits: M996, M996A1, M997, M997A1, M997A2, M1097 and 3 more	1	Ask us
24	Lug Terminal NSN 5940-00-735-5520 · P/N TG33 TERMINAL,LUG Fits: M996, M996A1, M997, M997A1, M997A2, M1097 and 3 more	2	We can source it
25	Electrical Insulation Sleeving NSN 5970-00-057-9987 · P/N 8034668-159 INSULATION SLEEVING Fits: M996, M996A1, M997, M997A1, M997A2, M1097 and 3 more	1	We can source it
26	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER Fits: M996, M996A1, M997, M997A1, M997A2, M1097 and 3 more	3	1 in stock $20.58our price Buy online ↗
27	Electrical Cable Nipple NSN 5975-01-208-9618 · P/N 5582481 CABLE NIPPLE,ELECTR Fits: M996, M996A1, M997, M997A1, M997A2, M1097 and 3 more	1	32 in stock
28	Tapping Screw NSN 5305-01-039-6633 · P/N MS51869-23 SCREW,TAPPING 1/4-20 X 3/8 Fits: All models	1	We can source it

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
