HMMWV Starter Motor Assembly TM 9-2320-280-24P · Fig. 45

Every part in figure 45 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0603 Starting Motor: 81 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

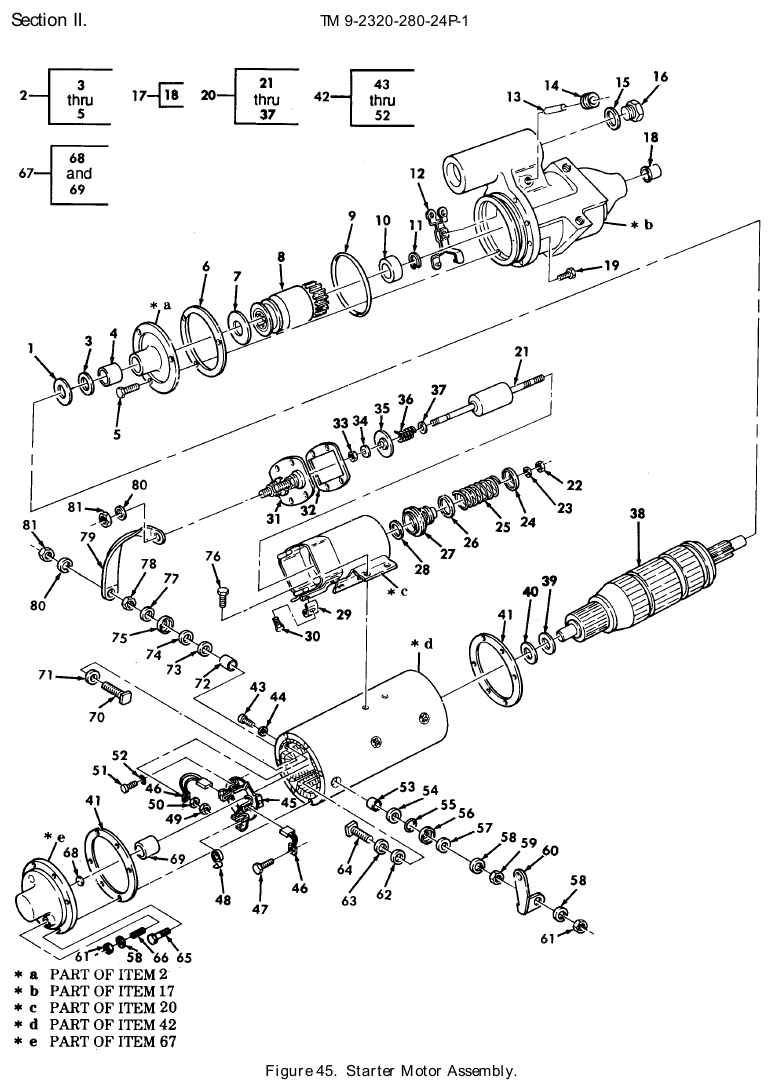

TM 9-2320-280-24P figure 45, Starter Motor Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer P/N ML-129 WASHER,FLAT .31 THICK PART OF KIT P/N 90-2840 Fits: All models	1	Ask us
2	Starter Plate Assembly NSN 2990-01-205-5981 · P/N MFY-1130 PLATE ASSEMBLY,STAR Fits: All models	1	182 in stock $30–$65 per assemblytypical
3	Seal NSN 5330-01-209-7669 · P/N XA-1642 SEAL Fits: All models	1	We can source it
4	Sleeve Bearing NSN 3120-00-425-6467 · P/N MS17795-128 BEARING,SLEEVE Fits: All models	1	We can source it
5	Fill Head Screw P/N 13X-5549 SCREW,FILL HEAD PART OF KIT P/N 90- 2838 Fits: All models	3	Ask us
6	Gasket Intermediate P/N MFY-25 GASKET INTERMEDIATE PART OF KIT P/N 36-630 Fits: All models	1	Ask us
7	Spacer P/N MFY-133 SPACER 0.108 THICK PART OF KIT P/N 90-2840 Fits: All models	1	Ask us
8	Engine Electrical Starter Drive NSN 2920-01-187-1310 · P/N DRA-3002D DRIVE,ENGINE,ELECTR Fits: All models	1	2,464 in stock $40–$80 eachtypical
9	O-Ring NSN 5331-00-137-3450 · P/N XA-744Z O-RING 4-7/16 Fits: All models	1	2 in stock
10	Pinion Stop Starter P/N MFY-53 PINION STOP STARTER PART OF KIT P/N 90-2841 Fits: All models	1	Ask us
11	Snap Ring Starter P/N MCS-47A SNAP RING STARTER PART OF KIT P/N 90 -2841 Fits: All models	1	Ask us
12	Nonvehicular Shifter Fork NSN 3010-01-068-6996 · P/N MEU-2042B SHIFTER FORK,NONVEH Fits: All models	1	14 in stock $35–$75 eachtypical
13	Pin Straight P/N MES-117A PIN STRAIGHT PART OF KIT P/N 90-2206 Fits: All models	2	Ask us
14	Plug Yoke Adjusting P/N 20X-4222 PLUG YOKE ADJUSTING PART OF KIT P/N 90-2206 Fits: All models	1	Ask us
15	Gasket Plug P/N MFY-63 GASKET PLUG PART OF KIT P/N 90-2206 Fits: All models	1	Ask us
16	Plug Yoke Adjusting P/N MES-61 PLUG YOKE ADJUSTING PART OF KIT P/N 90-2206 Fits: All models	1	Ask us
17	Pinion Star Housing NSN 2920-01-290-9245 · P/N PS-1475SS HOUSING,PINION,STAR Fits: All models	1	4 in stock $100–$165 eachtypical
18	Sleeve Bearing NSN 3120-00-450-1905 · P/N MEL50 BEARING,SLEEVE Fits: All models	1	20 in stock
19	Screw Hex HD P/N 8X-4678 SCREW HEX HD PART OF KIT P/N 90-2836 Fits: All models	7	Ask us
20	Electrical Solenoid NSN 5945-01-210-1299 · P/N SAT4108UT SOLENOID,ELECTRICAL Fits: All models	1	207 in stock $224.37our price Buy online ↗
21	Solenoid Core Assembly NSN 2920-01-184-1054 · P/N SAV-1008A CORE ASSEMBLY,SOLEN Fits: All models	1	We can source it $45–$85 eachtypical
22	Nut P/N 8X-1681 NUT PART OF KIT P/N 90-2206 Fits: All models	1	Ask us
23	Snap Ring Core End P/N 6X-4336 SNAP RING CORE END PART OF KIT P/N 90-816 Fits: All models	1	Ask us
24	Retainer Core P/N SAT-48 RETAINER CORE PART OF KIT P/N 90- 816 Fits: All models	1	Ask us
25	Spring Core P/N SAT-52 SPRING CORE PART OF KIT P/N 90-816 Fits: All models	1	Ask us
26	Retainer Core P/N SAT-47 RETAINER CORE PART OF KIT P/N 90- 816 Fits: All models	1	Ask us
27	Boot P/N IPD8S5128 BOOT PART OF KIT P/N 90-816 Fits: All models	1	Ask us
28	Solenoid Washer P/N SAT-46 WASHER,SOLENOID PART OF KIT P/N 90- 816 Fits: All models	1	Ask us
29	Lock Washer NSN 5310-01-250-7844 · P/N X-3331 WASHER,LOCK Fits: All models	1	We can source it
30	Machine Screw NSN 5305-00-990-6444 · P/N MS35207-261 SCREW,MACHINE #10-32 X 3/8 Fits: All models	1	307 in stock
31	Cover and Contact P/N SAT-1004F COVER AND CONTACT PART OF KIT P/N SAT-1004FS Fits: All models	1	Ask us
32	Gasket P/N SAT-32 GASKET PART OF KIT P/N SAT-1004FS PART OF KIT P/N 37-123A Fits: All models	1	Ask us
33	Nut Hexagon Elastic P/N X-3508 NUT HEXAGON ELASTIC PART OF KIT P/N 90-2225 Fits: All models	1	Ask us
34	Washer Plain P/N 8X-349 WASHER PLAIN #10 PART OF KIT P/N 90-2225 Fits: All models	1	Ask us
35	Contact Assembly P/N SAT-1014B CONTACT ASSEMBLY PART OF KIT P/N 90 -2225 Fits: All models	1	Ask us
36	Spring P/N SS-88A SPRING PART OF KIT P/N 90-2225 Fits: All models	1	Ask us
37	Washer Steel P/N SAT-40 WASHER STEEL #10 PART OF KIT P/N 90-2225 Fits: All models	1	Ask us
38	Motor Armature P/N MBD-2566 ARMATURE,MOTOR Fits: All models	1	Ask us
39	Thrust Washer P/N GK-174A THRUST WASHER 0.0659 THICK PART OF KIT P/N 90-2840 Fits: All models	1	Ask us
40	Thrust Washer P/N ML-128A THRUST WASHER .15 THICK PART OF KIT P/N 90-2840 Fits: All models	8	Ask us
41	Gasket NSN 5330-00-138-0251 · P/N MES-95S GASKET Fits: All models	2	8 in stock
42	Frame and Field Asy P/N MFY-2101SS FRAME AND FIELD ASY Fits: All models	2	Ask us
43	Machine Screw NSN 5305-00-989-7434 · P/N MS35207-263 SCREW,MACHINE #10-32 X 1/2 Fits: All models	2	We can source it
44	Flat Washer NSN 5310-01-214-7784 · P/N MZ-414S WASHER,FLAT Fits: All models	2	We can source it
45	Electrical Contact Brush Holder NSN 5977-01-324-6323 · P/N MFY-1064B HOLDER,ELECTRICAL C Fits: All models	1	We can source it $50–$90 eachtypical
46	Brush Starter Motor P/N MFJ-13A BRUSH STARTER MOTOR PART OF KIT P/N MFJ-2012BS Fits: All models	4	Ask us
47	Machine Screw NSN 5305-00-990-6444 · P/N MS35207-261 SCREW,MACHINE #10-32 X 3/8 Fits: All models	2	307 in stock
48	Spring Brush P/N MFY-19 SPRING BRUSH PART OF KIT P/N MFY- 19S Fits: All models	4	Ask us
49	Plain Hexagon Nut NSN 5310-00-934-9751 · P/N MS35650-302 NUT,PLAIN,HEXAGON #10-32 Fits: All models	2	700 in stock
50	Lock Washer NSN 5310-01-214-4955 · P/N 92-2923 WASHER,LOCK #10 Fits: All models	2	We can source it
51	Machine Screw NSN 5305-00-889-3002 · P/N MS35206-242 SCREW,MACHINE #8-32 X 3/8 Fits: All models	3	835 in stock
52	Seal P/N XA-744AP SEAL,O-RING STARTER PART OF KIT P/N 8S4680 Fits: All models	3	Ask us
53	Bushing Insulating P/N MAW-37 BUSHING INSULATING PART OF KIT P/N 90-2837 Fits: All models	1	Ask us
54	Neoprene Washer P/N MBD-444 WASHER,NEOPRENE PART OF KIT P/N 90- 2837 Fits: All models	1	Ask us
55	Washer Insulating P/N MBD-438 WASHER INSULATING PART OF KIT P/N 90 -2837 Fits: All models	1	Ask us
56	Cap Starter Washer P/N MBD-442 WASHER,CAP,STARTER PART OF KIT P/N 90-2837 Fits: All models	1	Ask us
57	Washer Plain P/N MZ-294 WASHER PLAIN PART OF KIT P/N 90-2837 Fits: All models	1	Ask us
58	Washer Lock P/N 12X-201 WASHER LOCK PART OF KIT P/N 90-2837 Fits: All models	4	Ask us
59	Hexagon Nut P/N 8X-179 NUT,HEXAGON 3/8-16 PART OF KIT P/N 90-2837 Fits: All models	1	Ask us
60	Starter Motor Bracket NSN 5342-01-211-5327 · P/N 5741120 BRACKET,STARTER MOT Fits: All models	1	We can source it
61	Hexagon Nut P/N 8X-830 NUT,HEXAGON 3/8-16 PART OF KIT P/N 90-2837 Fits: All models	4	Ask us
62	Washer Insulating P/N X-3925SC WASHER INSULATING PART OF KIT P/N 90 -2837 Fits: All models	1	Ask us
63	Plain Washer P/N MBD-439 WASHER,PLAIN 3/8 PART OF KIT P/N 90 -2837 Fits: All models	1	Ask us
64	Terminal Stud P/N MBD-233B STUD,TERMINAL PART OF KIT P/N 90- -2837 Fits: All models	1	Ask us
65	Screw Machine P/N 19X-4632 SCREW MACHINE #10-32 XN 3/4 PART OF KIT P/N 90-2836 Fits: All models	4	Ask us
66	Terminal Stud P/N MFY-21 STUD,TERMINAL PART OF KIT P/N 90- 2837 Fits: All models	1	Ask us
67	Commutator NSN 2920-01-212-4976 · P/N MFY1102S END PLATE Fits: All models	1	1 in stock $30–$60 eachtypical
68	Felt Oil Retainer P/N MAD-110A FELT OIL RETAINER PART OF KIT P/N 90-2838 Fits: All models	1	Ask us
69	ABS Bronze Bearing P/N MFY-117 BEARING,ABS BRONZE PART OF KIT P/N 90-2838 Fits: All models	1	Ask us
70	Terminal Stud P/N MFJ-28A STUD,TERMINAL PART OF KIT P/N 90- 2837 Fits: All models	1	Ask us
71	Insulating Washer P/N MES-71A WASHER,INSULATING PART OF KIT P/N 90-2837 Fits: All models	1	Ask us
72	Insulating Bushing P/N MES-72 BUSHING,INSULATING PART OF KIT P/N 90-2837 Fits: All models	1	Ask us
73	Neoprene Washer P/N MES-94 WASHER,NEOPRENE PART OF KIT P/N 90- 2837 Fits: All models	1	Ask us
74	Insulating Washer P/N MES-93 WASHER,INSULATING PART OF KIT P/N 90 -2837 Fits: All models	1	Ask us
75	Cap Washer P/N MES-91 WASHER,CAP PART OF KIT P/N 90-2837 Fits: All models	1	Ask us
76	Screw Hex HD P/N 37X-4914 SCREW HEX HD 1/4-20 X 3/8 PART OF KIT P/N 90-2836 Fits: All models	4	Ask us
77	Plain Washer P/N MES-78A WASHER,PLAIN PART OF KIT P/N 90-2837 Fits: All models	1	Ask us
78	Hexagon Nut P/N 19X-3437 NUT,HEXAGON 1/2-13 PART OF KIT P/N 90-2837 Fits: All models	1	Ask us
79	Solenoid Bracket NSN 2920-01-211-4935 · P/N MFY-109 BRACKET,SOLENOID Fits: All models	1	4 in stock $55–$105 eachtypical
80	Washer Lock P/N 12X-198 WASHER LOCK PART OF KIT P/N 90-2837 Fits: All models	2	Ask us
81	Hexagon Nut P/N 8X-3439 NUT,HEXAGON 1/2-13 PART OF KIT P/N 90-2837 Fits: All models	3	Ask us

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
