HMMWV Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Front Bumper TM 9-2320-280-24P · Fig. 441

Every part in figure 441 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 16 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

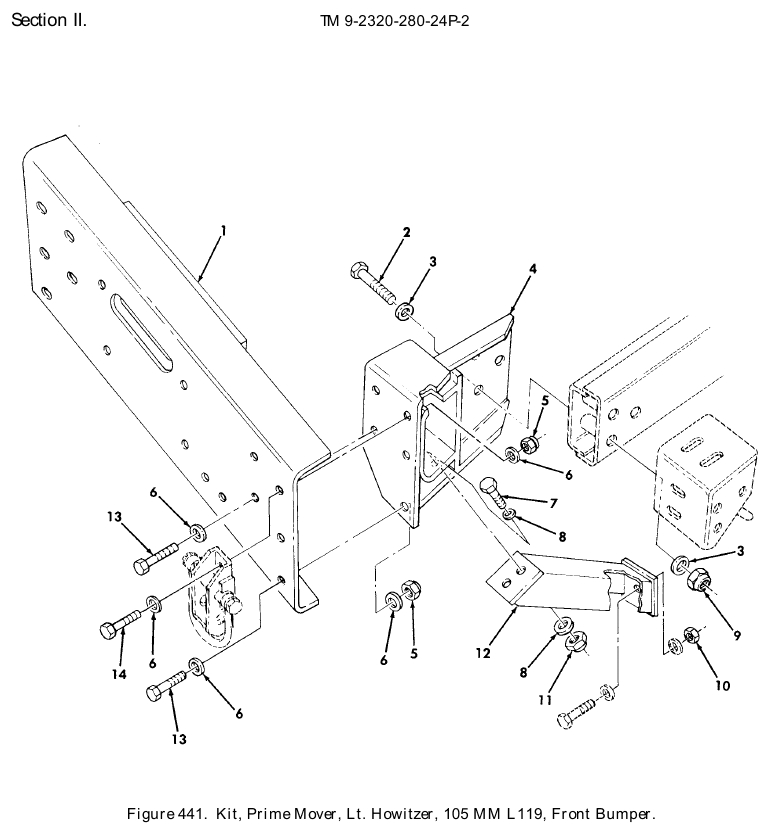

TM 9-2320-280-24P figure 441, Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Front Bumper: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Bumper NSN 2540-01-361-8206 · P/N 12342395 BUMPER,VEHICULAR PART OF KIT P/N 57K1628 Fits: M1097	1	66 in stock $125.00our price Buy online ↗
2	Cap Hexagon Head Screw NSN 5305-01-111-2774 · P/N 9428039 SCREW,CAP,HEXAGON H 5/8-11 X 3.75, PART OF KIT P/N 57K1628 Fits: M1097	6	We can source it
3	Flat Washer NSN 5310-01-151-7347 · P/N 2436167 WASHER,FLAT 5/8,PART OF KIT P/N 57K1628 Fits: M1097	12	We can source it
4	Structural Vehicul Frame Section NSN 2510-01-358-1178 · P/N 12342387 FRAME SECTION,STRU L.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	2 in stock $115.60 per eachgov't list price
4	Structural Vehicul Frame Section NSN 2510-01-357-8789 · P/N 12342388 FRAME SECTION,STRU R.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	2 in stock quote only $90–$150 eachtypical
5	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13,PART OF KIT P/N 57K1628 Fits: M1097	10	1,713 in stock
6	Flat Washer NSN 5310-01-121-1703 · P/N 2310-0143-001 WASHER,FLAT 1/2,PART OF KIT P/N 57K1628 Fits: M1097	16	2,218 in stock
7	Cap Hexagon Head Screw NSN 5305-01-104-4846 · P/N 9427321 SCREW,CAP,HEXAGON H 3/8-16 X 1/8, PART OF KIT P/N 57K1628 Fits: M1097	4	We can source it
8	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8,PART OF KIT P/N 57K1628 Fits: M1097	8	1,146 in stock $7.83our price Buy online ↗
9	Self-Locking Hexagon Nut NSN 5310-00-061-4651 · P/N MS51943-43 NUT,SELF-LOCKING,HE 5/8-11,PART OF KIT P/N 57K1628 Fits: M1097	6	256 in stock
10	Self-Locking Hexagon Nut NSN 5310-00-409-3333 · P/N MS51943-45 NUT,PLAIN,HEXAGON 3/4-10,PART OF KIT P/N 57K1628 Fits: M1097	2	5,754 in stock
11	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16,PART OF KIT P/N 57K1628 Fits: M1097	4	219 in stock
12	Structural Vehicul Frame Section NSN 2510-01-358-1176 · P/N 12342389 FRAME SECTION,STRU L.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	2 in stock $40–$75 eachtypical
12	Structural Vehicul Frame Section NSN 2510-01-358-1177 · P/N 12342390 FRAME SECTION,STRU R.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	1 in stock $55–$105 eachtypical
13	Machine Bolt NSN 5305-01-360-1125 · P/N 455000 BOLT,MACHINE 1/2-13 X 1.25,PART OF KIT P/N 57K1628 Fits: M1097	6	80 in stock
14	Cap Hexagon Head Screw NSN 5305-00-071-2070 · P/N B1821BH050C175N SCREW,CAP,HEXAGON H 1/2-13 X 1.75, PART OF KIT P/N 57K1628 Fits: M1097	4	4,200 in stock $52.99our price Buy online ↗

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
