HMMWV Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Rear Bumper TM 9-2320-280-24P · Fig. 442

Every part in figure 442 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 24 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

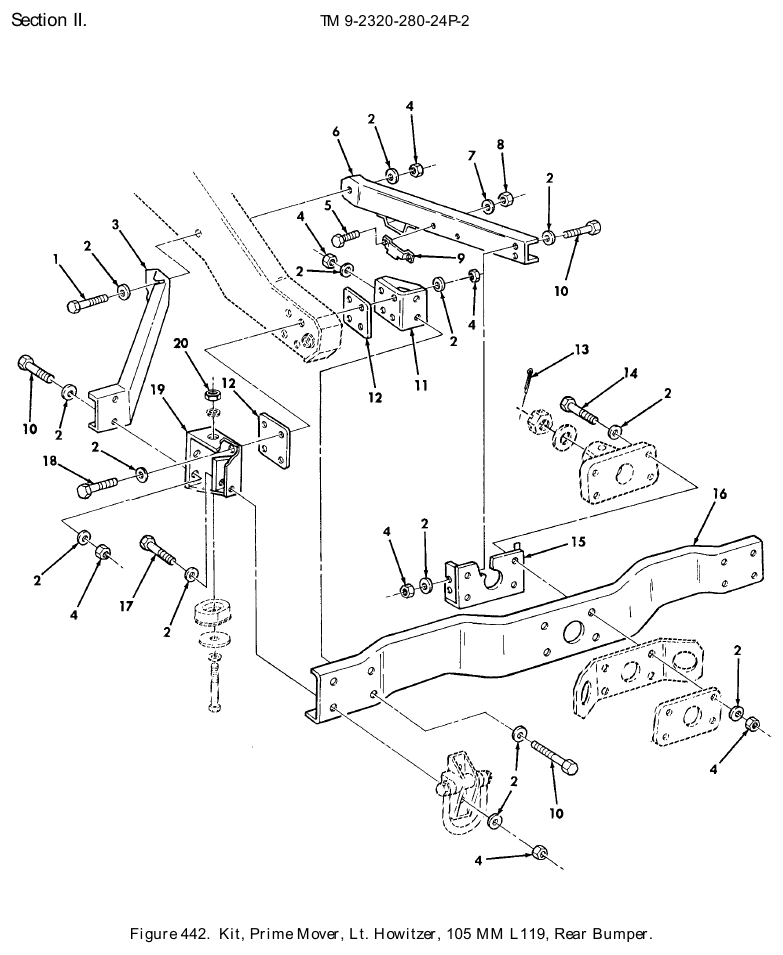

TM 9-2320-280-24P figure 442, Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Rear Bumper: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5305-01-360-1128 · P/N 455006 BOLT,MACHINE 1/2-13 X 3.75,PART OF KIT P/N 57K1628 Fits: M1097	2	30 in stock
2	Flat Washer NSN 5310-01-121-1703 · P/N 2310-0143-001 WASHER,FLAT 1/2,PART OF KIT P/N 57K1628 Fits: M1097	60	2,218 in stock
3	Vehicular Components Bracket NSN 2590-01-361-8087 · P/N 12342522 BRACKET,VEHICULAR REAR BUMPER, OUTER,L.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $162.13 per eachgov't list price
3	Vehicular Components Bracket NSN 2590-01-361-8088 · P/N 12342540 BRACKET,VEHICULAR REAR BUMPER, OUTER,R.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $65–$110 eachtypical
4	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13,PART OF KIT P/N 57K1628 Fits: M1097	30	1,713 in stock
5	Cap Hexagon Head Screw NSN 5305-01-185-8674 · P/N 9421294 SCREW,CAP,HEXAGON H #10-24 X 1/2, PART OF KIT P/N 57K1628 Fits: M1097	4	301 in stock
6	Vehicular Components Bracket NSN 2590-01-360-5414 · P/N 12342516 BRACKET,VEHICULAR C REAR BUMPER, INNER,L.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $324.38 per eachgov't list price
6	Vehicular Components Bracket NSN 2590-01-360-5413 · P/N 12342517 BRACKET,VEHICULAR C REAR BUMPER, INNER,R.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $223.27 per eachgov't list price
7	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10,PART OF KIT P/N 57K1628 Fits: M1097	4	709 in stock
8	Plain Hexagon Nut NSN 5310-00-734-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON #10-24,PART OF KIT P/N 57K1628 Fits: M1097	4	We can source it quote only
9	Vehicular Components Bracket NSN 2590-01-360-9537 · P/N 12342539 BRACKET,VEHICULAR C PART OF KIT P/N 57K1628 Fits: M1097	2	We can source it $50–$85 eachtypical
10	Machine Bolt NSN 5305-01-360-1125 · P/N 455000 BOLT,MACHINE 1/2-13 X 1.25,PART OF KIT P/N 57K1628 Fits: M1097	12	80 in stock
11	Vehicular Components Bracket NSN 2590-01-360-5412 · P/N 12342520 BRACKET,VEHICULAR C REAR BUMPER MOUNT,INNER,L.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $105.50 per eachgov't list price
11	Vehicular Components Bracket NSN 2590-01-360-9536 · P/N 12342521 BRACKET,VEHICULAR C REAR BUMPER MOUNT,INNER,R.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $165.09 per eachgov't list price
12	Mounting Plate NSN 5340-01-360-2020 · P/N 12342750 PLATE,MOUNTING PART OF KIT P/N 57K1628 Fits: M1097	4	We can source it $25–$60 eachtypical
13	Cotter Pin NSN 5315-00-846-0126 · P/N MS24665-628 PIN,COTTER 1/4 X 3.00,PART OF KIT P/N 57K1628 Fits: M1097	1	85 in stock
14	Machine Bolt NSN 5306-01-360-1126 · P/N 455002 BOLT,MACHINE 1/2-13 X 2.50,PART OF KIT P/N 57K1628 Fits: M1097	4	We can source it $30–$65 eachtypical
15	Vehicular Components Bracket NSN 2590-01-364-1534 · P/N 12342523 BRACKET,VEHICULAR PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $259.40 per eachgov't list price
16	Vehicular Bumper NSN 2540-01-360-2482 · P/N 12342515 BUMPER,VEHICULAR REAR,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $2,506.41 per eachgov't list price
17	Machine Bolt NSN 5306-01-360-1127 · P/N 455004 BOLT,MACHINE 1/2-13 X 3.00,PART OF KIT P/N 57K1628 Fits: M1097	4	We can source it $35–$70 eachtypical
18	Machine Bolt NSN 5306-01-186-5369 · P/N 9415560 BOLT,MACHINE 1/2-13 X 3.00,PART OF KIT P/N 57K1628 Fits: M1097	8	We can source it
19	Vehicular Components Bracket NSN 2590-01-360-5411 · P/N 12342518 BRACKET,VEHICULAR C REAR BUMPER MOUNT,OUTER,L.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $216.44 per eachgov't list price
19	Vehicular Components Bracket NSN 2590-01-363-2084 · P/N 12342519 BRACKET,VEHICULAR C REAR BUMPER MOUNT,OUTER,R.H.,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $299.33 per eachgov't list price
20	Self-Locking Hexagon Nut NSN 5310-00-061-4651 · P/N MS51943-43 NUT,SELF-LOCKING 5/8-11,PART OF KIT P/N 57K1628 Fits: M1097	2	256 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
