HMMWV Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Winch TM 9-2320-280-24P · Fig. 443

Every part in figure 443 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 18 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

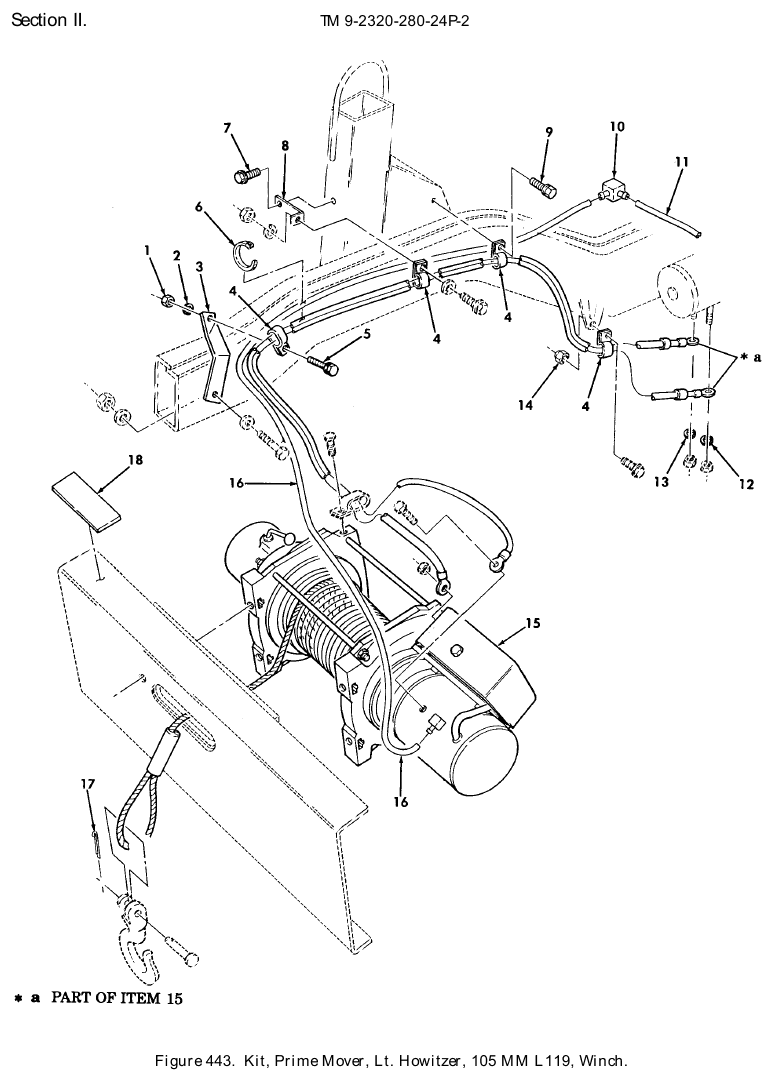

TM 9-2320-280-24P figure 443, Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Winch: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Hexagon Nut NSN 5310-00-905-0762 · P/N MS51967-3 NUT,PLAIN,HEXAGON 1/4-20,PART OF KIT P/N 57K1628 Fits: M1097	2	We can source it
2	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4,PART OF KIT P/N 57K1628 Fits: M1097	2	4,285 in stock
3	Double Angle Bracket NSN 5340-01-266-9173 · P/N 12338481 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it
4	Loop Clamp NSN 5340-00-438-1833 · P/N 7721654 CLAMP,LOOP PART OF KIT P/N 57K1628 Fits: M1097	4	We can source it
5	Machine Screw NSN 5305-00-489-0743 · P/N 9415477 SCREW,MACHINE 1/4-20 X 0.75,PART OF KIT P/N 57K1628 Fits: M1097	2	We can source it
6	Tie Down Electrical Compon Strap NSN 5975-01-205-5379 · P/N MS3367-7 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K1628 Fits: M1097	4	99 in stock
7	Tapping Screw NSN 5305-01-101-3312 · P/N MS51851-126 SCREW,TAPPING 3/8-16 X 0.75,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it
8	Angle Bracket NSN 5340-01-192-2256 · P/N 12338663 BRACKET PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it
9	Tapping Screw NSN 5305-00-191-3640 · P/N MS51851-85 SCREW,TAPPING 1/4-20 X 0.62,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it
10	Hose Tee NSN 4730-01-003-5105 · P/N 1064X4 TEE,HOSE PART OF KIT P/N 57K1628 Fits: M1097	1	5 in stock
11	Nonmetallic Make From Tube Tubing P/N CPR104420-1-2 TUBING,NONMETALLIC MAKE FROM TUBE, P/N CPR104420-1,2 INCHES LONG,PART OF KIT P/N 57K1628 Fits: M1097	1	Ask us
12	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8,PART OF KIT P/N 57K1628 Fits: M1097	1	1,162 in stock
13	Lock Washer NSN 5310-01-216-7390 · P/N MS51415-9 WASHER,LOCK 1/2,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it
14	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS PART OF KIT P/N 57K1628 Fits: M1097	1	570 in stock
15	Drum Vehicle Mounting Winch NSN 2520-01-179-7602 · P/N 12339723 WINCH,DRUM PART OF KIT P/N 57K1628 Fits: M1097	1	5 in stock $6,289.14 per kitgov't list price
16	Nonmetallic Make From Tube Tubing P/N CPR104420-1-70 TUBING,NONMETALLIC MAKE FROM TUBE, P/N CPR104420-1,70 INCHES LONG,PART OF KIT P/N 57K1628 Fits: M1097	1	Ask us
17	Cotter Pin NSN 5315-00-839-5822 · P/N MS24665-353 PIN,COTTER 0.120 X 1.13,PART OF KIT P/N 57K1628 Fits: M1097	1	1,203 in stock $14.70our price Buy online ↗
18	Decal NSN 7690-01-264-6536 · P/N 12340923 DECAL PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
