HMMWV Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Winch Control and Storage Box TM 9-2320-280-24P · Fig. 444

Every part in figure 444 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 9 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

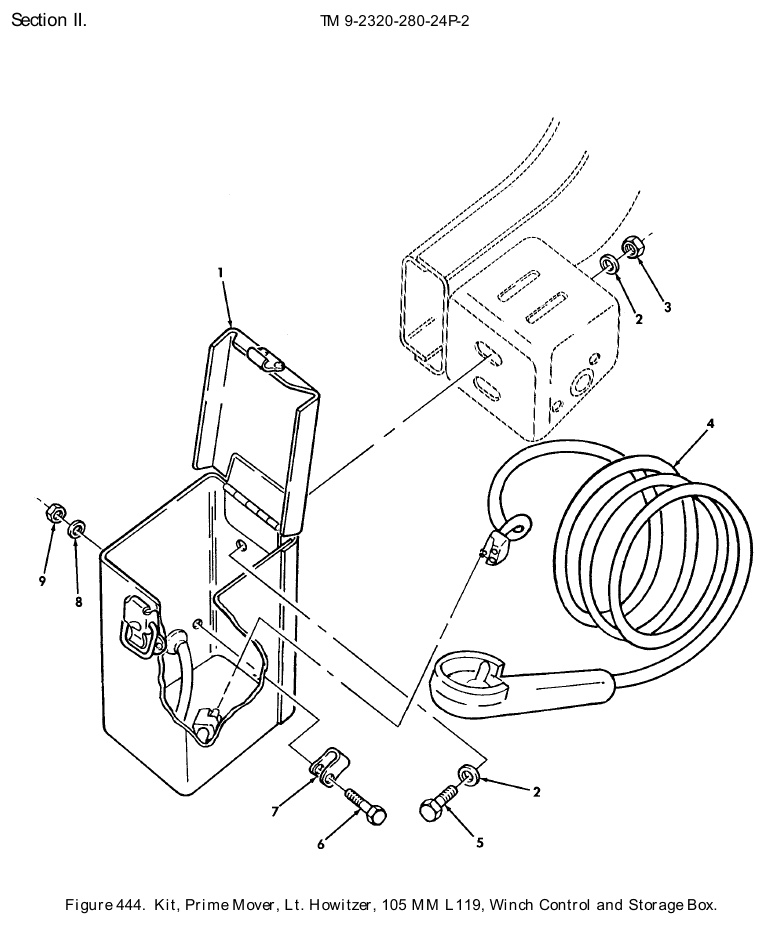

TM 9-2320-280-24P figure 444, Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Winch Control and Storage Box: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Accessories Stowage Box NSN 2540-01-209-6838 · P/N 12338489-1 BOX ACCESSORIES STO PART OF KIT P/N 57K1628 Fits: M1097	1	12 in stock $158.27 per assemblygov't list price
2	Flat Washer NSN 5310-01-121-1703 · P/N 2436165 WASHER,FLAT 1/2,PART OF KIT P/N 57K1628 Fits: M1097	4	2,218 in stock
3	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING 1/2-13,PART OF KIT P/N 57K1628 Fits: M1097	2	1,713 in stock
4	Winch Control Handle NSN 2590-01-214-1566 · P/N 12338495 CONTROL HANDLE PART OF KIT P/N 57K1628 Fits: M1097	1	20 in stock $638.77 per eachgov't list price
5	Machine Bolt NSN 5306-00-844-0036 · P/N 427566 BOLT,MACHINE 1/2-13 X 1.50,PART OF KIT P/N 57K1628 Fits: M1097	2	4 in stock $25–$40 eachtypical
6	Machine Screw NSN 5305-00-489-0743 · P/N 9415477 SCREW,MACHINE 1/4-20 X .750,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it
7	Loop Clamp NSN 5340-00-809-1492 · P/N MS21333-100 CLAMP,LOOP PART OF KIT P/N 57K1628 Fits: M1097	1	109 in stock
8	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4,PART OF KIT P/N 57K1628 Fits: M1097	1	4,285 in stock
9	Plain Hexagon Nut NSN 5310-00-905-0762 · P/N MS51967-3 NUT,PLAIN,HEXAGON 1/4-20,PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
