HMMWV Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Trailer Receptacle and Body Wiring Harness TM 9-2320-280-24P · Fig. 445

Every part in figure 445 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 13 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

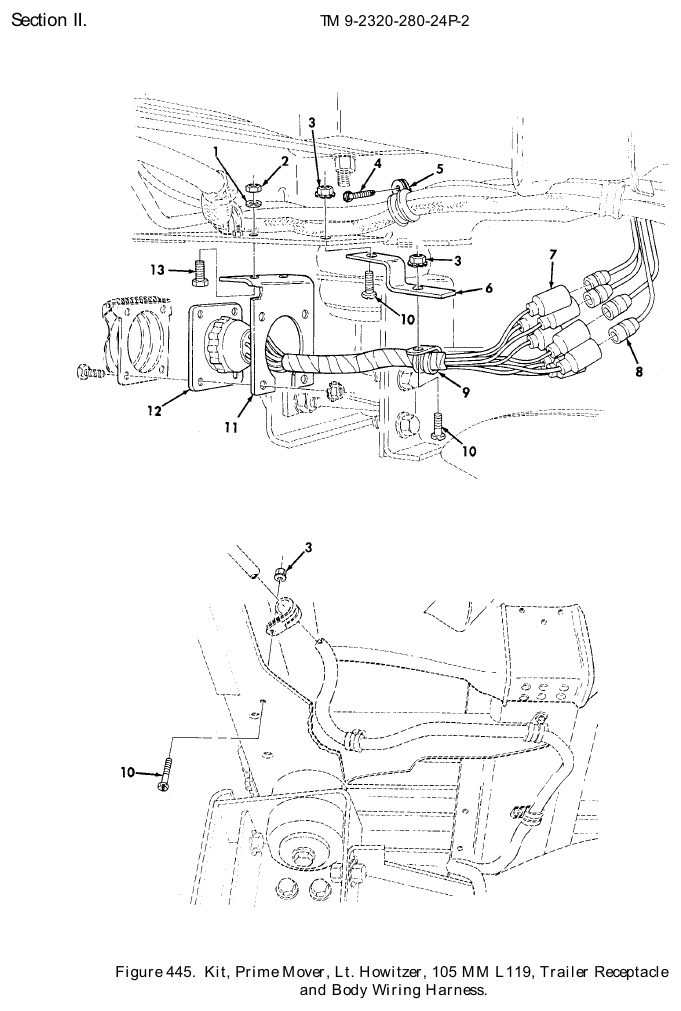

TM 9-2320-280-24P figure 445, Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Trailer Receptacle and Body Wiring Harness: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16,PART OF KIT P/N 57K1628 Fits: M1097	2	471 in stock
2	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING 5/16-18,PART OF KIT P/N 57K1628 Fits: M1097	2	354 in stock
3	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN ASSEMBLED #10-32,PART OF KIT P/N 57K1628 Fits: M1097	3	474 in stock
4	Machine Screw NSN 5305-01-285-4234 · P/N 9414241 BOLT,ASSEMBLED WASH #10-32 X .62, PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it
5	Loop Clamp NSN 5340-00-989-9222 · P/N MS21333-74 CLAMP,LOOP PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it
6	Double Angle Bracket NSN 5340-01-360-1189 · P/N 12342668 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K1628 Fits: M1097	1	2 in stock $25.99our price Buy online ↗
7	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC PART OF KIT P/N 57K1628 Fits: M1097	2	19 in stock
8	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC PART OF KIT P/N 57K1628 Fits: M1097	7	35 in stock
9	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP PART OF KIT P/N 57K1628 Fits: M1097	1	19 in stock
10	Cap Hexagon Head Screw NSN 5305-00-018-7838 · P/N 187838 SCREW,CAP,HEXAGON H #10-32 X 5/8, PART OF KIT P/N 57K1628 Fits: M1097	3	We can source it
11	Angle Bracket NSN 5340-01-314-4951 · P/N 12338696-1 BRACKET,ANGLE PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $25–$40 eachtypical
12	Wiring Harness NSN 6150-01-366-2916 · P/N 12342667 WIRING,HARNESS PART OF IT P/N 57K1628 Fits: M1097	1	1 in stock $501.77 per eachgov't list price
13	Machine Bolt NSN 5306-00-226-4827 · P/N B1821BH031C100N BOLT,MACHINE 5/16-18 X 1 PART OF KIT P/N 57K1628 Fits: M1097	2	292 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
