HMMWV Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Ammo Rack and Sight Boxes Stowage TM 9-2320-280-24P · Fig. 446

Every part in figure 446 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 36 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

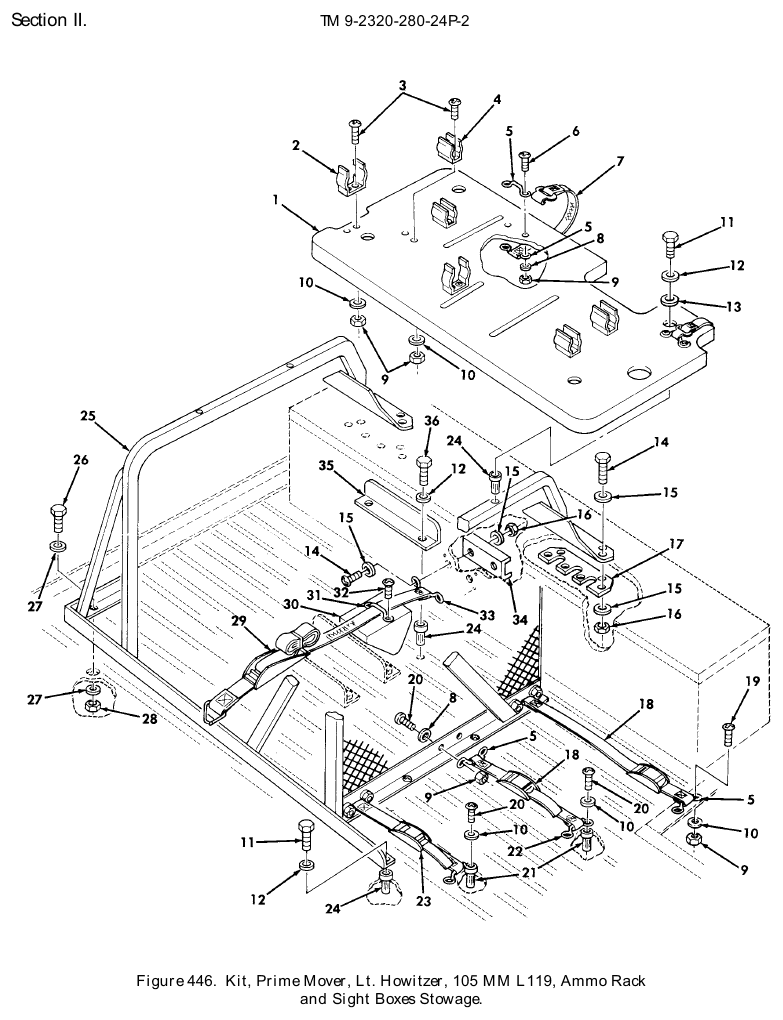

TM 9-2320-280-24P figure 446, Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Ammo Rack and Sight Boxes Stowage: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tray P/N 12342595 TRAY,AMMO GUARD TOP MAKE FROM PLYWOOD,P/N MIL-P-18066,.750 THICK, PART OF KIT P/N 57K1628 Fits: M1097	1	Ask us
2	Clip NSN 5340-01-360-1727 · P/N 12342584 CLIP,SPRING TENSION PART OF KIT P/N 57K1628 Fits: M1097	2	We can source it
3	Machine Screw NSN 5305-00-995-3442 · P/N MS35207-268 SCREW,MACHINE #10-32 X 1.250,PART OF KIT P/N 57K1628 Fits: M1097	12	99 in stock
4	Spring Tension Clip NSN 5340-01-359-8819 · P/N 12342585 CLIP,SPRING TENSION PART OF KIT P/N 57K1628 Fits: M1097	4	We can source it $55–$95 eachtypical
5	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER PART OF KIT P/N 57K1628 Fits: M1097	8	1 in stock
6	Machine Screw NSN 5305-00-984-7352 · P/N MS35191-278 SCREW,MACHINE #10-32 X 1.50,PART OF KIT P/N 57K1628 Fits: M1097	4	We can source it
7	Webbing Strap NSN 5340-01-360-4909 · P/N 12339816-3 STRAP,WEBBING PART OF KIT P/N 57K1628 Fits: M1097	2	We can source it $25–$60 eachtypical
8	Flat Washer NSN 5310-00-809-8546 · P/N MS27183-8 WASHER,FLAT #10,PART OF KIT P/N 57K1628 Fits: M1097	16	4,495 in stock
9	Lock Nut NSN 5310-00-251-4503 · P/N 9411893 NUT,LOCK #10-32,PART OF KIT P/N 57K1628 Fits: M1097	24	40 in stock
10	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10,PART OF KIT P/N 57K1628 Fits: M1097	18	909 in stock
11	Lock-Release Lever NSN 5340-01-323-5509 · P/N 454838 BOLT,MACHINE PART OF KIT P/N 57K1628 Fits: M1097	10	We can source it
12	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4,PART OF KIT P/N 57K1628 Fits: M1097	16	4,285 in stock
13	Flat Washer NSN 5310-00-809-3078 · P/N MS27183-11 WASHER,FLAT 1/4,PART OF KIT P/N 57K1628 Fits: M1097	4	52 in stock
14	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N 35A2C5 SCREW,CAP,HEXAGON H 1/4-20 X 1.00, PART OF KIT P/N 57K1628 Fits: M1097	14	559 in stock
15	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4,PART OF KIT P/N 57K1628 Fits: M1097	28	351 in stock
16	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20,PART OF KIT P/N 57K1628 Fits: M1097	14	626 in stock
17	Mounting Plate NSN 5340-01-360-2979 · P/N 12342586 PLATE,MOUNTING PART OF KIT P/N 57K1628 Fits: M1097	2	We can source it $30–$70 eachtypical
18	Webbing Strap NSN 5340-01-255-2812 · P/N 12340529-16 STRAP,WEBBING PART OF KIT P/N 57K1628 Fits: M1097	2	We can source it $25–$55 eachtypical
19	Machine Screw NSN 5305-00-984-7342 · P/N MS35191-274 SCREW,MACHINE #10-32 X .750,PART OF KIT P/N 57K1628 Fits: M1097	2	196 in stock
20	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE #10-32 X .750,PART OF KIT P/N 57K1628 Fits: M1097	10	55 in stock
21	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N S10P175 NUT,PLAIN,BLIND RIV #10-32,PART OF KIT P/N 57K1628 Fits: M1097	4	We can source it
22	Footman Flat Loop NSN 2510-01-199-5748 · P/N 12338839-8 LOOP,FOOTMAN,FLAT PART OF KIT P/N 57K1628 Fits: M1097	2	6 in stock
23	Webbing Strap NSN 5340-01-203-2708 · P/N 12340529-7 STRAP,WEBBING PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $25–$55 eachtypical
24	Plain Blind Rivet Nut NSN 5310-01-198-1722 · P/N 12339998-13 PLUSNUT 1/4-20,PART OF KIT P/N 57K1628 Fits: M1097	16	We can source it
25	Ammunition Stowage Rack NSN 2590-01-360-2417 · P/N 12342574 RACK,AMMUNITION STO PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it quote only $1,815.99 per eachgov't list price
26	Cap Hexagon Head Screw NSN 5305-00-071-2070 · P/N B1821BH050C175N BOLT,HEXAGON HEAD 1/2-13 X 1.75, PART OF KIT P/N 57K1628 Fits: M1097	1	4,200 in stock $52.99our price Buy online ↗
27	Flat Washer NSN 5310-00-167-0823 · P/N AN960-816 WASHER,FLAT 1/2,PART OF KIT P/N 57K1628 Fits: M1097	2	500 in stock
28	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING 1/2-13,PART OF KIT P/N 57K1628 Fits: M1097	1	1,713 in stock
29	Webbing Strap NSN 5340-01-360-1887 · P/N 12342594 STRAP,WEBBING PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $40–$75 eachtypical
30	Wedge Make From Wood P/N 12342596 WEDGE MAKE FROM WOOD,P/N 13219E0079, 3.00 THICK,PART OF KIT P/N 57K1628 Fits: M1097	1	Ask us
31	Bow Handle NSN 5340-01-197-8674 · P/N 12338839-6 HANDLE,BOW PART OF KIT P/N 57K1628 Fits: M1097	7	We can source it
32	Tapping Screw NSN 5305-00-432-4254 · P/N MS51861-69 SCREW,TAPPING 1/4-13 X 1.00,PART OF KIT P/N 57K1628 Fits: M1097	2	We can source it
33	Bridge Clamp NSN 5340-01-360-9070 · P/N 12342587 CLAMP,BRIDGE PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $55–$90 eachtypical
34	Double Angle Bracket NSN 5340-01-360-1188 · P/N 12342583 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K1628 Fits: M1097	1	We can source it $25–$45 eachtypical
35	Angle Bracket NSN 5340-01-360-1784 · P/N 12342580 BRACKET,ANGLE PART OF KIT P/N 57K1628 Fits: M1097	3	We can source it $45–$90 eachtypical
36	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N 1C817P63 BOLT,HEXAGON 1/4-20 X .750,PART OF KIT P/N 57K1628 Fits: M1097	6	248 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
