HMMWV Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Telephone, Remote, and Tripod Stowage TM 9-2320-280-24P · Fig. 447

Every part in figure 447 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 9 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

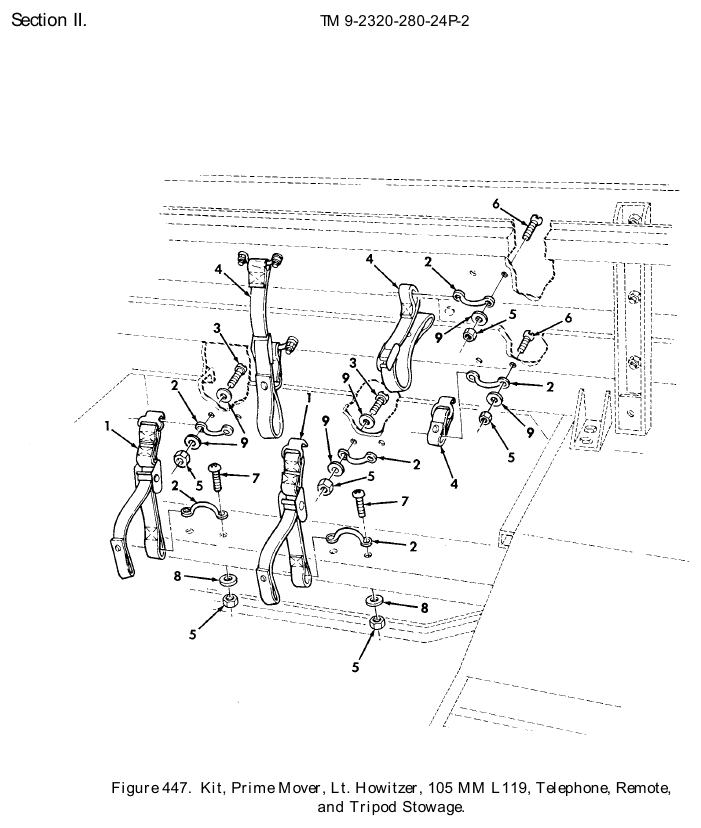

TM 9-2320-280-24P figure 447, Kit, Prime Mover, Lt. Howitzer, 105 MM L119, Telephone, Remote, and Tripod Stowage: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Webbing Strap NSN 5340-01-360-4909 · P/N 12339816-3 STRAP ASSEMBLY PART OF KIT P/N 57K1628 Fits: M1097	2	We can source it $25–$60 eachtypical
2	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP,FASTENER PART OF KIT P/N 57K1628 Fits: M1097	8	1 in stock
3	Machine Screw NSN 5305-00-989-7435 · P/N MS35207-264 SCREW,MACHINE PART OF KIT P/N 57K1628 Fits: M1097	4	We can source it
4	Webbing Strap NSN 5340-01-265-8923 · P/N 12339817-4 STRAP,WEBBING PART OF KIT P/N 57K1628 Fits: M1097	2	824 in stock $25.00our price Buy online ↗
5	Lock Nut NSN 5310-00-251-4503 · P/N 9411893 NUT,LOCK #10-32,PART OF KIT P/N 57K1628 Fits: M1097	16	40 in stock
6	Machine Screw NSN 5305-00-957-2635 · P/N MS35191-277 SCREW,MACHINE #10-32 X 1.25,PART OF KIT P/N 57K1628 Fits: M1097	8	We can source it
7	Machine Screw NSN 5305-00-984-7341 · P/N MS35191-273 SCREW,MACHINE #10-32 X 0.625,PART OF KIT P/N 57K1628 Fits: M1097	4	4,000 in stock
8	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10,PART OF KIT P/N 57K1628 Fits: M1097	4	909 in stock
9	Flat Washer NSN 5310-00-809-8546 · P/N MS27183-8 WASHER,FLAT #10,PART OF KIT P/N 57K1628 Fits: M1097	16	4,495 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
