HMMWV Instrument Panel Assembly and Mounting Hardware TM 9-2320-280-24P · Fig. 46

Every part in figure 46 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0607 Instrument or Engine Control Panel: 25 lines, 18 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

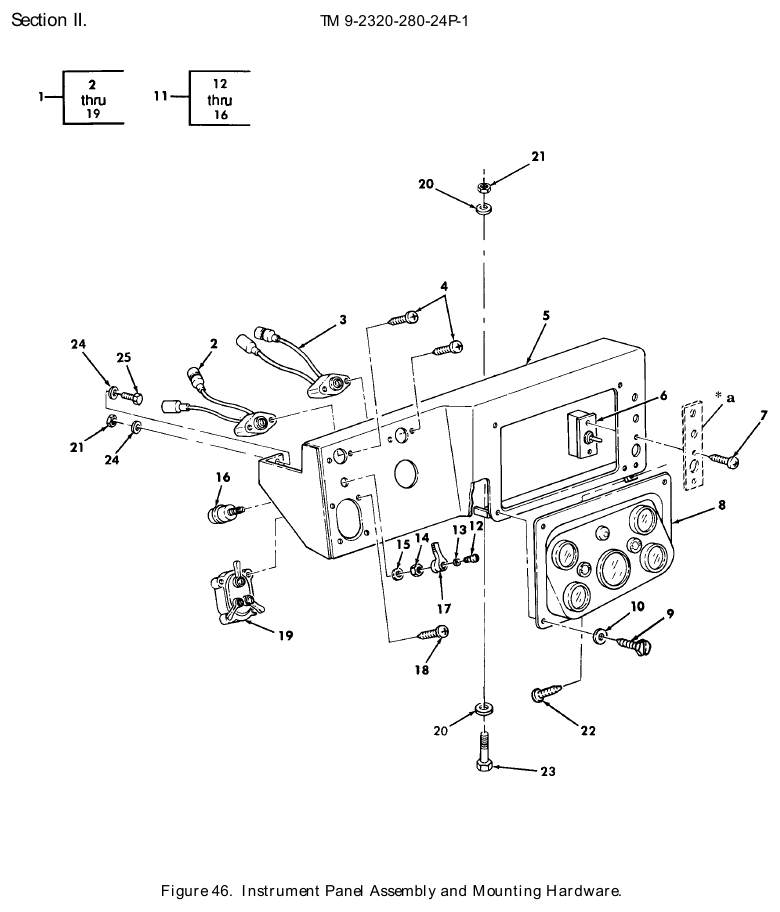

TM 9-2320-280-24P figure 46, Instrument Panel Assembly and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Operation Panel NSN 2510-01-187-2238 · P/N 12338477 PANEL,VEHICULAR OPE Fits: All models	1	We can source it quote only $6,142.34 per assemblygov't list price
2	Light Emitting Diode NSN 5980-01-186-8319 · P/N 5583395 LIGHT EMITTING DIOD AMBER Fits: All models	1	5 in stock $35–$75 eachtypical
3	Indicator Light Assembly NSN 5980-01-187-0791 · P/N 12356703-1 LIGHT EMITTING DIOD RED Fits: All models	1	34 in stock $55–$90 eachtypical
4	Tapping Screw NSN 5305-01-138-9540 · P/N MS51863-33 SCREW,TAPPING #8-32 X 3/8 Fits: All models	4	We can source it
5	Panel Instrument P/N 5581211 PANEL INSTRUMENT Fits: All models	1	Ask us
6	Toggle Switch NSN 5930-00-226-6429 · P/N MS39061-4 SWITCH,TOGGLE Fits: All models	1	3 in stock $75–$125 eachtypical
7	Assembled Washer Screw NSN 5305-01-264-5864 · P/N 186965 SCREW,ASSEMBLED WAS #10-32 X 3/4 Fits: All models	2	5,189 in stock
8	Cab Instrument Panel NSN 2540-01-185-6117 · P/N 12338466 INSTRUMENT PANEL,CA Fits: All models	1	4 in stock $1,390.87our price Buy online ↗
9	Machine Screw NSN 5305-01-187-8757 · P/N 274707 SCREW,MACHINE #10-24 X 1/2 Fits: All models	4	662 in stock
10	Flat Washer NSN 5310-00-809-8546 · P/N MS27183-8 WASHER,FLAT #10 Fits: All models	4	4,495 in stock
11	Rotary Switch NSN 5930-00-134-5036 · P/N 11614131 SWITCH,ROTARY Fits: All models	1	157 in stock quote only
12	Machine Screw NSN 5305-00-614-3423 · P/N MS35265-43 SCREW,MACHINE #8-32 X 3/8 Fits: All models	1	100 in stock
13	Lock Washer NSN 5310-00-045-3299 · P/N MS35338-42 WASHER,LOCK 1/2 Fits: All models	1	84 in stock
14	Plain Hexagon Nut NSN 5310-00-832-6852 · P/N 5381233 NUT,PLAIN,HEXAGON 1/2-20 Fits: All models	1	We can source it
15	Lock Washer NSN 5310-00-194-1483 · P/N MS35333-44 WASHER,LOCK 1/2 Fits: All models	1	200 in stock
16	Switch P/N 11614131-1 SWITCH Fits: All models	1	Ask us
17	Switch Handle NSN 5930-00-130-5349 · P/N 5381088 HANDLE,SWITCH Fits: All models	1	14 in stock $25–$40 eachtypical
18	Machine Screw NSN 5305-00-995-3440 · P/N MS35207-270 SCREW,MACHINE #10-32 X 1.75 Fits: All models	4	86 in stock
19	Switch Assembly NSN 5930-00-307-8856 · P/N MS51113-1 SWITCH ASSEMBLY Fits: All models	1	276 in stock $95.00our price Buy online ↗
20	Flat Washer NSN 5310-01-254-5352 · P/N 5593308 WASHER,FLAT 1/4 Fits: All models	2	We can source it
21	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	3	626 in stock
22	Tapping Screw NSN 5305-01-250-6583 · P/N 5592878 SCREW,TAPPING #10-24 X 1/2 Fits: All models	1	We can source it
23	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	1	248 in stock
24	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All models	4	351 in stock
25	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: All models	2	98 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
