HMMWV Kit, Pintle Extension TM 9-2320-280-24P · Fig. 453

Every part in figure 453 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 19 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

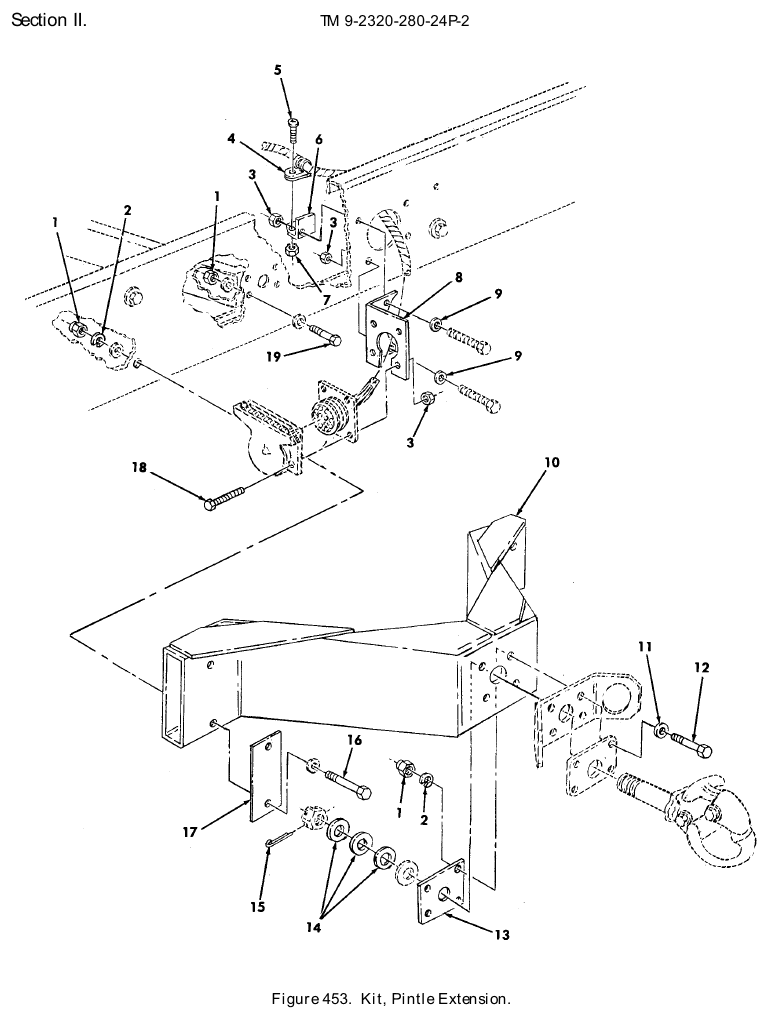

TM 9-2320-280-24P figure 453, Kit, Pintle Extension: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	12	1,713 in stock
2	Lock Washer NSN 5310-00-584-5272 · P/N ERNA245 WASHER,LOCK 1/2 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	8	833 in stock
3	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	6	570 in stock
4	Loop Clamp NSN 5340-00-057-2906 · P/N MS21333-73 CLAMP,LOOP PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	1	35 in stock
5	Machine Screw NSN 5305-00-984-6193 · P/N MS35206-245 SCREW,MACHINE .164-32 X 1/2 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	1	12 in stock
6	Angle Bracket NSN 5340-01-406-7418 · P/N 12342664 BRACKET,ANGLE PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	1	12 in stock $50–$100 eachtypical
7	Plain Assembled Washer Nut NSN 5310-01-069-5243 · P/N 271163 NUT,PLAIN,ASSEMBLED #8-32 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	1	39 in stock
8	Angle Bracket NSN 5340-01-406-6965 · P/N 12342663 BRACKET,ANGLE PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	1	8 in stock $45–$90 eachtypical
9	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	2	351 in stock
10	Pintle Extension NSN 2540-01-411-7519 · P/N 12342661 PINTLE EXTENSION PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	1	10 in stock $1,387.36 per eachgov't list price
11	Flat Washer NSN 5310-01-121-1703 · P/N 2310-0143-001 WASHER,FLAT 1/2 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	4	2,218 in stock
12	Machine Bolt NSN 5305-01-360-1128 · P/N 455006 BOLT,MACHINE 1/2-13 X 3.75 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	4	30 in stock
13	Mounting Plate NSN 5340-01-406-6964 · P/N 12342662 PLATE,MOUNTING PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	1	20 in stock $25–$45 eachtypical
14	Flat Washer NSN 5310-00-515-8776 · P/N MS20002-20 WASHER,FLAT 1-1/4 X 2.125 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	3	85 in stock
15	Cotter Pin NSN 5315-00-846-0126 · P/N MS24665-628 PIN,COTTER 1/4 X 3.00 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	1	85 in stock
16	Cap Hexagon Head Screw NSN 5305-01-411-4455 · P/N 9430516 SCREW,CAP,HEXAGON H 1/2-13 X 5-3/4 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	4	82 in stock $25–$40 eachtypical
17	Mounting Plate NSN 5340-01-407-7192 · P/N 12342665 PLATE,MOUNTING PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	2	11 in stock $30–$60 eachtypical
18	Machine Screw NSN 5305-01-016-4344 · P/N MS51849-95 SCREW,MACHINE 1/4-20 X 5/8 PART OF KIT P/N 57K1640 Fits: M1097, M1097A1, M1097A2, M1123	4	80 in stock
19	Machine Bolt NSN 5305-01-360-1125 · P/N 455000 BOLT,MACHINE 1/2-13 X 1.25 PART OF KIT P/N 57K1640 BOLT,MACHINE ( 4) 453-19 BOLT,MACHINE ( 4) 453-12 BRACKET,ANGLE ( 1) 453-8 BRACKET,ANGLE ( 1) 453-6 CLAMP,LOOP ( 1) 453-4 NUT,PLAIN,ASSEMBLED( 1) 453-7 NUT,SELF-LOCKING,HE( 12) 453-1 NUT,SELF-LOCKING,AS( 6) 453-3 PIN,COTTER ( 1) 453-15 PINTLE EXT Fits: M1097, M1097A1, M1097A2, M1123	4	80 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
