HMMWV Kit, Rear Seat Assembly TM 9-2320-280-24P · Fig. 454

Every part in figure 454 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 7 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

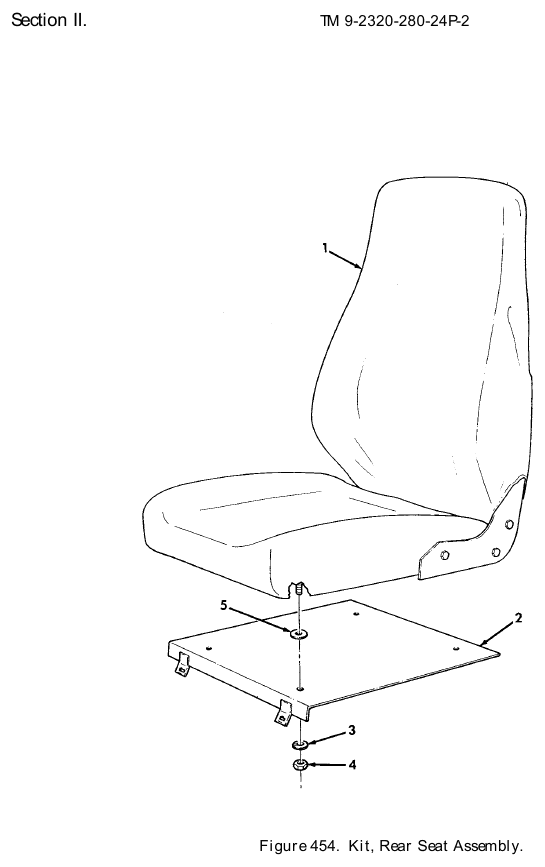

TM 9-2320-280-24P figure 454, Kit, Rear Seat Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Seat NSN 2540-01-436-4175 · P/N 8.6272-01 SEAT,VEHICULAR REAR PART OF KIT P/N 57K3196 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	63 in stock $459.13 per eachgov't list price
1	Vehicular Seat NSN 2540-01-476-9353 · P/N 8.6272-02 SEAT,VEHICULAR REAR PART OF KIT P/N 57K3197 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	2	2 in stock $379.00our price Buy online ↗
2	Seat Base Plate NSN 2540-01-477-0162 · P/N 12446966 PLATE,REAR SEAT,MNT LEFT,PART OF KIT P/N 57K3196,PART OF KIT P/N 57K3197 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	1 in stock $146.30 per eachgov't list price
2	Seat Base Plate NSN 2540-01-477-0184 · P/N 12446967 PLATE,REAR SEAT,MNT RIGHT,PART OF KIT P/N 57K3196,PART OF KIT P/N 57K3197 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	1	We can source it $166.79 per eachgov't list price
3	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK PART OF KIT P/N 57K3196, PART OF KIT P/N 57K3197 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	8	2,036 in stock
4	Plain Hexagon Nut NSN 5310-01-381-5328 · P/N 9413583 NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3196 PART OF KIT P/N 57K3197 Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	8	We can source it
5	Ring Spacer NSN 5365-01-382-0986 · P/N 12343055 SPACER,RING PART OF KIT P/N 57K3196 PART OF KIT P/N 57K3197 PLATE,REAR ( 1) 454-2 PLATE,REAR ( 1) 454-2 NUT ( 8) 454-4 SEAT,REAR ( 2) 454-1 SPACER ( 8) 454-5 WASHER ( 8) 454-3 PLATE,REAR ( 1) 454-2 PLATE,REAR ( 1) 454-2 NUT ( 8) 454-4 SEAT,R Fits: M998, M998A1, M1038, M1038A1, M1097A2, M1123	8	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
