HMMWV Kit, Man Portable Air-Defense System (MANPADS) TM 9-2320-280-24P · Fig. 455

Every part in figure 455 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 8 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

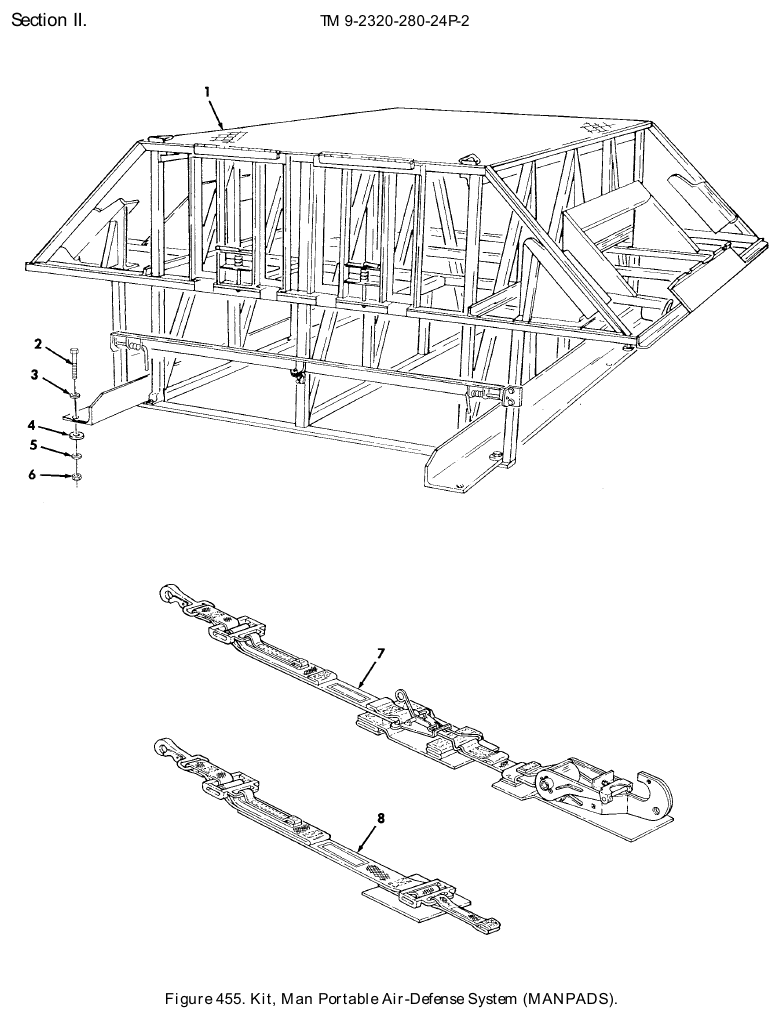

TM 9-2320-280-24P figure 455, Kit, Man Portable Air-Defense System (MANPADS): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Rack Assembly P/N 12342855 RACK ASSEMBLY,MANPA PART OF KIT P/N 57K0227 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A2 and 1 more	1	Ask us
2	Cap Hexagon Head Screw NSN 5305-00-071-2071 · P/N B1821BH050C200N SCREW,CAP,HEXAGON H 1/2-13 X 2.00, PART OF KIT P/N 57K0227 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A2 and 1 more	4	447 in stock
3	Flat Washer NSN 5310-00-809-5998 · P/N MS27183-18 WASHER,FLAT 1/2,PART OF KIT P/N 57K0227 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A2 and 1 more	4	428 in stock $27.99our price Buy online ↗
4	Sleeve Spacer NSN 5365-01-406-6336 · P/N 12342859 SPACER,RING PART OF KIT P/N 57K0227 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A2 and 1 more	4	We can source it $30–$65 eachtypical
5	Flat Washer NSN 5310-00-809-3079 · P/N MS27183-19 WASHER,FLAT 1/2,PART OF KIT P/N 57K0227 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A2 and 1 more	4	4,387 in stock
6	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13,PART OF KIT P/N 57K0227 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A2 and 1 more	4	1,713 in stock
7	Webbing Strap NSN 5340-01-408-8526 · P/N 12342884 STRAP,WEBBING PART OF KIT P/N 57K0227 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A2 and 1 more	4	We can source it $123.75 per eachgov't list price
8	Webbing Strap NSN 5340-01-406-7413 · P/N 12342883 STRAP,WEBBING PART OF KIT P/N 57K0227 NUT,SELF-LOCKING,HE( 4) 455-6 RACK ASSEMBLY,MANPA( 1) 455-1 SCREW,CAP,HEXAGON H( 4) 455-2 SPACER,RING ( 4) 455-4 STRAP,WEBBING ( 2) 455-7 STRAP,WEBBING ( 4) 455-8 WASHER,FLAT ( 4) 455-3 WASHER,FLAT ( 4) 455-5 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A2 and 1 more	2	We can source it $80–$135 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
