HMMWV Kit, 9,000 Lb Winch TM 9-2320-280-24P · Fig. 456

Every part in figure 456 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 26 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

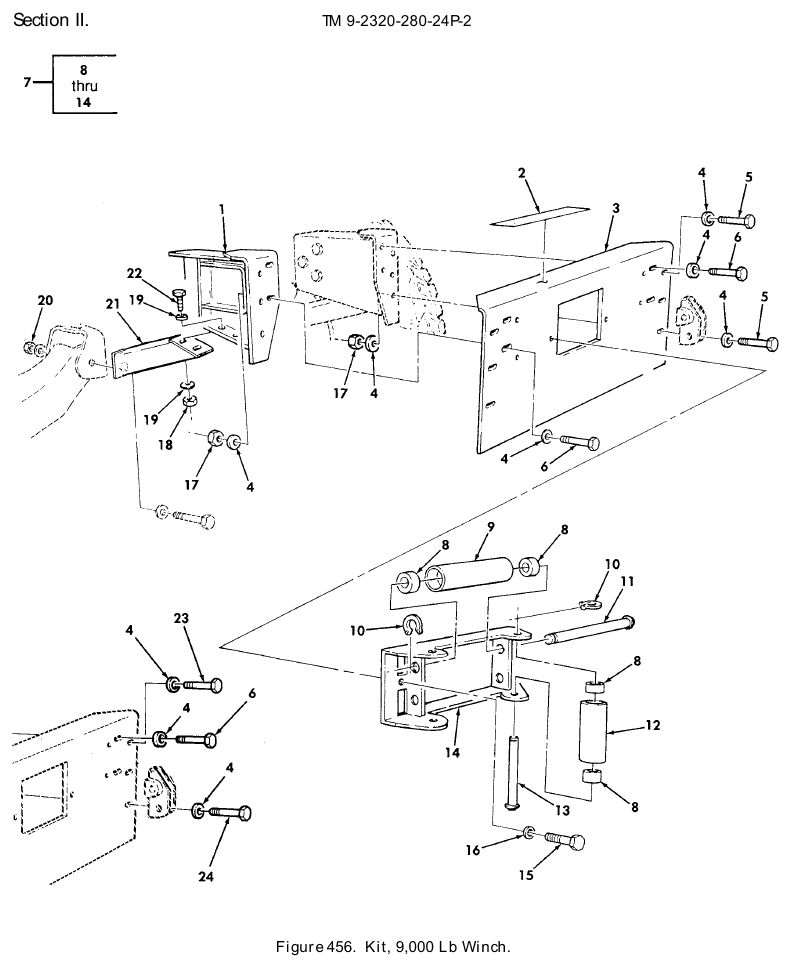

TM 9-2320-280-24P figure 456, Kit, 9,000 Lb Winch: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Structural Vehicul Frame Section NSN 2510-01-358-1178 · P/N 12342387 FRAME SECTION,STRUC L.H. PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	2 in stock $115.60 per eachgov't list price
1	Structural Vehicul Frame Section NSN 2510-01-357-8789 · P/N 12342388 FRAME SECTION,STRUC R.H. PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	2 in stock quote only $90–$150 eachtypical
2	Identification Marker NSN 7690-01-445-0444 · P/N 12447102 MARKER,IDENTIFICATI PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	1 in stock
3	Vehicular Bumper NSN 2540-01-412-8610 · P/N 12447091 BUMPER,VEHICULAR PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	6 in stock $122.50our price Buy online ↗
4	Flat Washer NSN 5310-01-121-1703 · P/N 2310-0143-001 WASHER,FLAT 1/2 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	18	2,218 in stock
5	Cap Hexagon Head Screw NSN 5305-00-071-2071 · P/N B1821BH050C200N SCREW,CAP,HEXAGON H 1/2-13 X 2.00 PART OF KIT P/N 57K3217,PART OF KIT P/N57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	6	447 in stock
6	Cap Hexagon Head Screw NSN 5305-00-071-2067 · P/N B1821BH050C125N SCREW,CAP,HEXAGON H 1/2-13 X 1.25 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	4	296 in stock
7	Vehicular Components Bracket NSN 2590-01-448-6351 · P/N 12447104 BRACKET,VEHICULAR C PART OF KIT P/N 57K0285,PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	8 in stock $369.37 per eachgov't list price
8	Sleeve Bushing NSN 3120-01-440-0043 · P/N 12447058 BUSHING,SLEEVE Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	8	We can source it $25–$50 eachtypical
9	Linear-Rotary Motion Roller NSN 3120-01-448-6269 · P/N 12447057-1 ROLLER,LINEAR-ROTAR Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	We can source it $40–$80 eachtypical
10	Retaining Ring NSN 5325-01-388-2363 · P/N MS3217-2075 RING,RETAINING Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	8	We can source it
11	Straight Shaft NSN 3040-01-477-9645 · P/N 12447060-1 SHAFT,STRAIGHT Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	We can source it
12	Linear-Rotary Motion Roller NSN 3120-01-448-6268 · P/N 12447057-2 ROLLER,LINEAR-ROTAR Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	225 in stock $45–$90 eachtypical
13	Straight Shaft NSN 3040-01-444-3350 · P/N 12447060-2 SHAFT,STRAIGHT Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	We can source it $25–$60 eachtypical
14	Vehicular Components Bracket NSN 2590-01-444-3399 · P/N 12447088 BRACKET,VEHICULAR C Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	2 in stock $50–$85 eachtypical
15	Cap Hexagon Head Screw NSN 5305-00-660-2832 · P/N MS35307-389 SCREW,CAP,HEXAGON H 7/16-14 X 1.50 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	4	We can source it $25–$40 eachtypical
16	Flat Washer NSN 5310-00-809-4085 · P/N 9420022 WASHER,FLAT 7/16 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	4	170 in stock
17	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	8	1,713 in stock
18	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	4	219 in stock
19	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	8	6 in stock
20	Self-Locking Hexagon Nut NSN 5310-00-409-3333 · P/N MS51943-45 NUT,SELF-LOCKING,HE 3/4-10 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	5,754 in stock
21	Structural Vehicul Frame Section NSN 2510-01-358-1176 · P/N 12342389 FRAME SECTION,STRUC L.H. PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	2 in stock $40–$75 eachtypical
21	Structural Vehicul Frame Section NSN 2510-01-358-1177 · P/N 12342390 FRAME SECTION,STRUC R.H. PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	1 in stock $55–$105 eachtypical
22	Cap Hexagon Head Screw NSN 5305-00-942-2196 · P/N B1821BH038C100D SCREW,CAP,HEXAGON H 3/8-16 X 1.00 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	4	14 in stock
23	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N B1821BH050C150N SCREW,CAP,HEXAGON H 1/2-13 X 1.50 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	2,205 in stock
24	Cap Hexagon Head Screw NSN 5305-00-071-2070 · P/N B1821BH050C175N SCREW,CAP,HEXAGON H 1/2-13 X 1.75 PART OF KIT P/N 57K0285 PART OF KIT P/N 57K3217 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	4	4,200 in stock $52.99our price Buy online ↗

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
