HMMWV Kit, 9,000 Lb. Winch TM 9-2320-280-24P · Fig. 457

Every part in figure 457 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 21 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

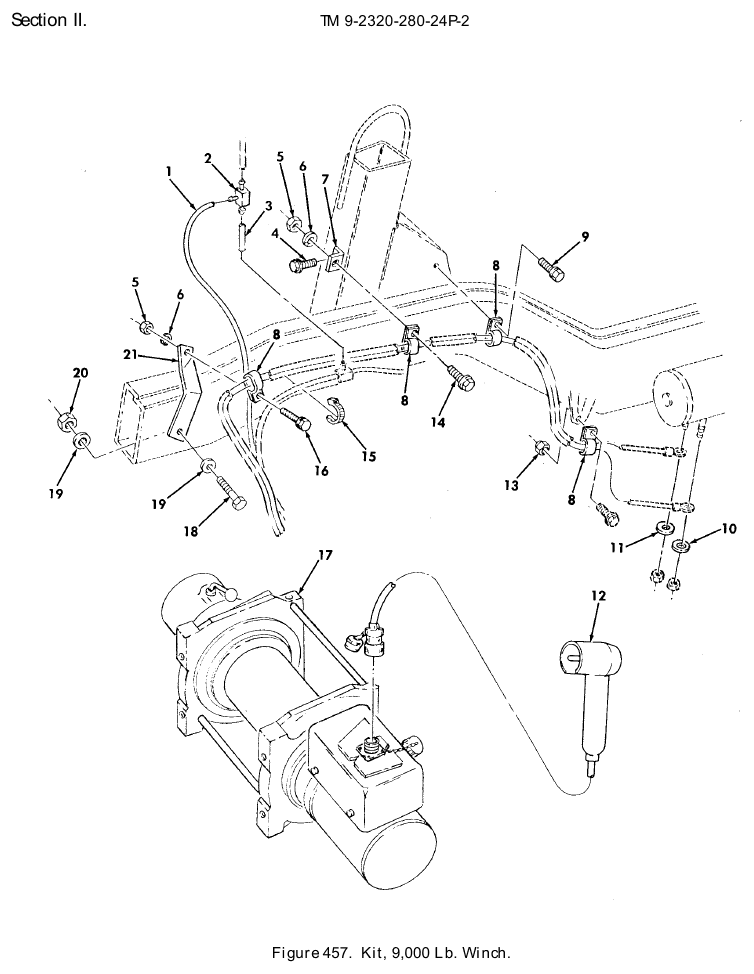

TM 9-2320-280-24P figure 457, Kit, 9,000 Lb. Winch: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tubing P/N CPR104420-1-70 TUBING,NONMETALLIC MAKE FROM TUBING ,P/N CPR104420-1,70 INCHES LONG,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	Ask us
2	Hose Tee NSN 4730-01-003-5105 · P/N 12339973-1 TEE,HOSE PART OF KIT P/N 57K3217, PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	5 in stock
3	Tubing P/N CPR104420-1-4 TUBING,NONMETALLIC MAKE FROM TUBING ,P/N CPR104420-1,4 INCHES LONG,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	Ask us
4	Tapping Screw NSN 5305-01-101-3312 · P/N MS51851-126 SCREW,TAPPING 3/8-16 X 3/4,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
5	Plain Hexagon Nut NSN 5310-00-905-0762 · P/N MS51967-3 NUT,PLAIN,HEXAGON 1/4-20,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	We can source it
6	Lock Washer NSN 5310-00-543-2705 · P/N MS35338-27 WASHER,LOCK 1/4,PART OF KIT P/N 57K3217,PART OF KIT 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	We can source it
7	Angle Bracket NSN 5340-01-192-2256 · P/N 12338663 BRACKET,ANGLE PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
8	Loop Clamp NSN 5340-00-738-5182 · P/N 7385182 CLAMP,LOOP PART OF KIT P/N 57K3217, PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	4	1 in stock
9	Tapping Screw NSN 5305-00-191-3640 · P/N MS51851-85 SCREW,TAPPING 1/4-20 X 5/8,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
10	Lock Washer NSN 5310-01-218-7137 · P/N MS51415-7 WASHER,LOCK 3/8,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	64 in stock
11	Lock Washer NSN 5310-01-216-7390 · P/N MS51415-9 WASHER,LOCK 1/2,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
12	Manual Handle NSN 2590-01-448-1105 · P/N 12447171 HANDLE ASSEMBLY,CON PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	161 in stock $120.00our price Buy online ↗
13	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	570 in stock
14	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4, PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	248 in stock
15	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	4	269 in stock
16	Machine Screw NSN 5305-00-489-0743 · P/N 9415477 SCREW,CAP,HEXAGON H 1/4-20 X 3/4, PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
17	Drum Vehicle Mounting Winch NSN 2590-01-432-2691 · P/N 27855 WINCH,DRUM,VEHICLE 9000 LB,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $6,722.28 per kitgov't list price
18	Cap Hexagon Head Screw NSN 5305-00-724-7248 · P/N B1821BH063C375N SCREW,CAP,HEXAGON H 5/8-11 X 3.75, PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	6	We can source it
19	Flat Washer NSN 5310-01-151-7347 · P/N 2436167 WASHER,FLAT 5/8,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	12	We can source it
20	Self-Locking Hexagon Nut NSN 5310-00-061-4651 · P/N MS51943-43 NUT,SELF-LOCKING,HE 5/8-11,PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	6	256 in stock
21	Double Angle Bracket NSN 5340-01-266-9173 · P/N 12338481 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K3217,PART OF KIT P/N 57K0285 BRACKET ( 1) 457-7 BRACKET,DOUBLE ANGL( 1) 457-21 BRACKET,WIRE ROPE G( 1) 456-7 CLAMP,LOOP ( 4) 457-8 DECAL,WARNING ( 1) 456-2 FRAME SECTION,STRUC( 1) 456-1 FRAME SECTION,STRUC( 1) 456-1 FRAME SECTION,STRUC( 1) 456-21 FRAME SECTION,STRUC( 1) 45 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
