HMMWV 9,000 Lb Winch Assembly TM 9-2320-280-24P · Fig. 458

Every part in figure 458 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 48 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

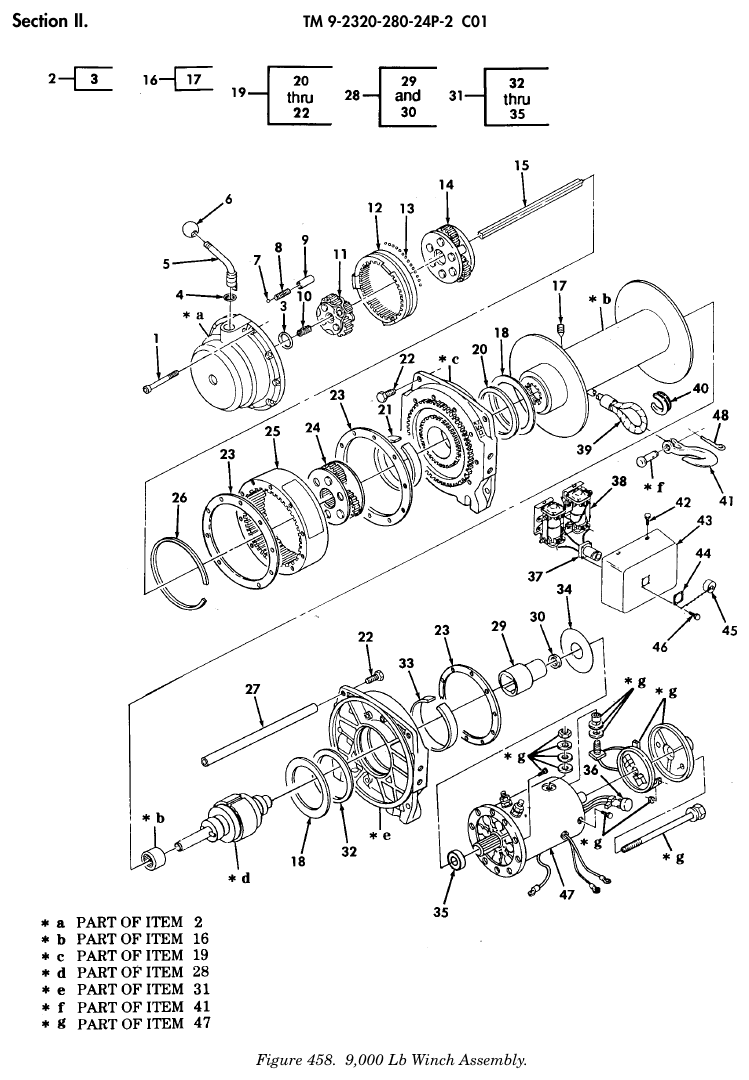

TM 9-2320-280-24P figure 458, 9,000 Lb Winch Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Socket Head Screw NSN 5305-01-309-1521 · P/N 15603 SCREW,CAP,SOCKET HE 1/4-20 X 3.00 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	10	We can source it
2	Mechanical Drive Housing NSN 3040-01-444-1756 · P/N 34384 HOUSING,MECHANICAL Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $283.64 per eachgov't list price
3	Clutch Thrust Plate NSN 3040-01-307-6157 · P/N 21009 THRUST PLATE,CLUTCH Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
4	O-Ring NSN 5331-01-445-5285 · P/N 15605 O-RING Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $35–$75 eachtypical
5	Manual Control Lever NSN 3040-01-446-3689 · P/N 31262 LEVER,MANUAL CONTRO Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $148.76 per eachgov't list price
6	Knob NSN 5355-01-211-6991 · P/N 15604 KNOB Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	9 in stock
7	Bearing Ball NSN 3110-01-444-4020 · P/N 1834 BALL,BEARING 1/4 DIA Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it quote only
8	Helical Compression Spring NSN 5360-01-420-0480 · P/N 1833 SPRING,HELICAL,COMP Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
9	Sleeve Spacer NSN 5365-01-306-9955 · P/N 15686 SPACER,SLEEVE Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $50–$100 eachtypical
10	Spur Gear NSN 3020-01-444-1359 · P/N 24832 GEAR,SPUR Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $80–$140 eachtypical
11	Gear Assembly Carrier NSN 3010-01-444-4018 · P/N 15643 CARRIER,GEAR ASSEMB Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $207.42 per eachgov't list price
12	Internal Gear NSN 3020-01-446-4387 · P/N 14916 GEAR,INTERNAL Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
13	Bearing Ball NSN 3110-01-444-4100 · P/N 22350 BALL,BEARING 3/16 DIA (85 BALLS) Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
14	Gear Assembly Carrier NSN 3010-01-444-4019 · P/N 24563 CARRIER,GEAR ASSEMB Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $180.64 per eachgov't list price
15	Straight Shaft NSN 3040-01-446-3684 · P/N 32209 SHAFT,STRAIGHT OUTPUT Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $30–$70 eachtypical
16	Cable Reel NSN 2590-01-446-5962 · P/N 32231 REEL,CABLE Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $649.32 per eachgov't list price
17	Setscrew NSN 5305-01-448-5074 · P/N 36974 SETSCREW M10 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
18	Washer Thrust Bearing NSN 3120-01-447-8663 · P/N 30277 BEARING,WASHER,THRU Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	2 in stock $25–$40 eachtypical
19	Cable Reel Holder NSN 2590-01-446-5957 · P/N 32237 HOLDER,CABLE REEL Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $268.79 per eachgov't list price
20	Packing Assembly NSN 5330-01-446-4696 · P/N 30275 PACKING ASSEMBLY Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	We can source it $25–$50 eachtypical
21	Sleeve Bushing NSN 3120-01-447-8658 · P/N 30274 BUSHING,SLEEVE Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	2 in stock $25–$40 eachtypical
22	Machine Screw NSN 5305-01-448-5080 · P/N 30328 SCREW,MACHINE 3/8-16 X .75 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	6	We can source it
23	Gasket NSN 5330-01-306-7887 · P/N 14964 GASKET Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	3	We can source it
24	Speed Decreaser Gear Assembly NSN 3010-01-306-4113 · P/N 15647 GEAR ASSEMBLY,SPEED Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $228.42 per eachgov't list price
25	Internal Gear NSN 3020-01-446-3695 · P/N 32239 GEAR,INTERNAL Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $267.31 per eachgov't list price
26	Ring Spacer NSN 5365-01-426-6643 · P/N 30326 SPACER,RING Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $30–$70 eachtypical
27	Sleeve Spacer NSN 5365-01-434-0186 · P/N 32208 SPACER,SLEEVE Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	3	We can source it $50–$85 eachtypical
28	Winch Brake and Clutch Assembly NSN 3950-01-435-1632 · P/N 5714499 BRAKE AND CLUTCH AS ELECTRIC Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $353.74 per eachgov't list price
29	Shaft Rigid Coupling NSN 3010-01-429-5333 · P/N 30260 COUPLING,SHAFT,RIGI Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $100–$165 eachtypical
30	Washer Thrust Bearing NSN 3120-01-435-2560 · P/N 15271 BEARING,WASHER,THRU Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
31	Mechanical Drive Housing Part NSN 3950-01-435-1014 · P/N 32236 HOUSING PART,MECHAN Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
32	Packing Assembly NSN 5330-01-446-4696 · P/N 30275 PACKING ASSEMBLY Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	We can source it $25–$50 eachtypical
33	Sleeve Bushing NSN 3120-01-447-8658 · P/N 30274 BUSHING,SLEEVE Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	2	2 in stock $25–$40 eachtypical
34	Washer Thrust Bearing NSN 3120-01-435-2495 · P/N 32062 BEARING,WASHER,THRU Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
35	Ball Annular Bearing NSN 3110-00-108-9247 · P/N 900529 BEARING,BALL,ANNULA Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	23 in stock $32.33our price Buy online ↗
36	Thermal-Overload Elect Protector NSN 6110-01-434-5562 · P/N 24800 PROTECTOR,THERMAL-O Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $75–$130 eachtypical
37	Receptacle Electrical Connector NSN 5935-01-431-5656 · P/N 31597 CONNECTOR,RECEPTACL Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	1 in stock $318.50our price Buy online ↗
38	Solenoid Assembly NSN 5945-01-431-5195 · P/N 31604 SOLENOID ASSEMBLY 24 VDC Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	20 in stock
39	Single Leg Wire Rope Assembly NSN 4010-01-426-4536 · P/N 27569 WIRE ROPE ASSEMBLY, 3/8" EIPS X Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $250.70 per eachgov't list price
40	Rope Thimble NSN 4030-01-256-0471 · P/N G-408-3/8 THIMBLE,ROPE Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
41	Hoist Hook NSN 4030-01-426-4537 · P/N 29519 HOOK,HOIST W/CLEVIS AND COTTER PINS Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	81 in stock $136.35 per eachgov't list price
42	Tapping Screw NSN 5305-01-210-2309 · P/N 8548 SCREW,TAPPING 10-24 X 3/8 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	3	We can source it
43	Protective Dust and Moistu Cover NSN 5340-01-430-0037 · P/N 31585 COVER,PROTECTIVE,DU Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	7 in stock
44	Retaining Clip NSN 5340-01-486-1005 · P/N 31293 CLIP,RETAINING Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it $25–$50 eachtypical
45	Electrical Connector Cover NSN 5935-01-460-5508 · P/N CA121003-3 COVER,ELECTRICAL CO Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	7 in stock $25–$50 eachtypical
46	Machine Screw NSN 5305-01-428-6635 · P/N 31625 SCREW,MACHINE M4 X 10 Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	4	We can source it
47	Direct Current Motor NSN 6105-01-434-1729 · P/N 32235 MOTOR,DIRECT CURREN 24 VDC Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1121, M1123	1	We can source it
48	Cotter Pin NSN 5315-00-187-9384 · P/N PDG6120-1/8-1-1/ PIN,COTTER 4 UOC:AVY,A11,A13,A14,A24,A25,A26,A27, BVY,B17,B18,B24,B25,C17,HVY,H11,H13, H14,H17,H18,H21,H24,H25,H26,H27,H28, MMM,NNN Fits: All models	1	400 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
