HMMWV Modification Kit, Sun Visor TM 9-2320-280-24P · Fig. 459

Every part in figure 459 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 4 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

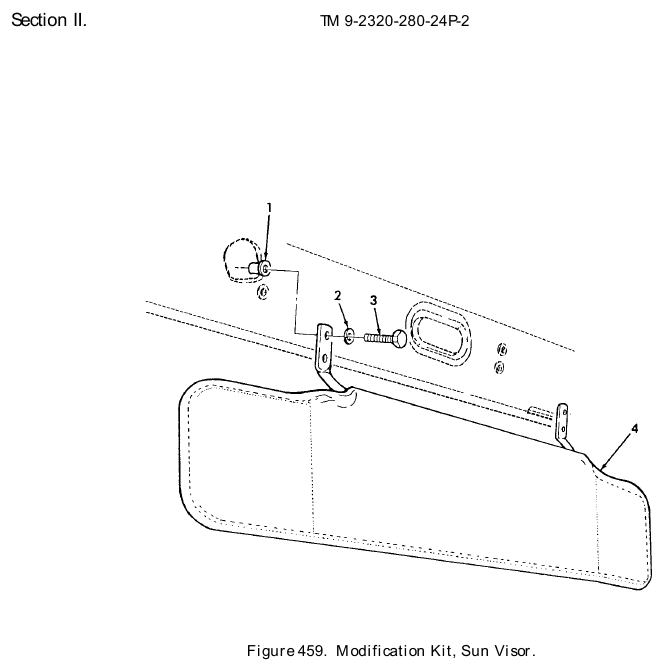

TM 9-2320-280-24P figure 459, Modification Kit, Sun Visor: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Screw Thread Insert NSN 5325-01-411-3422 · P/N ALS4-420-165 NUT,PLAIN,BLIND RIV 1/4-20 PART OF KIT P/N 57K3209 Fits: All A1 models; all A0 models except M966	8	25 in stock
2	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 1/4 PART OF KIT P/N 57K3209 Fits: All A1 models; all A0 models except M966	8	1,162 in stock
3	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 PART OF KIT P/N 57K3209 Fits: All A1 models; all A0 models except M966	8	559 in stock
4	Sun Vehicle Visor NSN 2540-01-410-8793 · P/N 12446819 VISOR,SUN,VEHICLE PART OF KIT P/N 57K3209 NUT,PLAIN,BLIND RIV( 8) 459-1 SCREW,CAP,HEXAGON H( 8) 459-3 VISOR,SUN,VEHICLE ( 2) 459-4 WASHER,LOCK ( 8) 459-2 Fits: All A1 models; all A0 models except M966	2	2 in stock $90–$155 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
