HMMWV Modification Kit, Windshield Retainer TM 9-2320-280-24P · Fig. 460

Every part in figure 460 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 4 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

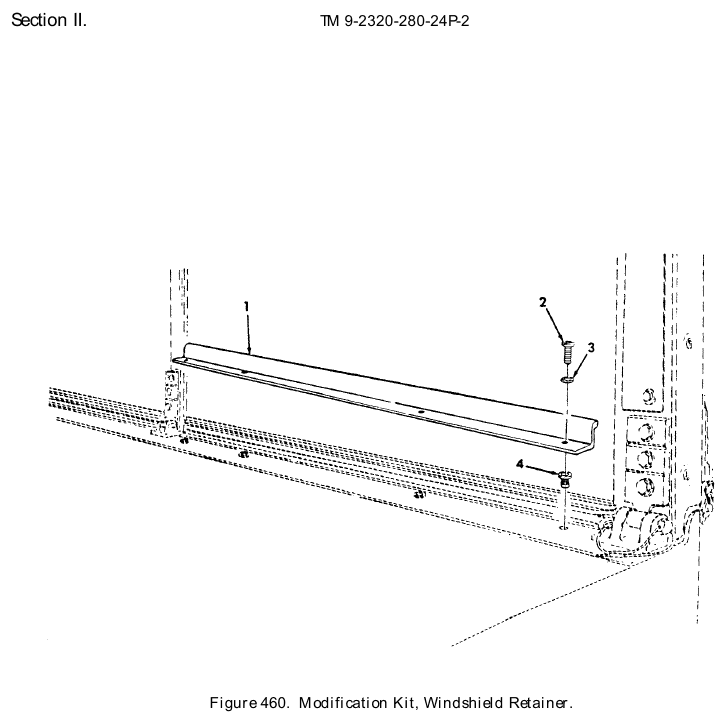

TM 9-2320-280-24P figure 460, Modification Kit, Windshield Retainer: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Window Vehicular Frame NSN 2510-01-411-0652 · P/N 12447029 FRAME,WINDOW,VEHICU PART OF KIT P/N 57K3206 Fits: All A0 and A1 models, plus M1121	2	We can source it
2	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4 PART OF KIT P/N 57K3206 Fits: All A0 and A1 models, plus M1121	8	287 in stock
3	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK PART OF KIT P/N 57K3206 Fits: All A0 and A1 models, plus M1121	8	709 in stock
4	Screw Thread Insert NSN 5325-01-411-0066 · P/N ALS4-1024-130 INSERT,SCREW THREAD PART OF KIT P/N 57K3206 FRAME,WINDOW,VEHICU( 2) 460-1 INSERT,SCREW THREAD( 8) 460-4 SCREW,MACHINE ( 8) 460-2 WASHER,LOCK ( 8) 460-3 Fits: All A0 and A1 models, plus M1121	8	1,125 in stock
