HMMWV Instrument Cluster Assembly TM 9-2320-280-24P · Fig. 47

Every part in figure 47 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0607 Instrument or Engine Control Panel: 16 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

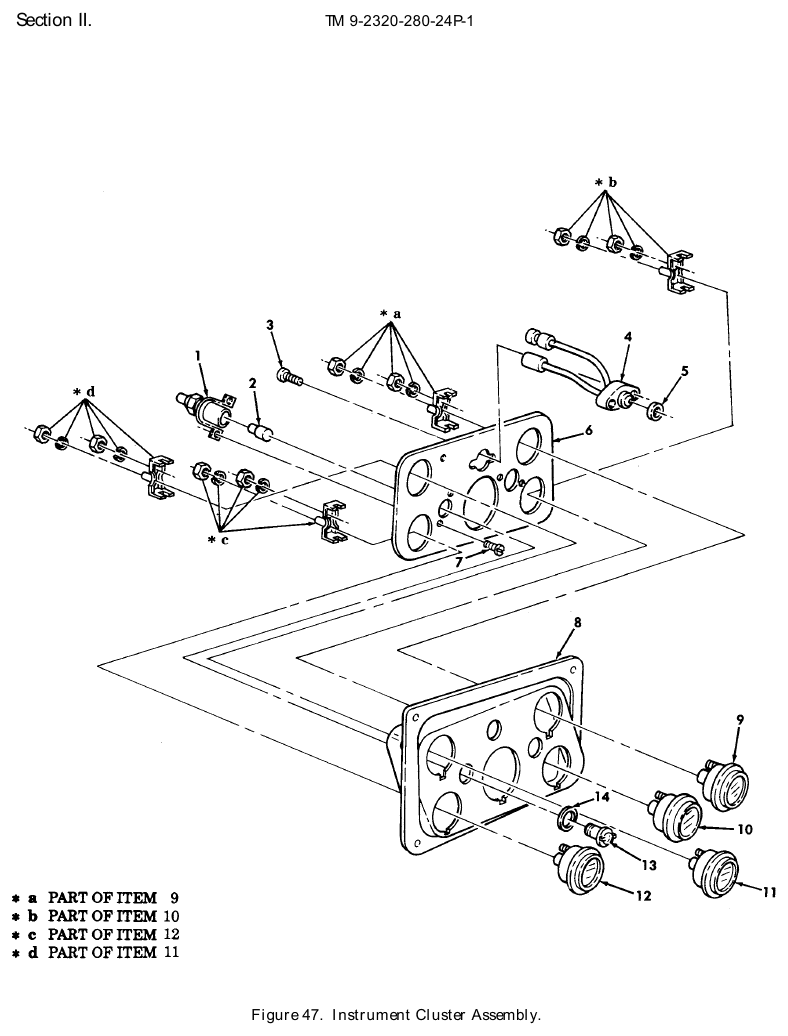

TM 9-2320-280-24P figure 47, Instrument Cluster Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Indicator Light NSN 6210-01-208-4790 · P/N 12338465 LIGHT,INDICATOR Fits: All models	2	5 in stock $35–$65 eachtypical
2	Incandescent Lamp NSN 6240-00-765-8443 · P/N 1864 LAMP,INCANDESCENT CLEAR Fits: All A0 and A1 models, plus M1121	2	10 in stock
2	Semiconductor Device Assembly NSN 5980-01-438-7452 · P/N 12460228 SEMICONDUCTOR DEVIC PART OF KIT P/N 57K3238 Fits: All A2 models, plus M1123	2	179 in stock $30–$65 eachtypical
3	Tapping Screw NSN 5305-01-211-1439 · P/N 9414224 SCREW,TAPPING Fits: All models	2	10 in stock
4	Indicator Light NSN 6220-01-273-0500 · P/N 12356703-3 LIGHT,INDICATOR Fits: All models	1	3 in stock $45.07our price Buy online ↗
5	Gasket NSN 5330-01-211-5856 · P/N 12338462 GASKET Fits: All models	1	We can source it
6	Vehicular Operation Panel NSN 2510-01-248-8875 · P/N 12338467 PANEL,VEHICULAR OPE Fits: All models	1	We can source it $25–$40 eachtypical
7	Machine Screw NSN 5305-00-984-6191 · P/N MS35206-243 SCREW,MACHINE #8-32 X 3/8 Fits: All models	4	180 in stock
8	Vehicular Operation Panel NSN 2510-01-303-5769 · P/N 5585111 PANEL,VEHICULAR OPE Fits: All models	1	7 in stock $35–$75 per assemblytypical
9	Temperature Electrical Indicator NSN 6685-01-180-9037 · P/N GG0490 INDICATOR,TEMPERATU Fits: All models	1	We can source it $70–$115 eachtypical
10	Arbitrary Scale Meter NSN 6625-01-180-6542 · P/N 5568666 METER,ARBITRARY SCA Fits: All models	1	1 in stock $35–$70 eachtypical
11	Pressure Dial Indicating Gage NSN 6620-01-181-1757 · P/N GG0552 GAGE,PRESSURE,DIAL Fits: All models	1	24 in stock $83.29our price Buy online ↗
12	Liquid Quantity Indicator NSN 6680-01-298-0498 · P/N 5568667 INDICATOR,LIQUID QU Fits: All models	1	330 in stock $87.87our price Buy online ↗
13	Light Lens NSN 6210-01-211-7024 · P/N 12339203 LENS,LIGHT Fits: All A0 and A1 models, plus M1121	2	74 in stock
13	Light Lens NSN 6220-01-429-4596 · P/N 12339203-1 LENS,LIGHT INSTRUMENT CLUSTER,CLEAR PART OF KIT P/N 57K3238 Fits: All A2 models, plus M1123	2	90 in stock
14	Preformed Packing NSN 5330-00-297-6329 · P/N 7358626 PACKING,PREFORMED Fits: All models	2	72 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
