HMMWV Circuit Breakers TM 9-2320-280-24P · Fig. 48

Every part in figure 48 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0607 Instrument or Engine Control Panel: 4 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

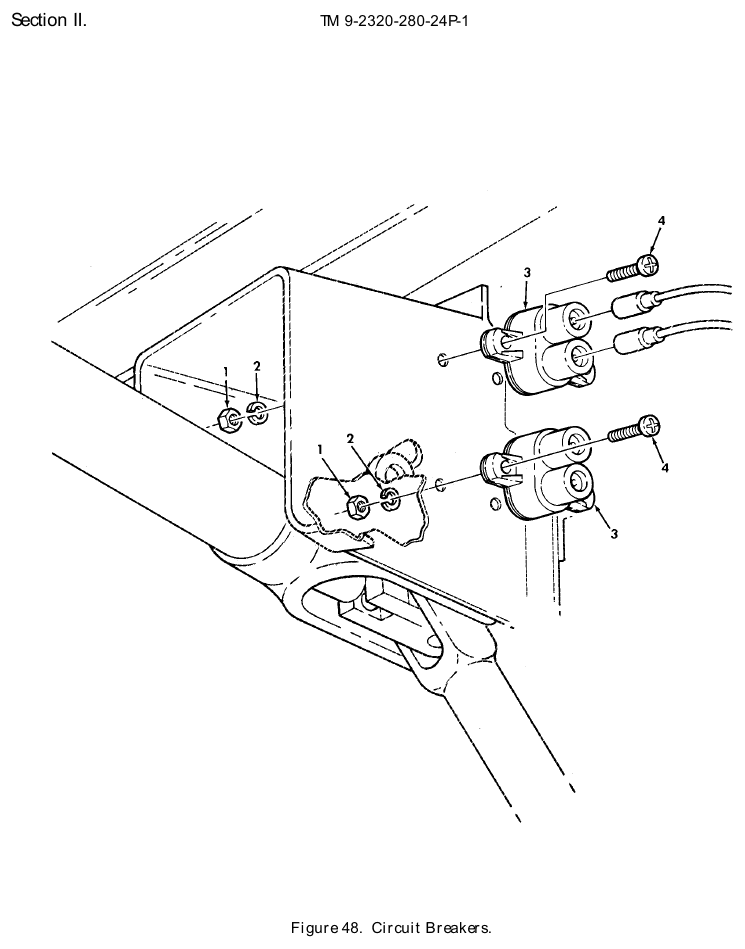

TM 9-2320-280-24P figure 48, Circuit Breakers: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Hexagon Nut NSN 5310-00-934-9757 · P/N MS35649-282 NUT,PLAIN,HEXAGON #8-32 Fits: All models	4	We can source it
2	Lock Washer NSN 5310-00-045-3299 · P/N MS35338-42 WASHER,LOCK #8 Fits: All models	4	84 in stock
3	Circuit Breaker NSN 5925-01-430-2318 · P/N AA55571/01-001 CIRCUIT BREAKER Fits: All models	2	117 in stock $131.43 per eachgov't list price
4	Machine Screw NSN 5305-00-984-6195 · P/N MS35206-247 SCREW,MACHINE #8-32 X 3/4 Fits: All models	4	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
