HMMWV 100/200 AMP Dual Voltage Alternator Wiring Harness TM 9-2320-280-24P · Fig. 474

Every part in figure 474 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 21 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

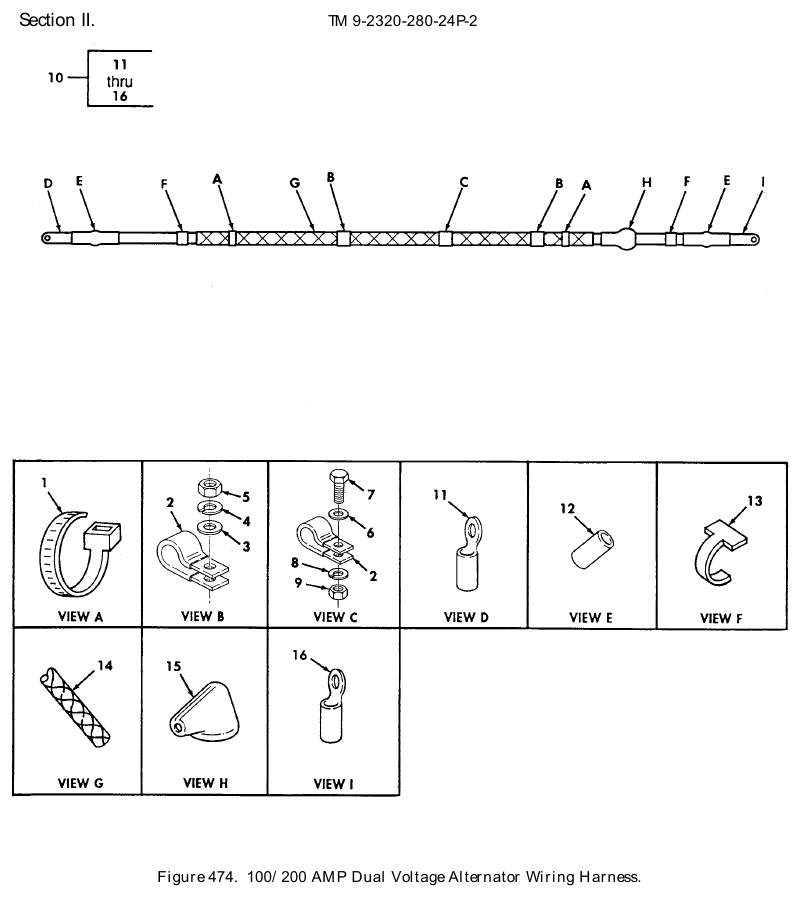

TM 9-2320-280-24P figure 474, 100/200 AMP Dual Voltage Alternator Wiring Harness: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3519,PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	4	198 in stock
2	Loop Clamp NSN 5340-00-053-8994 · P/N MS21333-126 CLAMP,LOOP 100AMP PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	3	23 in stock
2	Loop Clamp NSN 5340-00-702-2848 · P/N MS21333-128 CLAMP,LOOP 200AMP PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	3	178 in stock
3	Flat Washer NSN 5310-01-210-1587 · P/N 11500256 WASHER,FLAT PART OF KIT P/N 57K3519, PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	We can source it
4	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK PART OF KIT P/N 57K3519, PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	1 in stock
5	Plain Hexagon Nut NSN 5310-01-395-8747 · P/N B18241B100F NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3519,PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	98 in stock
6	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT PART OF KIT P/N 57K3519, PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1,368 in stock
7	Machine Bolt NSN 5306-00-226-4827 · P/N B1821BH031C100N BOLT,MACHINE PART OF KIT P/N 57K3519 ,PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	292 in stock
8	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK PART OF KIT P/N 57K3519, PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	2,036 in stock
9	Plain Hexagon Nut NSN 5310-00-931-8167 · P/N MS51967-6 NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3519,PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
10	Electrical Lead NSN 6150-01-417-3411 · P/N 12446821-2 CABLE ASSEMBLY,SPEC 100 AMP PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $55–$100 eachtypical
10	Electrical Lead NSN 6150-01-416-7899 · P/N 12446825 LEAD,ELECTRICAL 200AMP PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $161.82 per eachgov't list price
11	Lug Terminal NSN 5940-01-170-4956 · P/N 8689221 TERMINAL LUG 100AMP PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
11	Lug Terminal NSN 5940-00-735-5520 · P/N TG33 TERMINAL,LUG 200AMP PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
12	Insulation Sleeving Make From P/N M23053/4-304-2-2 INSULATION SLEEVING MAKE FROM INSULATION,P/N M23053/4-304-2,2 INCHES LONG,PART OF KIT P/N 57K3519, PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	Ask us
13	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER PART OF KIT P/N 57K3519,PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	1 in stock $20.58our price Buy online ↗
14	Loom Nonmetallic Make From Tubing P/N SAEJ562 LOOM NONMETALLIC MAKE FROM TUBING, P/N AE208-10,LENGTH TO SUIT,PART OF KIT P/N 57K3519,PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
15	Dust and Moisture Seal Boot NSN 5340-01-449-6854 · P/N 9609A383-002 BOOT,DUST AND MOIST 100 AMP PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
15	Electrical Cable Nipple NSN 5975-01-208-9618 · P/N 12339710 CABLE NIPPLE,ELECTR 200AMP PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	32 in stock
16	Lug Terminal NSN 5940-00-115-2678 · P/N MS20659-111 TERMINAL,LUG 100AMP PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
16	Lug Terminal NSN 5940-00-115-5006 · P/N MS25036-133 TERMINAL,LUG 200AMP PART OF KIT P/N 57K3520 BAND,MARKER ( 2) 474-13 BELTS,V,MATCHED SET( 1) 472-19 BEZEL,AUTOMOTIVE TR( 1) 473-3 BOLT,MACHINE ( 1) 472-14 BOLT,MACHINE ( 1) 472-16 BOLT,MACHINE ( 1) 473-1 BOLT,MACHINE ( 1) 474-7 BOOT,DUST AND MOIST( 1) 474-15 BRACKET,MOUNTING ( 1) 472-13 CABLE ASSEMBLY,S Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	30 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
