HMMWV Directional Control Unit, Protective Control Box, and Directional Flasher TM 9-2320-280-24P · Fig. 49

Every part in figure 49 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 11 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

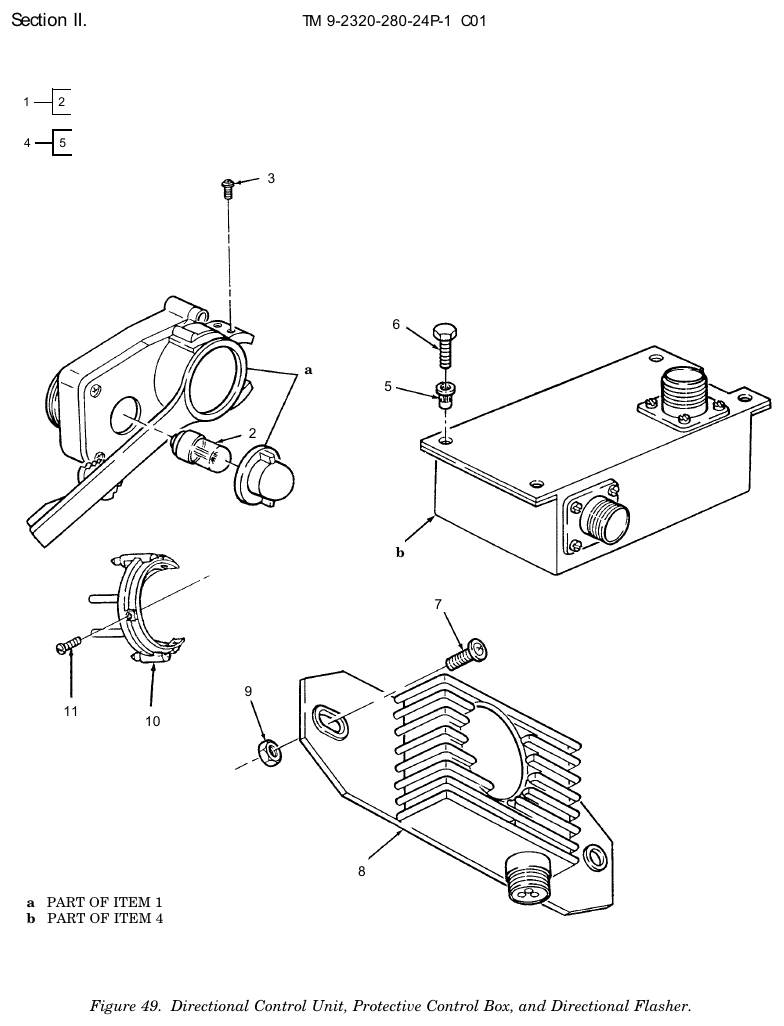

TM 9-2320-280-24P figure 49, Directional Control Unit, Protective Control Box, and Directional Flasher: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Directional Signal Light Control NSN 6220-01-408-7785 · P/N 12447083 CONTROL,DIRECTIONAL PART OF KIT P/N 57K3222 Fits: All models	1	15 in stock $235.00our price Buy online ↗
2	Incandescent Lamp NSN 6210-00-419-3185 · P/N MS25231-1873 LAMP,INCANDESCENT Fits: All models	1	142 in stock
3	Tapping Screw NSN 5305-01-211-6049 · P/N 274233 SCREW,TAPPING #6-32 X 3/8 PART OF KIT P/N 57K3222 Fits: All models	4	We can source it
4	Remote Switching Control NSN 6110-01-491-2158 · P/N 12479192 CONTROL,REMOTE SWIT NSN 6110-01-463-9260 COMES WITH ITEM 2 0N FIGURE 66 Fits: All models	1	We can source it quote only
5	Screw Thread Insert NSN 5325-01-411-3422 · P/N ALS4-420-165 NUT,PLAIN,BLIND RIV Fits: All models	4	25 in stock
6	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: All models	4	559 in stock
7	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: All models	2	We can source it
8	Thermal Flasher NSN 5945-00-789-3706 · P/N 11613631 FLASHER,THERMAL Fits: All models	1	161 in stock $80–$135 eachtypical
9	Plain Hexagon Nut NSN 5310-01-251-0711 · P/N 5593038 NUT,PLAIN,HEXAGON 1/4-20 Fits: All models	2	We can source it
10	Directional Signal Light Control NSN 6220-01-445-5058 · P/N 12447084 CONTROL,DIRECTIONAL PART OF KIT P/N 57K3222 Fits: All models	1	We can source it $113.84 per eachgov't list price
11	Tapping Screw NSN 5305-00-432-4165 · P/N MS51861-26 SCREW,TAPPING #6-20 X 5/8 PART OF KIT P/N 57K3222 Fits: All models	3	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
