HMMWV Buss Assembly-400 AMP Alternator Kit TM 9-2320-280-24P · Fig. 481

Every part in figure 481 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 10 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

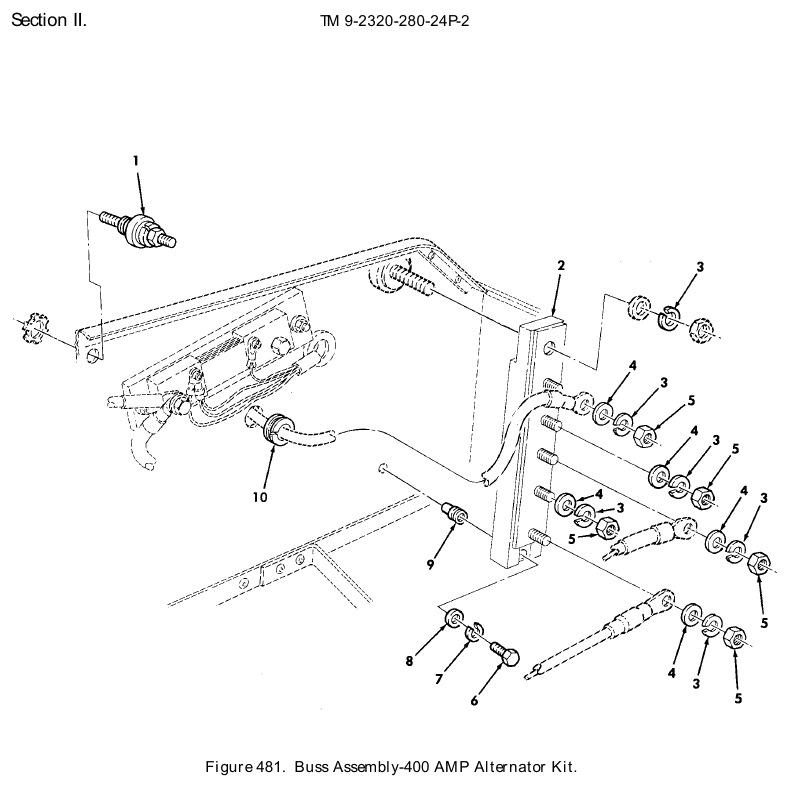

TM 9-2320-280-24P figure 481, Buss Assembly-400 AMP Alternator Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Feedthru Terminal NSN 5940-01-180-3655 · P/N 12340594 TERMINAL ASSEMBLY PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it $30–$65 eachtypical
2	Conductor Bus NSN 6150-01-413-7946 · P/N 12460070 BUSS,CONDUCTOR PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	1 in stock $50–$90 eachtypical
3	Lock Washer NSN 5310-00-011-6121 · P/N 120384 WASHER,LOCK PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	6	337 in stock
4	Flat Washer NSN 5310-00-045-5218 · P/N MS15795-918 WASHER,FLAT PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	5	We can source it
5	Plain Hexagon Nut NSN 5310-00-011-5774 · P/N 115774 NUT,PLAIN,HEXAGON PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	5	We can source it
6	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	248 in stock
7	Lock Washer NSN 5310-00-209-2946 · P/N 120380 WASHER,LOCK 1/4 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
8	Flat Washer NSN 5310-00-187-0146 · P/N 120392 WASHER,FLAT PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	195 in stock
9	Screw Thread Insert NSN 5325-01-411-3422 · P/N 12446871-2 NUT,PLAIN,BLIND RIV PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	25 in stock
10	Nonmetallic Grommet NSN 5325-00-276-6343 · P/N MS35489-23 GROMMET,NONMETALLIC PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	232 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
