HMMWV Tachometer Parts Kit TM 9-2320-280-24P · Fig. 482

Every part in figure 482 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 22 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

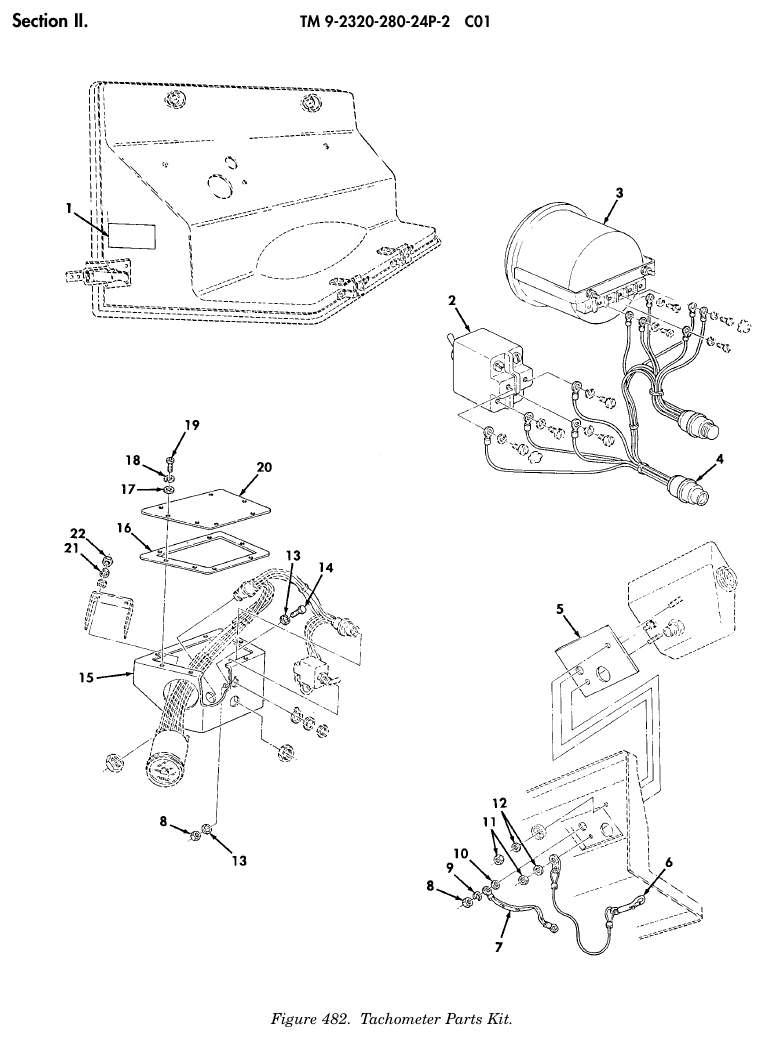

TM 9-2320-280-24P figure 482, Tachometer Parts Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Identification Marker NSN 7690-01-475-1197 · P/N 12469032 DECAL PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	We can source it
2	Toggle Switch NSN 5930-00-856-1654 · P/N MS24659-23G SWITCH,TOGGLE PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	2 in stock $106.52 per eachgov't list price
3	Electrical Tachometer Indicator NSN 6680-01-474-0384 · P/N 535K1-49383 TACHOMETER,ELECTRIC PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	56 in stock $250.00our price Buy online ↗
4	Special Purpose E Cable Assembly NSN 6150-01-474-9676 · P/N 12469043 CABLE,ASSEMBLY,SPEC PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	20 in stock quote only $479.39 per eachgov't list price
5	Gasket NSN 5330-01-475-1671 · P/N 12469035 GASKET PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	We can source it
6	Single Leg Wire Rope Assembly NSN 4010-01-308-9168 · P/N C5136341 WIRE ROPE ASSEMBLY, PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	1 in stock $100–$165 eachtypical
7	Electrical Grounding Strip NSN 5999-01-471-0710 · P/N 12469047 STRIP,ELECTRICAL GR PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	We can source it $85–$145 eachtypical
8	Plain Hexagon Nut NSN 5310-00-477-6768 · P/N MS35649-2384 NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	2	97 in stock
9	Lock Washer NSN 5310-00-984-7042 · P/N MS35338-141 WASHER,LOCK PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	4 in stock
10	Flat Washer NSN 5310-00-802-4701 · P/N MS15795-813 WASHER,FLAT PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	5,108 in stock
11	Self-Locking Hexagon Nut NSN 5310-00-208-9255 · P/N MS21044-C3 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	2	We can source it
12	Flat Washer NSN 5310-00-619-1148 · P/N MS15795-808 WASHER,FLAT PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	2	198 in stock
13	Lock Washer NSN 5310-00-595-7237 · P/N M2046S WASHER,LOCK PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	2	2,466 in stock
14	Cap Hexagon Head Screw NSN 5305-00-721-5665 · P/N MS35307-361 SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	We can source it
15	Tachometer Housing NSN 2540-01-475-3129 · P/N 12469034 HOUSING,TACHOMETER PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	443 in stock $50.00our price Buy online ↗
16	Gasket NSN 5330-01-309-4340 · P/N C5136338 GASKET PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	We can source it $25–$40 eachtypical
17	Flat Washer NSN 5310-00-225-5328 · P/N MS15795-841 WASHER,FLAT PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	7	We can source it
18	Lock Washer NSN 5310-00-933-8119 · P/N 110401-8SS WASHER,LOCK PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	7	We can source it
19	Machine Screw NSN 5305-00-054-6670 · P/N MS51957-45 SCREW,MACHINE PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	7	474 in stock
20	Access Cover NSN 5340-01-308-2168 · P/N C5136336 COVER,ACCESS PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	We can source it $40–$80 eachtypical
21	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	709 in stock
22	Plain Hexagon Nut NSN 5310-00-934-9751 · P/N MS35650-302 NUT,PLAIN,HEXAGON Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	700 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
