HMMWV Tachometer Parts Kit TM 9-2320-280-24P · Fig. 483

Every part in figure 483 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 8 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

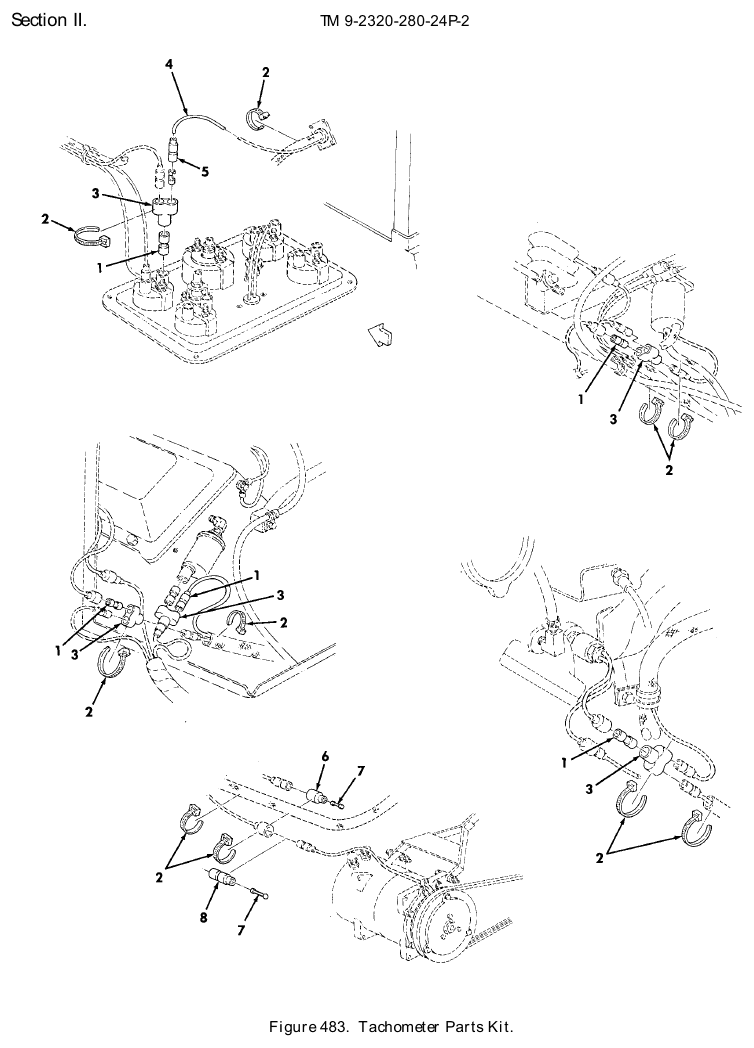

TM 9-2320-280-24P figure 483, Tachometer Parts Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Connector Adapter NSN 5935-00-807-4109 · P/N 8741492 ADAPTER,CONNECTOR PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	5	20 in stock
2	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	12	269 in stock
3	Connector Adapter NSN 5935-00-900-6281 · P/N MS27147-1 ADAPTER,CONNECTOR PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	5	65 in stock
4	Branched Wiring Harness NSN 6150-01-473-8663 · P/N 12469029 WIRING HARNESS,BRAN PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	We can source it $1,244.97 per eachgov't list price
5	Plug Electrical Connector NSN 5935-00-115-2307 · P/N MS27144-2 CONNECTOR,PLUG,ELEC PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	55 in stock
6	Electrical Connector Shell NSN 5935-00-572-9180 · P/N 8338566 SHELL,ELECTRICAL CO PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	649 in stock
7	Plug Dummy Connector NSN 5935-00-214-0904 · P/N 7982907 DUMMY CONNECTOR,PLU PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	2	123 in stock
8	Electrical Connector Shell NSN 5935-00-833-8561 · P/N 8338561 SHELL,ELECTRICAL CO PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	218 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
