HMMWV Tachometer Parts Kit TM 9-2320-280-24P · Fig. 484

Every part in figure 484 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 17 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

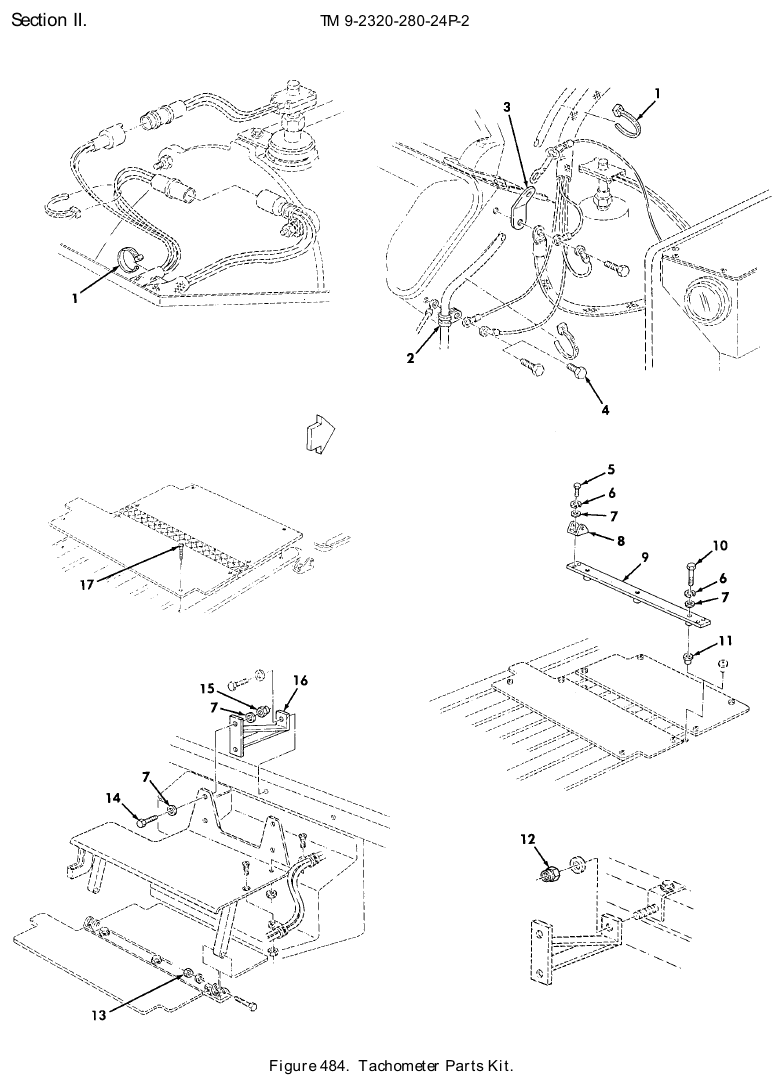

TM 9-2320-280-24P figure 484, Tachometer Parts Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	4	269 in stock
2	Loop Clamp NSN 2520-00-989-1771 · P/N MS21333-123 CLAMP,LOOP PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	1 in stock
3	Angle Bracket NSN 5340-01-308-3851 · P/N C5136342 BRACKET,ANGLE PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	We can source it $152.56 per eachgov't list price
4	Cap Hexagon Head Screw NSN 5305-01-390-0547 · P/N B18231B10020NF SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	We can source it
5	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	4	471 in stock
6	Lock Washer NSN 5310-00-550-1130 · P/N MS35333-40 WASHER,LOCK PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	7	2,548 in stock $6.85our price Buy online ↗
7	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	15	351 in stock
8	Double Angle Bracket NSN 5340-01-474-3279 · P/N 12460543 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	2	We can source it
9	Mounting Plate NSN 5340-01-474-0954 · P/N 12460544 PLATE,MOUNTING PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	1	We can source it quote only $55–$90 eachtypical
10	Cap Hexagon Head Screw NSN 5305-00-071-2510 · P/N B1821BH025C175N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	3	We can source it
11	Screw Thread Insert NSN 5325-01-411-3422 · P/N ALS4-420-165 NUT,PLAIN,BLIND RIV PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	3	25 in stock
12	Self-Locking Hexagon Nut NSN 5310-00-935-9022 · P/N MS51943-32 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	2	We can source it
13	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	2	219 in stock
14	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	4	559 in stock
15	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	4	626 in stock
16	Mounting Bracket NSN 5340-01-433-0936 · P/N 12460542-2 BRACKET,MOUNTING PART OF KIT P/N 57K3532 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	2	265 in stock $17.63our price Buy online ↗
17	Tapping Screw NSN 5305-01-270-7225 · P/N 12341822 SCREW,TAPPING THREA PART OF KIT P/N 57K3532 ADAPTER,CONNECTOR ( 5) 483-1 ADAPTER,CONNECTOR ( 5) 483-3 BRACKET,MOUNTING ( 2) 484-16 BRACKET,DOUBLE ANGL( 2) 484-8 BRACKET,ANGLE ( 1) 484-3 CABLE,ASSEMBLY,SPEC( 1) 482-4 CLAMP,LOOP ( 1) 484-2 CONNECTOR,PLUG,ELEC( 1) 483-5 COVER,ACCESS ( 1) 482-20 DECAL ( 1 Fits: M998, M998A1, M1037, M1038, M1038A1, M1097 and 3 more	8	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
