HMMWV Precision Lightweight Global Positioning System Receiver (PLGR) TM 9-2320-280-24P · Fig. 485

Every part in figure 485 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 27 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

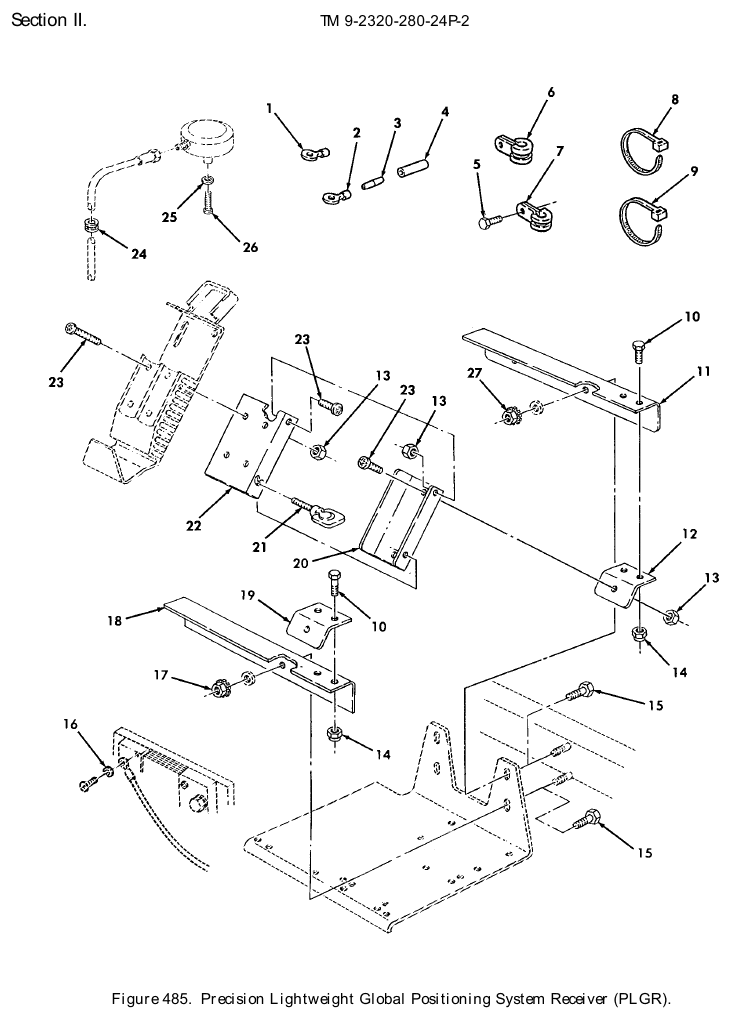

TM 9-2320-280-24P figure 485, Precision Lightweight Global Positioning System Receiver (PLGR): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Lug Terminal NSN 5940-00-983-4067 · P/N 7728777 TERMINAL,LUG PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it
2	Lug Terminal NSN 5940-01-035-4212 · P/N 7728780 TERMINAL,LUG PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it
3	Conductor Splice NSN 5940-00-113-9420 · P/N NAS1387-4 SPLICE,CONDUCTOR PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	2	We can source it
4	Electrical Insulation Sleeving NSN 5970-01-048-9378 · P/N M23053/4-103-0 INSULATION SLEEVING PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it
5	Tapping Screw NSN 5305-00-432-4201 · P/N MS51861-45 SCREW,TAPPING PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	38 in stock
6	Loop Clamp NSN 5340-00-905-0790 · P/N MS21333-65 CLAMP,LOOP PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it
7	Loop Clamp NSN 5340-00-088-1255 · P/N MS21333-96 CLAMP,LOOP PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	445 in stock
8	Tie Down Electrical Compon Strap NSN 5975-00-074-2072 · P/N MS3367-1-9 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	2	300 in stock
9	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	198 in stock
10	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	4	248 in stock
11	Angle Bracket NSN 5340-01-466-2451 · P/N 12460221 BRACKET,ANGLE PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it $40–$80 eachtypical
12	Angle Bracket NSN 5340-01-471-1040 · P/N 12460220-1 BRACKET,ANGLE PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it $236.38 per eachgov't list price
13	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	8	474 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	4	626 in stock
15	Cap Hexagon Head Screw NSN 5305-00-267-8953 · P/N B1821BH025F063N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	2	1,020 in stock
16	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	709 in stock
17	Self-Locking Hexagon Nut NSN 5310-00-935-9022 · P/N MS51943-32 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	2	We can source it
18	Angle Bracket NSN 5340-01-466-2438 · P/N 12460222 BRACKET,ANGLE PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it $511.98 per eachgov't list price
19	Angle Bracket NSN 5340-01-466-1985 · P/N 12460220-2 BRACKET,ANGLE PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it $103.78 per eachgov't list price
20	Double Angle Bracket NSN 5340-01-466-2606 · P/N 12460219 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it $25–$55 eachtypical
21	Thumbscrew NSN 5305-01-471-7623 · P/N 12460223 THUMBSCREW PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it $142.80 per eachgov't list price
22	Double Angle Bracket NSN 5340-01-466-2611 · P/N 12460218 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	502 in stock $55–$100 eachtypical
23	Machine Screw NSN 5305-01-407-7713 · P/N 160052 SCREW,MACHINE PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	8	4,349 in stock
24	Nonmetallic Grommet NSN 5325-01-292-7558 · P/N MS35489-143 GROMMET,NONMETALLIC PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it
25	Flat Washer NSN 5310-01-361-1163 · P/N 9417373 WASHER,FLAT PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	We can source it
26	Machine Screw NSN 5305-00-990-6444 · P/N MS35207-261 SCREW,MACHINE PART OF KIT P/N 57K3233 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	307 in stock
27	Self-Locking Hexagon Nut NSN 5310-01-333-5245 · P/N 271175 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3233 BRACKET,ANGLE ( 1) 485-11 BRACKET,ANGLE ( 1) 485-12 BRACKET,ANGLE ( 1) 485-18 BRACKET,ANGLE ( 1) 485-19 BRACKET,DOUBLE ANGL( 1) 485-20 BRACKET,DOUBLE ANGL( 1) 485-22 CLAMP,LOOP ( 1) 485-6 CLAMP,LOOP ( 1) 485-7 GROMMET,NONMETALLIC( 1) 485-24 INSULATION SLEE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	2	54,170 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
