HMMWV Kit, Intercom Bracket TM 9-2320-280-24P · Fig. 486

Every part in figure 486 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 12 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

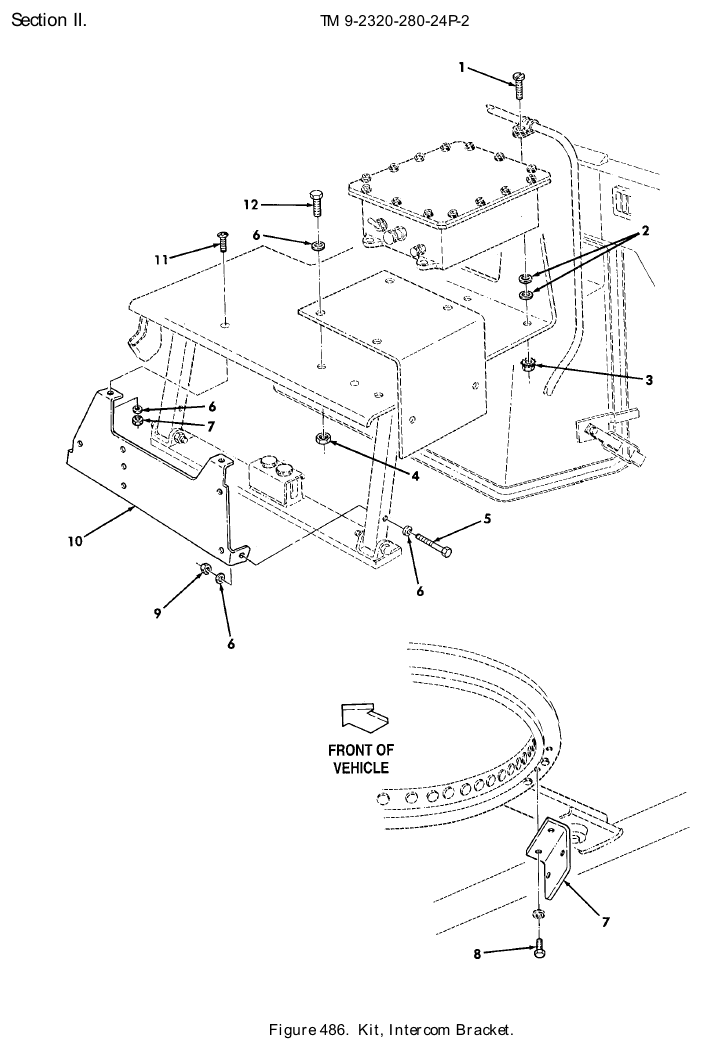

TM 9-2320-280-24P figure 486, Kit, Intercom Bracket: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-01-467-2711 · P/N 160069 SCREW,MACHINE #10-32X1 PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	4	We can source it
2	Flat Washer NSN 5310-01-217-5205 · P/N 9417714 WASHER,FLAT #10FLAT PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	8	494 in stock
3	Lock Nut NSN 5310-00-251-4503 · P/N 9411893 NUT,LOCK #10-32 PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	4	40 in stock
4	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	2	184 in stock
5	Cap Hexagon Head Screw NSN 5305-00-071-2237 · P/N MS90725-14 SCREW,CAP,HEXAGON H 1/4-20X2.00 PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	2	500 in stock
6	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	8	351 in stock
7	Angle Bracket NSN 5340-01-467-4153 · P/N A3157855 BRACKET,ANGLE #10-32X1 PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	1	We can source it $95–$160 eachtypical
8	Cap Hexagon Head Screw NSN 5306-00-821-3869 · P/N B1821BH038C175N SCREW,CAP,HEXAGON H 3/8-16 X 1.75 PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	2	201 in stock $14.70our price Buy online ↗
9	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	4	626 in stock
10	Mounting Bracket NSN 5340-01-270-8489 · P/N 12340879 BRACKET,MOUNTING PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	1	69 in stock $50.00our price Buy online ↗
11	Machine Screw NSN 5305-00-719-5021 · P/N MS51959-81 SCREW,MACHINE 1/4-20X.75 PART OF KIT P/N 57K3488 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	2	We can source it
12	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20X1.00 PART OF KIT P/N 57K3488 BRACKET,ANGLE ( 1) 486-7 BRACKET,MOUNTING ( 1) 486-10 NUT,LOCK ( 4) 486-3 NUT,SELF-LOCKING,HE( 2) 486-4 NUT,SELF-LOCKING,HE( 4) 486-9 SCREW,CAP,HEXAGON H( 2) 486-5 SCREW,CAP,HEXAGON H( 2) 486-8 SCREW,CAP,HEXAGON H( 2) 486-12 SCREW,MACHINE ( 4) 486-1 SCRE Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	2	559 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
