HMMWV Transmission Control Module, Circuit Breaker, and Relay TM 9-2320-280-24P · Fig. 50

Every part in figure 50 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0608 Miscellaneous Items: 20 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

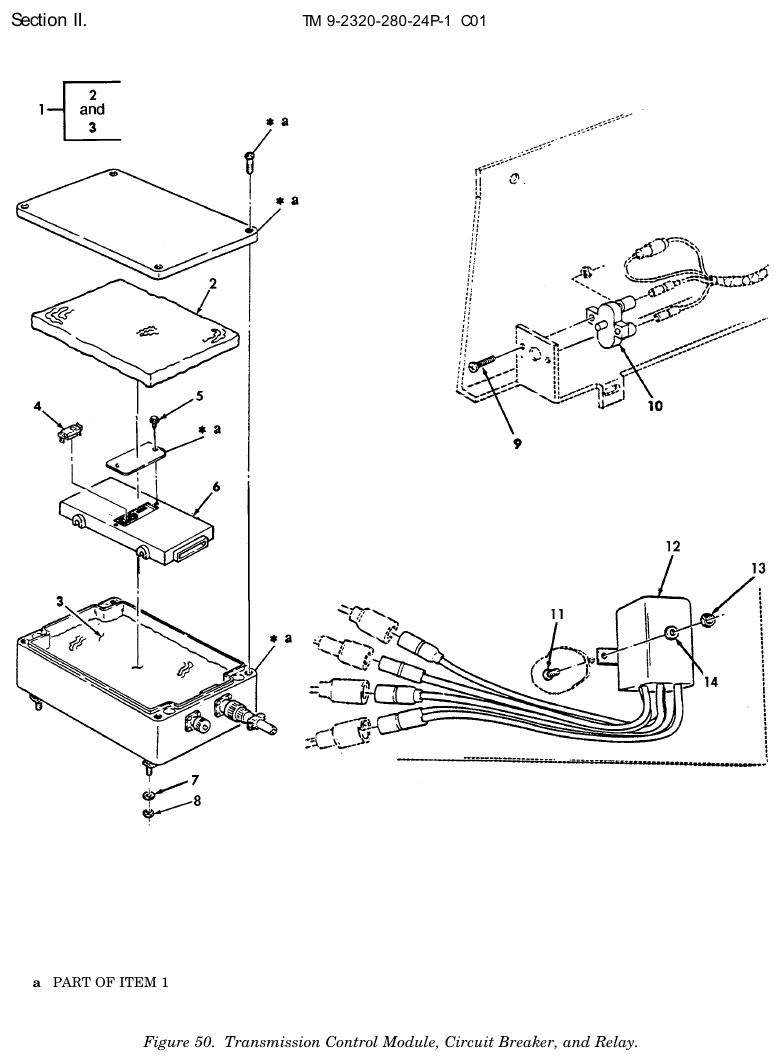

TM 9-2320-280-24P figure 50, Transmission Control Module, Circuit Breaker, and Relay: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Control Module Housing Assembly NSN 2520-01-481-6120 · P/N 12460399 CONTROL ASSEMBLY,TR Fits: All A2 models, plus M1123	1	1 in stock quote only $1,595.37 per eachgov't list price
2	Vehicular Insulation NSN 2540-01-481-9194 · P/N 12460407-2 INSULATION,THERMAL Fits: All A2 models, plus M1123	1	We can source it $35–$70 eachtypical
3	Vehicular Insulation NSN 2540-01-481-9178 · P/N 12460407-1 INSULATION,THERMAL Fits: All A2 models, plus M1123	1	We can source it $30–$55 eachtypical
4	Linear Microcircuit NSN 5962-01-430-0182 · P/N 16197350 MICROCIRCUIT,LINEAR 1995 Fits: All A2 models, plus M1123	1	We can source it quote only $235.05 per eachgov't list price
4	Linear Microcircuit NSN 5962-01-430-0208 · P/N 16229203 MICROCIRCUIT,LINEAR 1996 PART OF KIT P/N 57K3502 Fits: All A2 models, plus M1123	1	1 in stock quote only
4	Linear Microcircuit NSN 5962-01-440-0368 · P/N 16251210 MICROCIRCUIT,LINEAR 1997 PART OF KIT P/N 57K3523 Fits: All A2 models, plus M1123	1	We can source it $150.75 per eachgov't list price
4	Linear Microcircuit NSN 5962-01-470-4619 · P/N 16266408 MICROCIRCUIT,LINEAR 1998 PART OF KIT P/N 57K3539 Fits: All A2 models, plus M1123	1	We can source it quote only $50–$85 eachtypical
4	Memory Microcircuit NSN 5962-01-476-7772 · P/N 9356973 MICROCIRCUIT,MEMORY 1999 PART OF KIT P/N 57K3549 Fits: All A2 models, plus M1123	1	We can source it quote only $50–$100 eachtypical
4	Memory Microcircuit NSN 5962-01-480-5247 · P/N 5715895 MICROCIRCUIT,MEMORY 2000 PART OF KIT P/N 57K3558 Fits: All A2 models, plus M1123	1	We can source it $149.33 per eachgov't list price
4	Electronic Components Assembly NSN 5998-01-497-1611 · P/N 5716028 MICROCIRCUIT,MEMORY 2001 PART OF KIT P/N 57K3569 Fits: All A2 models, plus M1123	1	We can source it quote only $95–$160 eachtypical
5	Tapping Screw NSN 5305-01-076-3150 · P/N MS51851-34 SCREW,TAPPING Fits: All A2 models, plus M1123	2	We can source it
6	Control Assembly NSN 5940-01-430-2764 · P/N 16196390 TERMINAL BOX MINUS E-PROM Fits: All A2 models, plus M1123	1	1 in stock $397.00 per eachgov't list price
7	Flat Washer NSN 5310-01-449-0628 · P/N MS51412-36 WASHER,FLAT Fits: All A2 models, plus M1123	4	We can source it
8	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 9/32-12 Fits: All A2 models, plus M1123	4	626 in stock
9	Machine Screw NSN 5305-00-984-6197 · P/N MS35206-249 SCREW,MACHINE .164-32 X 1.00 Fits: All A2 models, plus M1123	2	We can source it
10	Circuit Breaker NSN 5925-00-894-8015 · P/N AA55571/02-001 CIRCUIT BREAKER Fits: All A2 models, plus M1123	1	26 in stock $207.15 per eachgov't list price
11	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X .750 Fits: All A2 models, plus M1123	2	471 in stock
12	Solid State Relay NSN 5945-01-413-0886 · P/N 12460116 RELAY,SOLID STATE Fits: All A2 models, plus M1123	1	1 in stock $55–$95 eachtypical
13	Self-Locking Hexagon Nut NSN 5310-00-088-1251 · P/N M45913/1-4CG5C NUT,SELF-LOCKING,HE 1/4-20 Fits: All A2 models, plus M1123	2	1,902 in stock
14	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 9/32 Fits: All A2 models, plus M1123	2	2,325 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
