HMMWV Air Conditioner Lines and Fittings, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 492

Every part in figure 492 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 5217 Air Conditioning Components: 17 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

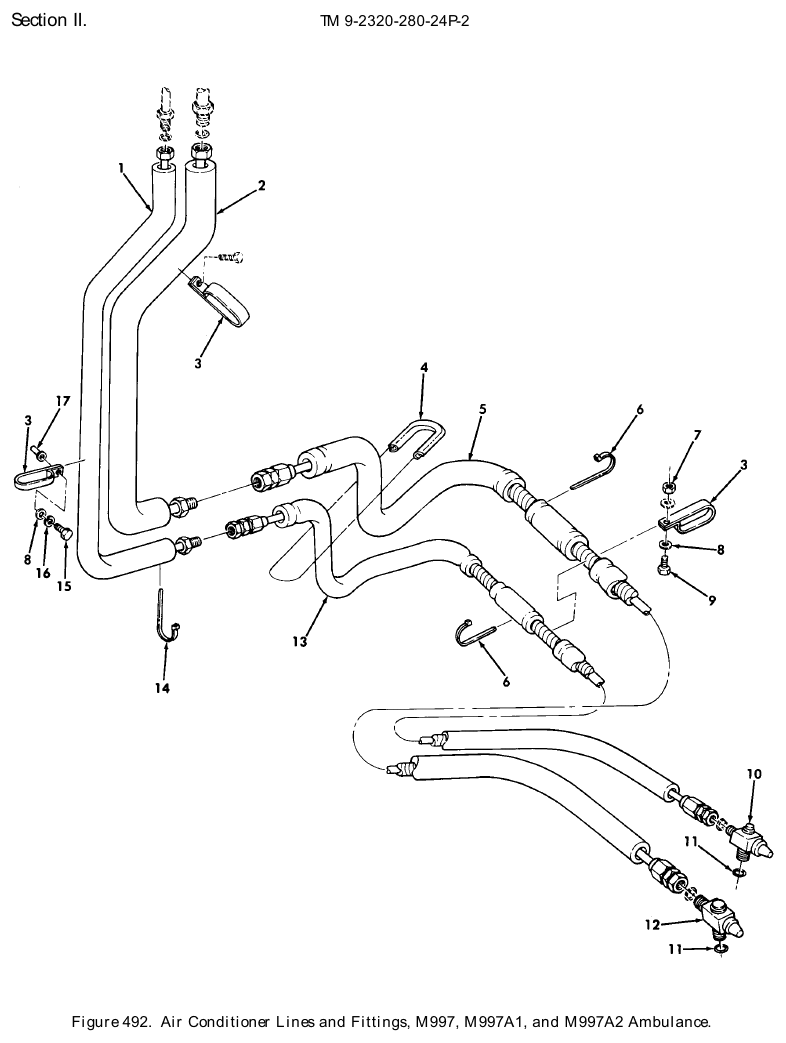

TM 9-2320-280-24P figure 492, Air Conditioner Lines and Fittings, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Metal Tube Assembly NSN 4710-01-265-3233 · P/N 5597935 TUBE ASSEMBLY,METAL Fits: M997, M997A1, M997A2	1	4 in stock $305.52 per assemblygov't list price
2	Metal Tube Assembly NSN 4710-01-265-3232 · P/N 5597929 TUBE ASSEMBLY,METAL Fits: M997, M997A1, M997A2	1	5 in stock $245.23 per assemblygov't list price
3	Loop Clamp NSN 5340-01-273-1721 · P/N 12341730 CLAMP,LOOP Fits: M997, M997A1, M997A2	3	222 in stock
13	Edge Protector NSN 5342-01-272-8391 · P/N 5597872 PROTECTOR,HANDLE ED Fits: M997, M997A1, M997A2	1	We can source it
5	Nonmetallic Hose Assembly NSN 4720-01-265-3224 · P/N 12341976 HOSE ASSEMBLY,NONME Fits: M997, M997A1, M997A2	1	4 in stock
6	Tie Down Electrical Compon Strap NSN 5975-00-111-3208 · P/N MS3367-5-9 STRAP,TIEDOWN,ELECT Fits: M997, M997A1, M997A2	2	94 in stock
7	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M997, M997A1, M997A2	1	626 in stock
8	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M997, M997A1, M997A2	2	2,325 in stock
9	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M997, M997A1, M997A2	1	471 in stock
10	Dis Valve Assembly NSN 4820-01-265-3156 · P/N 404187 VALVE ASSEMBLY,DIS Fits: M997, M997A1, M997A2	1	We can source it
11	O-Ring NSN 5330-01-265-8809 · P/N 5597916 O-RING Fits: M997, M997A1, M997A2	2	10 in stock
12	Suc Valve Assembly NSN 4820-01-265-3159 · P/N 404188 VALVE ASSEMBLY,SUC Fits: M997, M997A1, M997A2	1	2 in stock $50–$95 per assemblytypical
5	Nonmetallic Hose Assembly NSN 4720-01-265-3223 · P/N 5597876 HOSE ASSEMBLY,NONME Fits: M997, M997A1, M997A2	1	5 in stock $174.67 per assemblygov't list price
14	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT Fits: M997, M997A1, M997A2	3	198 in stock
15	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M997, M997A1, M997A2	2	559 in stock
16	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M997, M997A1, M997A2	2	4,285 in stock
17	Plain Blind Rivet Nut NSN 5310-01-093-3493 · P/N MS27130-31 NUT,PLAIN,BLIND RIV 1/4-20 Fits: M997, M997A1, M997A2	2	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
