HMMWV Air Conditioner Condenser and Evaporator Lines, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 493

Every part in figure 493 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 5217 Air Conditioning Components: 8 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

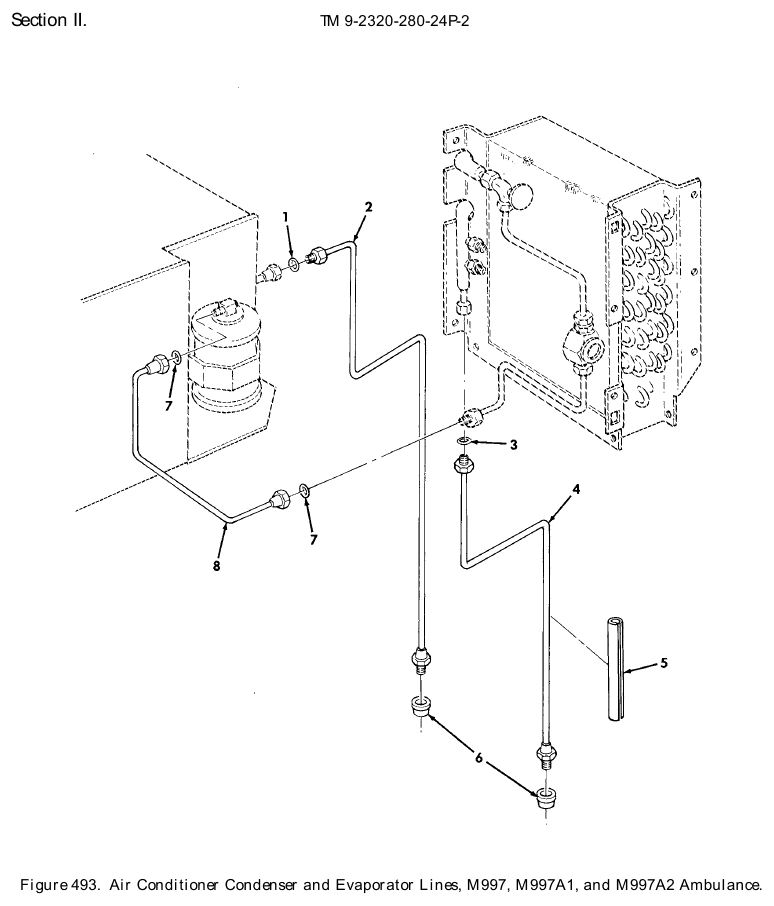

TM 9-2320-280-24P figure 493, Air Conditioner Condenser and Evaporator Lines, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	O-Ring NSN 5331-01-160-9857 · P/N 300442 O-RING Fits: M997, M997A1, M997A2	1	95 in stock
2	Metallic Tube and Fittings NSN 4710-01-265-3277 · P/N 405684 TUBE AND FITTINGS,M Fits: M997, M997A1, M997A2	1	We can source it $123.94 per assemblygov't list price
3	O-Ring NSN 5331-01-166-1712 · P/N 2-015C557-70 O-RING Fits: M997, M997A1, M997A2	1	We can source it
4	Metallic Tube and Fittings NSN 4710-01-265-3276 · P/N 405683 TUBE AND FITTINGS,M Fits: M997, M997A1, M997A2	1	15 in stock $253.20 per assemblygov't list price
5	Thermal Insulation Sleeving NSN 5640-01-288-5547 · P/N 300506-72.0 INSULATION SLEEVING Fits: M997, M997A1, M997A2	1	We can source it
6	Nonmetallic Grommet NSN 5325-01-289-7859 · P/N 2400 GROMMET,NONMETALLIC Fits: M997, M997A1, M997A2	2	1,268 in stock
7	O-Ring NSN 5331-01-061-3000 · P/N 300448 O-RING Fits: M997, M997A1, M997A2	2	We can source it
8	Metal Tube Assembly NSN 4710-01-265-3230 · P/N 405682 TUBE ASSEMBLY,METAL Fits: M997, M997A1, M997A2	1	1 in stock $127.52 per assemblygov't list price
